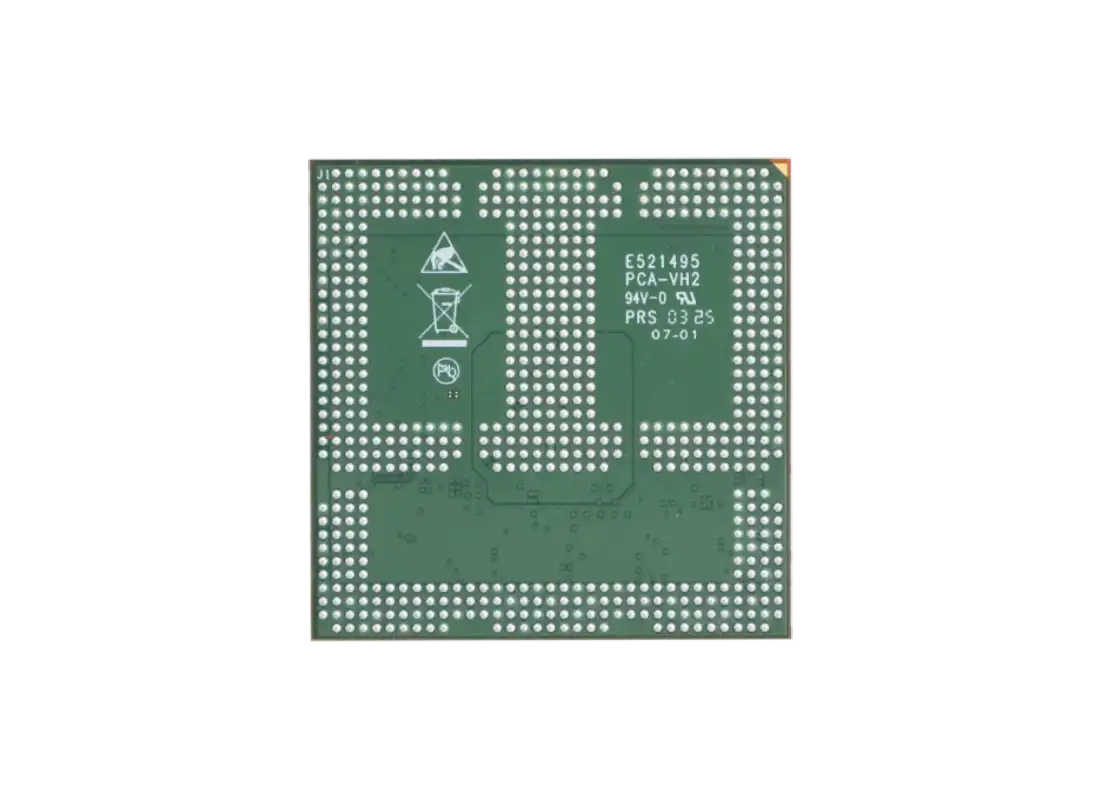

MediaTek Genio 1200 OSM System on Module
MediaTek Genio 1200 OSM System on Module
-
- MediaTek Genio 1200 SoC with integrated NPU
- Quad-core Arm® Cortex-A78 & Arm Cortex-A55 processors
- Up to 16GB LPDDR4X
- Up to 128GB eMMC Flash
- 1 x 1Gbps Ethernet
- Form Factor: 45mm x 45mm
Documents
| Features | Details |
|---|---|
| CPU | MT8395 – Quad-core Arm® Cortex-A78 processor, Quad-core Arm Cortex-A55 processor |
| Memory | LPDDR4X – Up to 16GB |
| OSM LGA Features | RGMII x 1, PCIe3.0 x 1 (2 lane) |
| OS Support | Linux 5.15.47 |
| General Features |
|
- 1000/100/10 Mbps Ethernet Jack
- USB Type-C Connector x 1
- USB 2.0 OTG (microAB Receptacle Connector) x 1
- USB 3.0 x2 (Dual-stack Type-A Connector)
- USB2.0 Header x 1
- Micro SD Connector x 1
- M.2 Key-B Connector x 1
- HDMI TX Connector x 1
- 4 lane MIPI DSI display connector x 1
- 4 lane MIPI CSI Camera Connector x 1
- Debug UART Header x 1
- Audio In & Out Jack through I2S Codec x 1
- Speaker Header
- RS232 Header x 1
