ZU49/ZU39/ZU29DR RFSoC System on Module

  • ZynqTM UltraScale+TM RFSoC family with FFVF1760 Package
  • Compatible with ZU49/ZU39/ZU29DR devices
  • 8GB DDR4 RAM for PS with ECC & 8GB DDR4 RAM for PL
  • 32GB eMMC Flash Expandable up to 128GB
  • 16 ADC Channels support up to 2.5Gsps
  • 16 DAC Channels support up to 10Gsps

Documents

Document

Document

Design Support

Design Support

Design Support

  • Specification
  • Development Kit
  • Thermal & Mechanical
  • Custom Design
FeaturesDetails
CPU

RFSoC ZU49/ZU39/ZU29DR
Processing System (PS)

    • Quad Arm Cortex-A53 @1.3GHz,
    • Dual Cortex-R5F @533MHz

Programming Logic (PL)

    • Up to 930 Logic cells & 425K LUTs
    • PL GTY High Speed Transceivers x 16 @28.21 Gbps
Memory

8GB DDR4 RAM for PS with ECC
8GB DDR4 RAM for PL

Storage

32GB eMMC Flash Expandable up to 128GB

Board to Board Connector1 Interfaces (400pin)

ADC: 16 x ADC Channels up to 2.5Gsps
DAC: 16 x DAC Channels up to 10Gsps
PL Ios: PL IOs – 188 IOs

    • HP Bank IOs – up to 70LVDS/140SE
    • HD Bank IOs – up to 24LVDS/48SE
Board to Board Connector2 Interfaces (400pin)

From PL Block

    • 16 x PL-GTY High Speed Transceivers (up to 28.21Gbps)
    • PL Control Signal

From PS Block

    • Gigabit Ethernet x 1 Port (through On-SOM Gigabit Ethernet PHY)
    • USB 2.0 OTG x 1 (through On-SOM USB2.0 transceiver)
    • SPI/QSPI X 1 Port (Optional)
    • CAN x 1, I2C x 2, SD x 1
    • Debug UART x 1, Data UART x 1
    • PS JTAG
    • RGMII Interface or ULPI Interface x 1
    • PS -GTR High speed Transceivers x 4 (upto 6Gbps)
    • PS-Control Signals
    • SYSMON(Optional)

Clock signals

    • 10MHz Clock IN
    • 1 PPS IN
    • 10 MHz Clock out
    • 1 PPS Clock Out
    • Synthesized Clock out from Clock synthesizer
General Features
  • Power Input: 12V through B2B Connector2
  • Form Factor: 100mm x 90mm (BRYN)
  • BSP Support: Linux BSP: Petalinux/vivad 2022.1
  • Operating Temperature: -40°C to +85°C (Industrial Grade)
  • Environment Specification: REACH & RoHS3 Compliant
  • Compliance: CE*

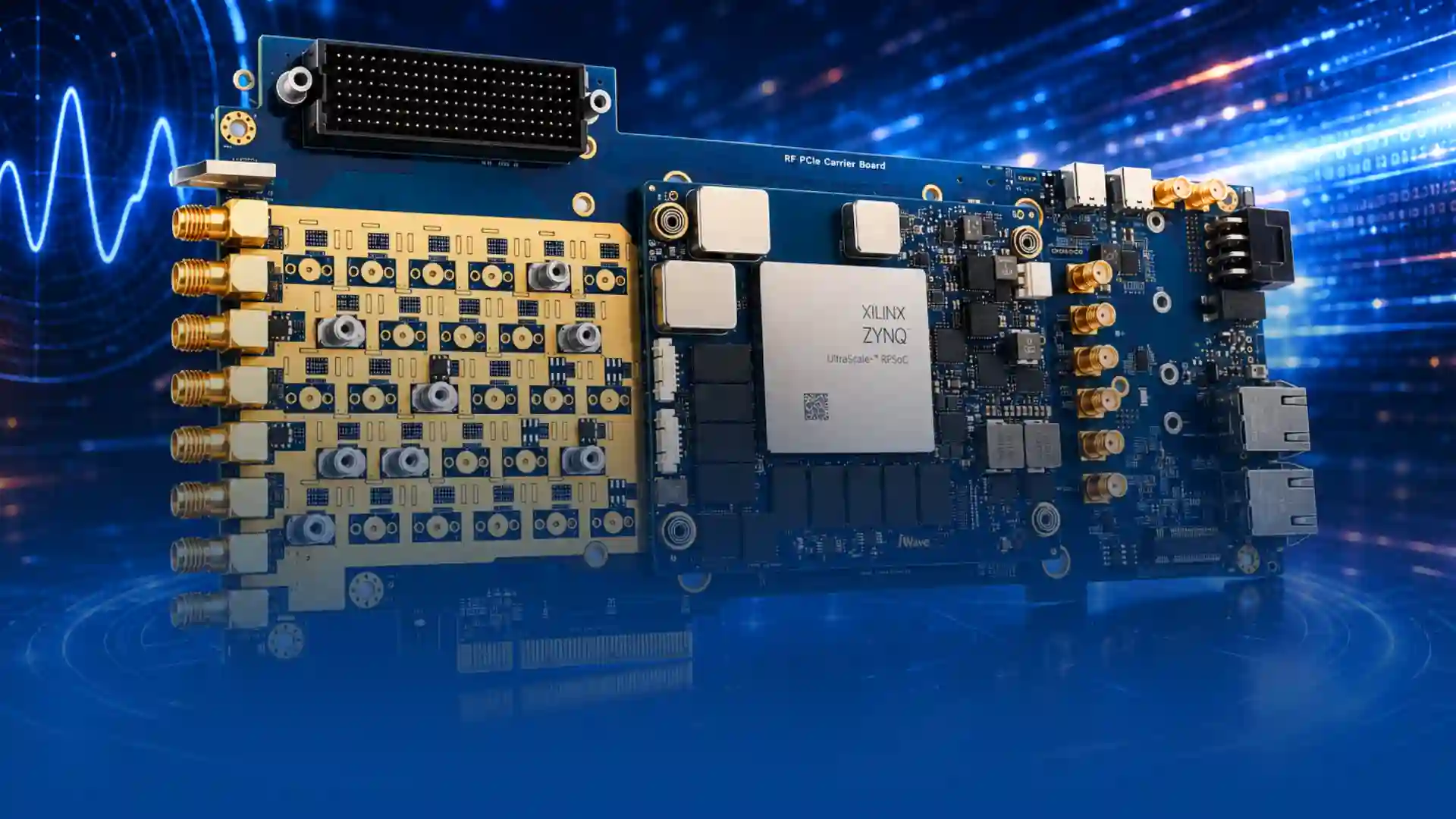

RF DAC/ADC Specifications:

  • 8 RF RT SMA connectors with Balun(BW-800MHz-1GHz)
  • 8 RF ST SMA connectors with Balun(BW-800MHz-1GHz)
  • 8RF ST SMA connectors with Balun(BW-700MHz-1.6GHz)
  • 8 RF ST SMA connectors with Balun(BW-10MHz-3GHz)

High Speed and Interface Specifications:

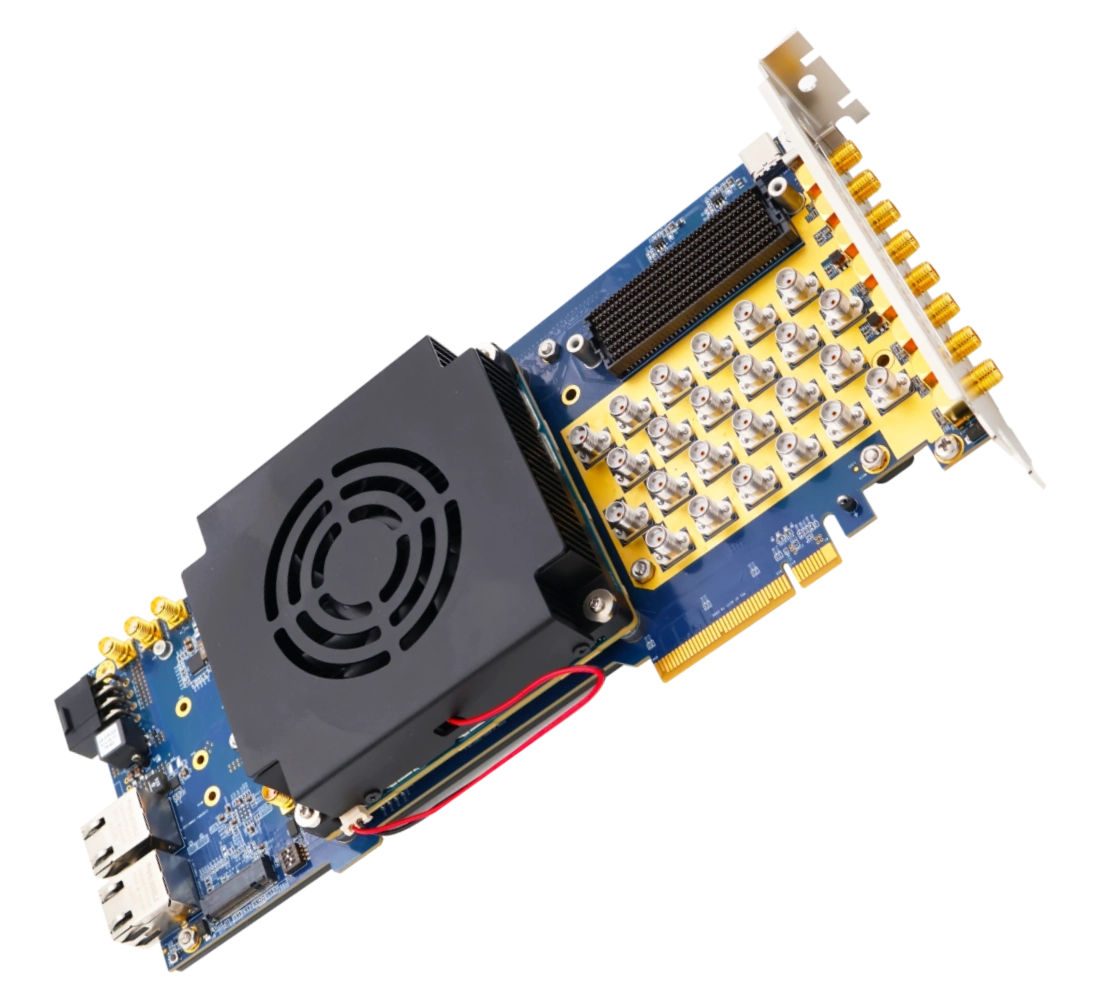

  • PCIe Gen3 x8 Edge Connector.
  • FMC+ High Pin count(HPC) connector
  • 4 SMA Straight angled connector for Clocks(10Mhz, 1PPS, SYS-CLK IN/Out)
  • NVMe PCIe Gen2 x2 M.2 Connector
  • Gigabit Ethernet through RJ45MagJack
  • Debug & DATA UART/JTAG through Type-C Connector
  • Operating Temperature: 30°C to +85°C
  • Form Factor: 254mm x 111.15mm (3/4 Length PCIe Card)

Thermal design is a crucial factor for highly integrated System on Modules. iWave offers Heat Spreader and Fan Sink solutions for RFSoC-based SoMs to ensure optimal thermal management.

Versal AI Edge

To power AI applications from the edge to the endpoint.

Versal AI Edge

To power AI applications from the edge to the endpoint.

Versal AI Edge

To power AI applications from the edge to the endpoint.

Versal AI Edge

To power AI applications from the edge to the endpoint.
Product Design Process banner image

Product Design Process

Our design process transforms your vision into reality with innovation, quality, and collaboration.

Certification & Qualification banner image

Certification & Qualification

Ensuring Compliance, Quality, and Trust Through Certification & Qualification.



Product Lifecycle Management banner image

Product Lifecycle Management

Ensuring Longevity, Reliability, and Seamless Product Evolution.

Mechanical Services Banner image

Mechanical Services

Precision Engineering for Reliable, High-Performance Mechanical Solutions.

Related Products

Versal AI Edge

Versal AI Edge

Versal AI Edge

  • Video
  • News
  • Case Studies
Multi-Board Synchronization on RFSoC Board and Systems Article Banner image

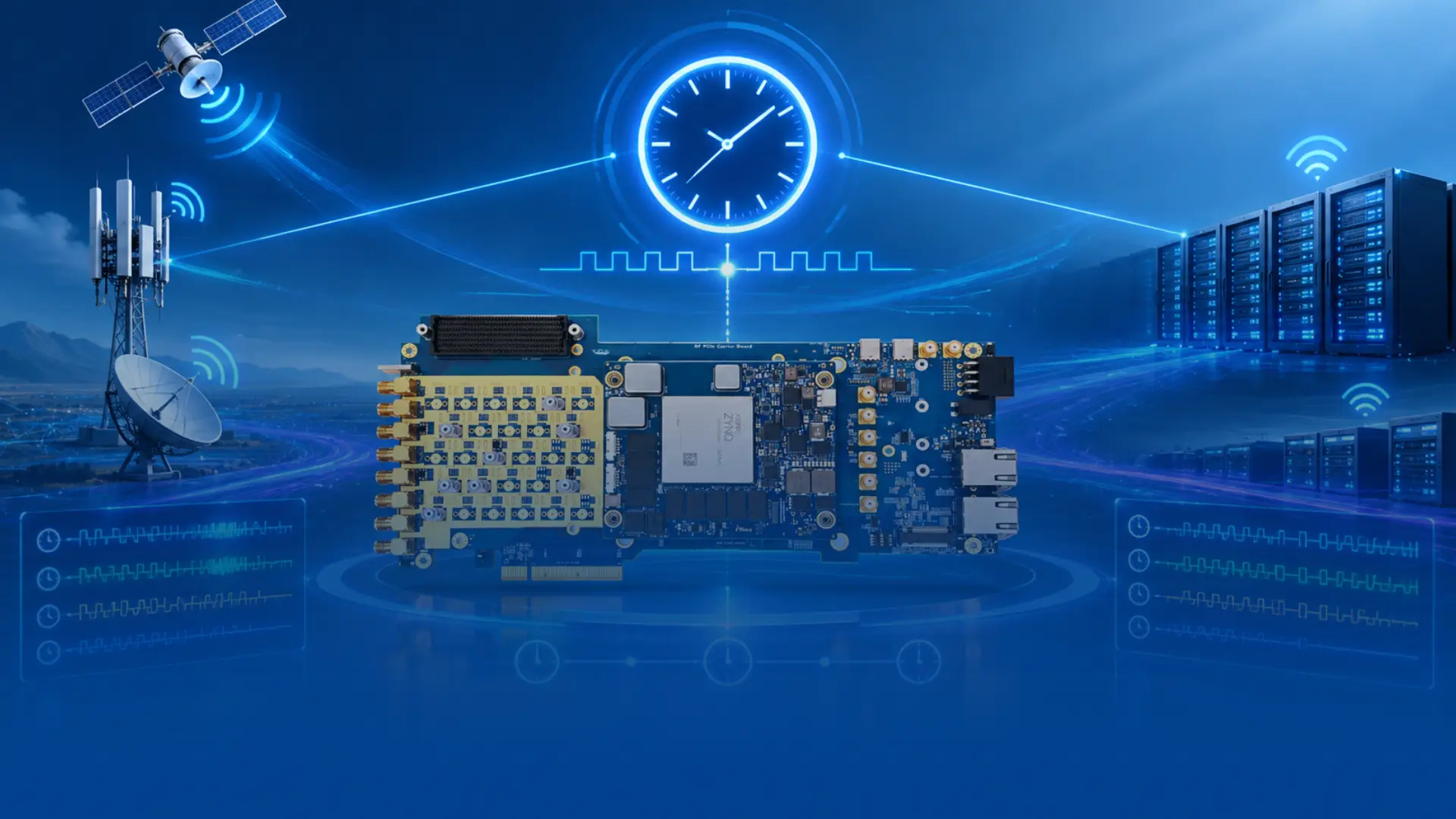

Multi-Board Synchronization on RFSoC Board and Systems
