Modern SATCOM and aerospace systems demand extreme levels of real-time signal processing, wideband RF performance, and low-latency compute capabilities all within compact, rugged, and power-efficient platforms. Traditional FPGA or CPU-based architectures often struggle to meet these requirements due to large form factors, high power consumption, and the need for multiple discrete components.
AMD’s Zynq™ UltraScale+™ RFSoC devices address these challenges through an innovative architecture that integrates multi-GSPS ADCs, DACs, DSP engines, an ARM-based processing subsystem, and programmable logic into a single monolithic SoC. This level of integration significantly simplifies RF system design while enabling next-generation SATCOM, radar, and aerospace applications to achieve unmatched levels of performance and SWaP-C optimization.

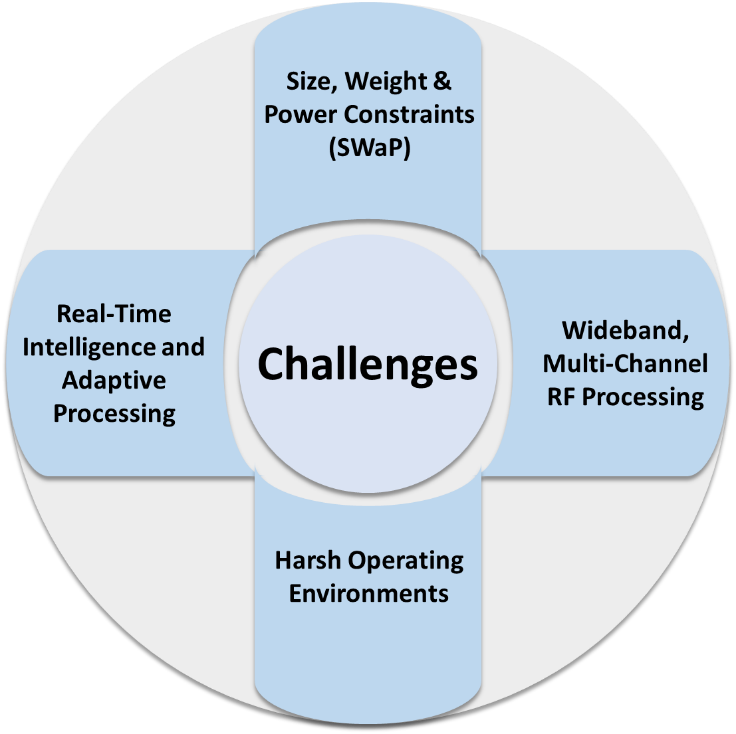

Industry Challenges in SATCOM and Aerospace
SATCOM terminals, airborne platforms, and spaceborne systems encounter a unique set of operational challenges:
- Size, Weight & Power Constraints (SWaP): Airborne and satellite payloads must minimize weight and volume without compromising performance. Conventional multi-board RF chains are not viable in compact environments.
- Wideband, Multi-Channel RF Processing: Applications such as phased-array antennas, satellite modems, and radar systems demand:
- Multi-GHz sampling rates
- High dynamic range
- Multi-channel synchronized RF paths
Meeting these needs with discrete converters and FPGAs increases system complexity.
- Harsh Operating Environments: Aerospace electronics must withstand –
- Extreme temperature ranges
- Shock and vibration
- Radiation exposure (in certain orbits)
Designing RF systems that sustain high performance in these conditions remains a major challenge.
- Real-Time Intelligence and Adaptive Processing: SATCOM ground stations, UAV payloads, and radar systems increasingly require –
- Adaptive beamforming
- Real-time interference mitigation
- Onboard AI for signal classification
- High-throughput data pipelines
Traditional architectures struggle to deliver this capability at low latency.
Application-Specific RFSoC Requirements for SATCOM & Aerospace
SATCOM and aerospace platforms operate under some of the strictest design envelopes in the embedded industry, which directly shapes the expectations from an RFSoC-based compute solution. Beyond high RF performance, these systems demand a level of robustness, miniaturization, and efficiency that conventional FPGA or RF transceiver architectures struggle to meet.
For airborne and space-constrained payloads, the size, weight, and power (SWaP) envelope becomes the primary design driver. RFSoCs uniquely address this by integrating multi-GSPS ADCs, DACs, DSP engines, and FPGA fabric into a single silicon device, dramatically reducing the PCB footprint and eliminating the need for discrete RF signal chains. This consolidation allows engineers to design high-performance RF platforms that stay within the tight SWaP budgets of satellites, UAVs, aircraft pods, and portable ground terminals.
Thermal resilience and power efficiency also play a critical role in mission performance. SATCOM terminals operating in enclosed radomes or avionics systems mounted near heat-dense payload racks require compute platforms that can sustain continuous high-throughput RF processing without throttling. RFSoC platforms with optimized power management and conduction-cooled or ruggedized form factors enable these deployments to maintain deterministic, real-time behaviour irrespective of environmental stress.
Another defining requirement is synchronization accuracy. Applications such as beamforming, spectrum monitoring, phased-array antennas, and multi-band transceivers demand nanosecond-level phase alignment and tight clocking distribution across multiple modules. RFSoC devices with integrated JESD204B/C interfaces, tunable PLLs, and multi-tile synchronization capabilities provide the timing determinism needed for coherent signal acquisition and distributed RF processing in advanced aerospace and SATCOM systems.
Security and standards compliance further influence system design. Aerospace-grade platforms must adhere to secure boot, hardware root of trust, and data-protection practices, while SATCOM ground and on-orbit systems must also meet RF emission and waveform compliance guidelines. The heterogeneous compute architecture of RFSoC combining programmable logic, ARM processing subsystems, and integrated RF blocks allows system developers to implement secure, software-defined, and adaptable RF pipelines that can evolve with mission requirements.

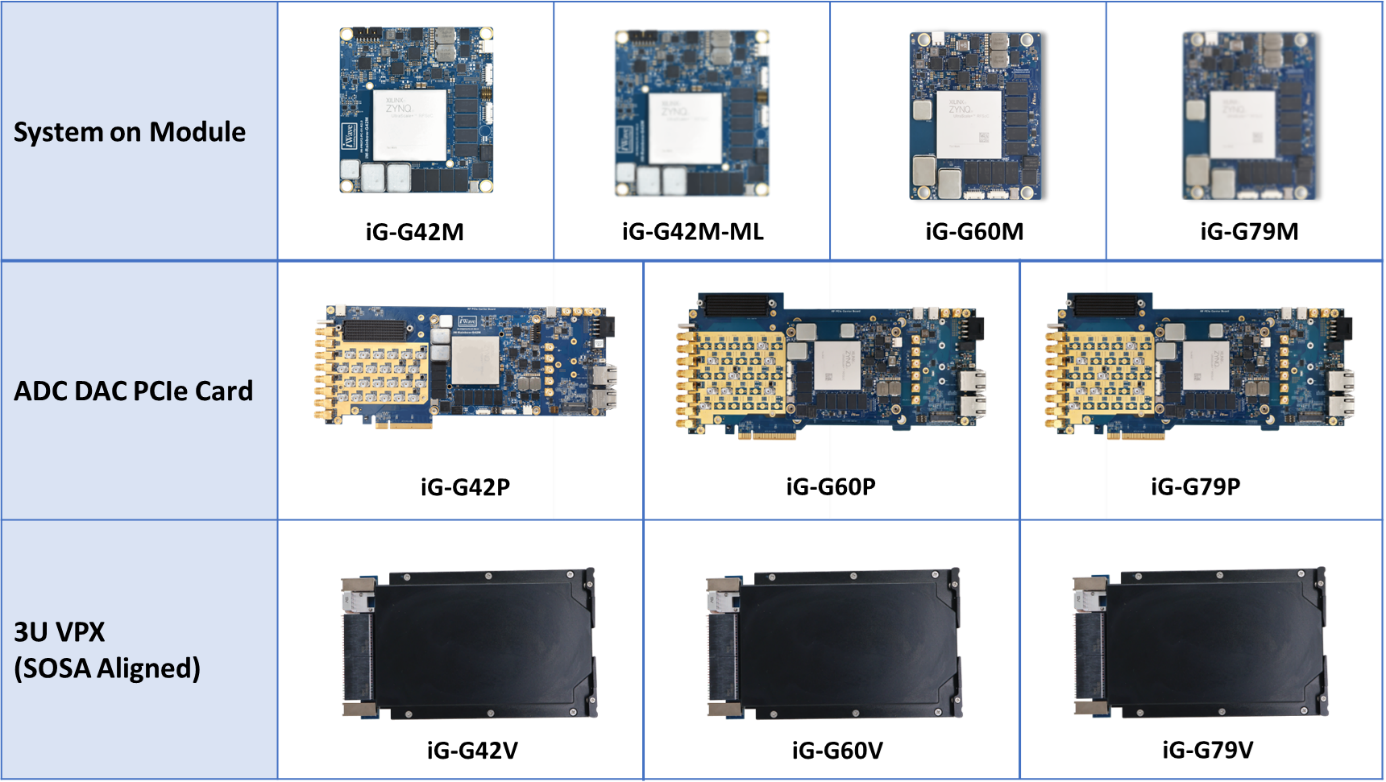

iWave’s RFSoC Portfolio for SATCOM & Aerospace
iWave offers one of the industry’s most comprehensive RFSoC platforms, designed in multiple form factors to support a wide range of deployment needs:
iWave’s RFSoC-based SoMs, VPX cards, and PCIe solutions provide a complete portfolio that addresses the stringent SWaP, performance, and reliability needs of SATCOM and aerospace applications enabling OEMs to design faster, deploy quicker, and scale efficiently across mission-critical environments.
This breadth enables customers to scale designs from prototyping to full aerospace-grade deployment seamlessly.
As SATCOM and aerospace systems evolve toward higher bandwidth, lower latency, and more intelligent RF signal processing, RFSoC platforms emerge as a game-changing technology. Their integrated converters, advanced FPGA fabric, and compact architecture make them the ideal choice for modern RF workloads where traditional architectures fall short.
