Zynq™ UltraScale+™ ZU5/ZU4/ZU3T/ZU3/ZU2/ZU1 MPSoC System on Module
iG-G36M®
- Zynq™ UltraScale+™ ZU5/4/3T/3/2/1 with SFVC784 Package
- PL 16 bit, 2GB PL DDR4 RAM, PS 64bit, 4GB PS DDR4 RAM (Upgradable)
- 16GB eMMC Flash, 256MB QSPI Flash
- Up to 256.2K Logic cells & 117.12K LUTs
- 4 High-Speed GTH Transceiver lanes (Up to 12.5Gb/s)
- 4 x PS GTR Transceivers
Documents
Documents
Design Support

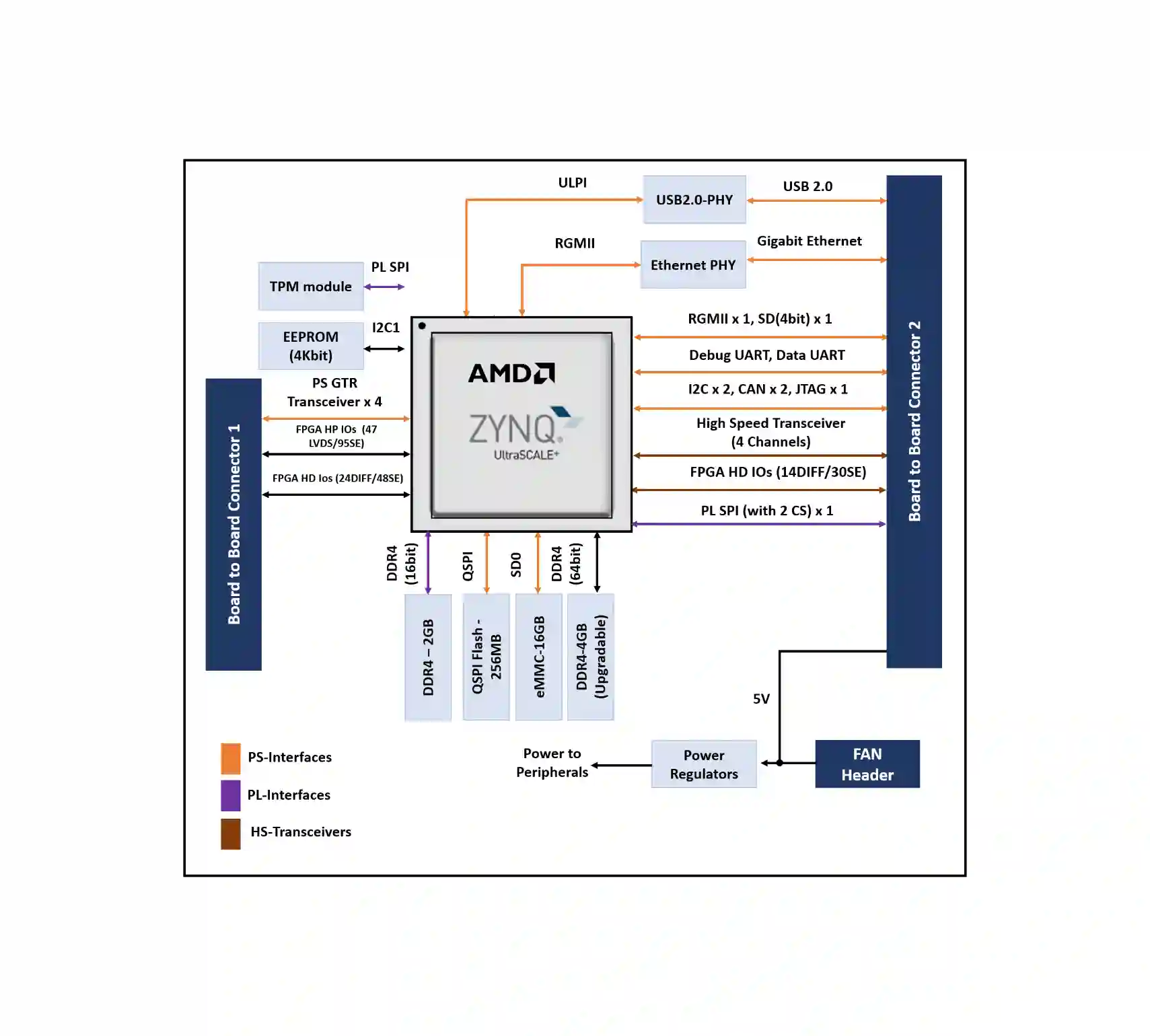

| Features | Details |
|---|---|
| ZU5/ZU4/ZU3T/ZU3/ZU2/ZU1 – ZynqTM Ultrascale+TM MPSoC | Processing System (PS/Processor)
Programming Logic (PL/FPGA)
|
| RAM Memory | Processing System (PS):
Programmable Logic (PL/FPGA):
|
| On Board Flash |
|
| 240pin High-Speed Board to Board Connector 1 Interfaces | From PS Block:
From PL/FPGA Block:
|
| 240pin High-Speed Board to Board Connector 2 Interfaces | From PS Block
From PL Block
|
| Other On-Board Features |
|
| General Features |
|
Notes:*Under Progress
1 2 PL IOs can be used as PL PCIe reset functionality or PL DIFF/SE in Board-to-board connector.
2 CAN0 is available when feedback clock functionality in QSPI Flash is not using.
- FMC+ High Serial Pin Count (HSPC) Connector
- Debug UART and JTAG through USB Type-C
- Dual 1GBE Ethernet through RJ45
- USB2.0 OTG interface through USB Type-C Connector
- PCIe x1/x2/x4 Gen2 Connector
- USB 3.0 Connector
- DP & M.2 SATA Connector
- Micro SD & PMOD Connector
- RTC Coin Cell Holder
- Header for UART, CAN, SPI and GPIOs
- Form Factor: 120mm x 120mm
Thermal design is crucial for highly integrated System on Modules. iWave offers a Fan Sink for MPSoC-based SoMs to ensure efficient cooling.
FAQs
An MPSoC SoM provides a proven and reliable design with optimized signal integrity, DDR tuning, and power sequencing. It reduces development cost and risk while helping accelerate time to market.
Yes. MPSoC SOMs are designed to scale across different performance levels, allowing developers to choose devices within the Zynq UltraScale+ MPSoC family (from ZU1 to ZU19) based on their application needs. This makes it easier to upgrade or adapt designs without major hardware changes.
For long-term use, SoMs from iWave are supported throughout their lifecycle, ensuring availability, reliability, and ongoing support. This helps avoid supply chain issues and keeps production stable.
- Heterogeneous Compute in One Chip
- Real-Time High Performance on the Same Platform
- High-Speed Connectivity & Deterministic I/O
- Lower System Cost & Power Consumption
- Flexibility & Future-Proofing Through Programmable Logic
- Scalable for Multiple Use Cases
Yes. With scalable MIPI CSI-2 support, MPSoC SOMs can handle multiple cameras, making them suitable for vision and imaging systems.
MPSoC SOMs support a wide range of high-speed interfaces, including:
- PCIe, USB, and Ethernet
- QSPI, eMMC, SRAM, and EEPROM
- LVDS for high-speed data transfer
- MIPI CSI-2 for camera and vision applications
