Versal™ Prime Gen2
3U VPX Plug-in Module (Switch Profile)
iG-G77V®
- SOSA aligned Versal™ Prime Gen2 3U VPX board
- Compatible with 2VM3858/3654/3558 Devices with SSVA2112 package
- Four 32-bit, 4GB LPDDR5x
- Supports SOSA Aligned Switch profiles
- IPMC with Arm® 32-bit Cortex®-M0+ CPU
- ADC x4 & DAC x4 with sampling rate up to 1.6GSPS
Documents
| Features | Details |
|---|---|
| SoC | Versal Prime Gen2 Compatible with 2VM3858/3654/3558 Devices 8x Arm Cortex- A78AE and 10x Cortex R52 Up to 1188K Logic cells and 543K LUTs |
| Memory & Storage | 32bit, 4GB LPDDR5x from PS (Upgradable) Three 32bit, 4GB LPDDR5x from PL (Upgradable) 256MB OSPI Flash and 32GB eMMC Flash |
| IPMC | Arm® 32-bit Cortex®-M0+ CPU up to 80 MHz On chip 64KB of flash and 4KB of SRAM One 12-bit 1.68-MSPS analog-to-digital converter (ADC) |
| VPX Front Panel features | Gigabit Ethernet Header USB3.0 Type-C 3-pin Debug UART Header Display Port ADC x4 & DAC x4; Sampling rate up to 1.6GSPS |
| VPX On board features | On Board Clock Generators Temperature Sensor x1 Elapse Counter x1 EEPROM x1 |
| 3U VPX Backplane: Connector – P0 |
Utility Plane
|
| 3U VPX Backplane: Connector – P1A +P1B |
Data Switch Port-01
Data Plane Port-01
Data Plane Port-03
System Control Signals (Maskable Reset, SysCON, GDiscrete) |
| 3U VPX Backplane: Connector – P2A |
Control Plane Port
Control Plane Port
Maintenance Port MP02 |
| 3U VPX Backplane: Aperture Pattern J – P2B |
MT Ferrule Module – MM12F – 12 Fibre ports |
| Profile Specification | Profile: SLT3-SWH-4F1U7U1J-14.8.7-1 Module Profile as per AMPS:
|
| General Specification | Slot Pitch: 1 inch Conduction Cooled BSP Support: Linux Environment Specification: RoHS & REACH Compliant |

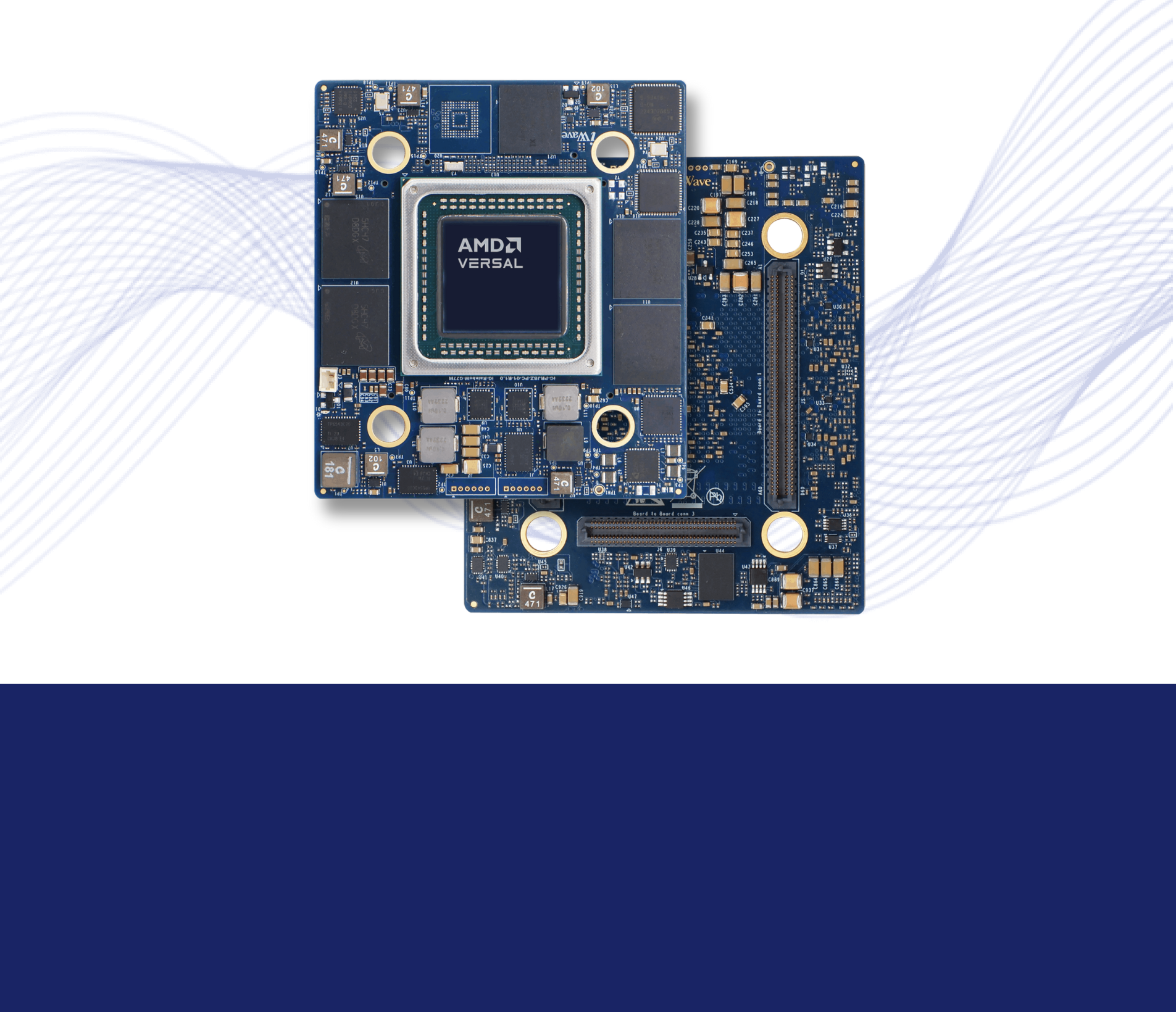

For any highly integrated System on Modules, thermal design is very important factor. iWave Supports Fan Sink solution for Versal Prime Gen2 SOM
