Kintex™-7 3U VPX Plug-in Module

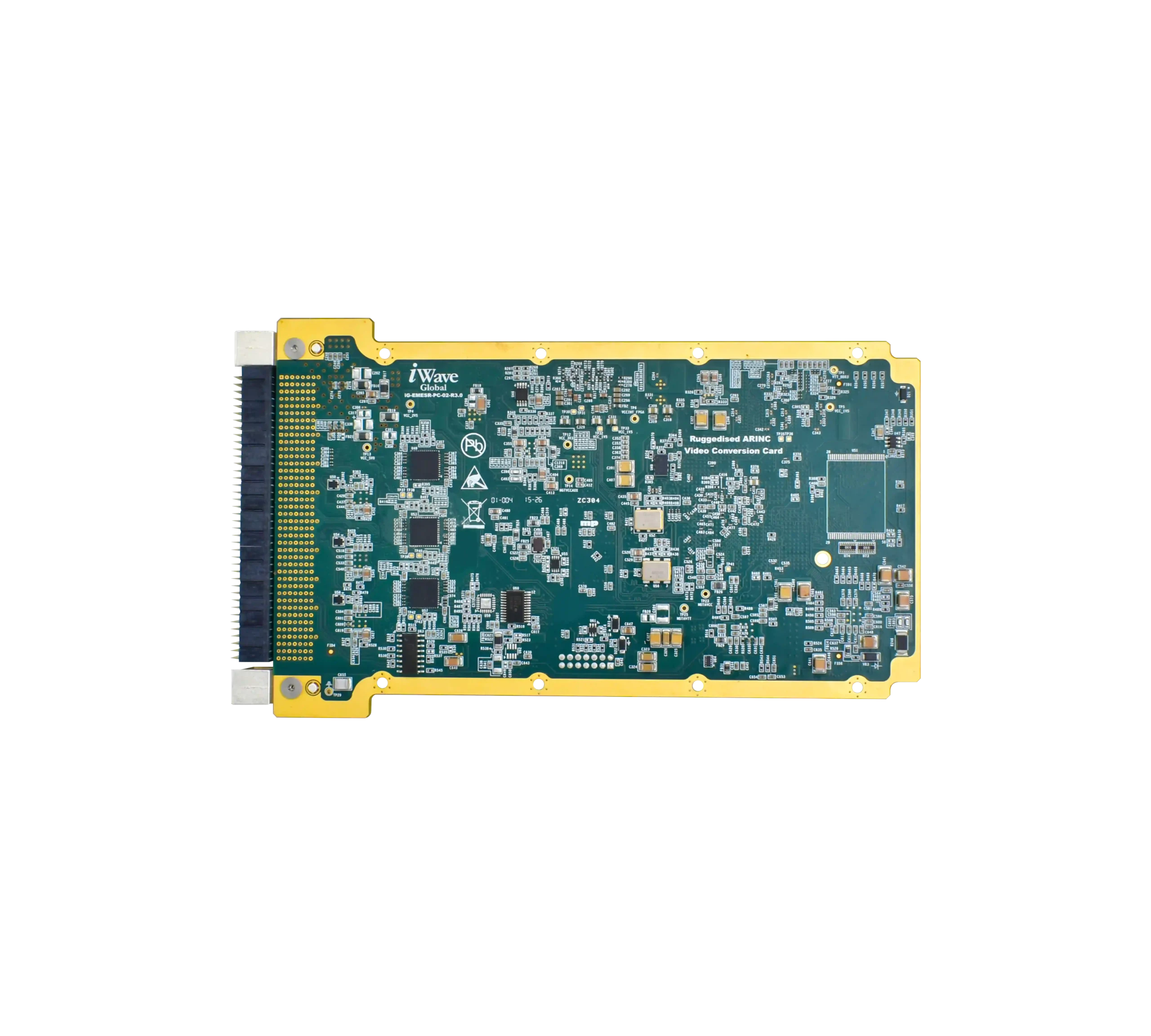

iWave 3U VPX High-Speed Video/Data Processing Card is a rugged standalone module in the 3U VPX form factor, aimed for the high-speed data, video processing, and display applications is ideal for military, defence and aerospace applications requiring an optimal balance of performance and power efficiency. iWave 3U VPX High-Speed Video/Data Processing Card is implemented using Xilinx Kintex-7 device architecture and has I/O interfaces including High speed 16 channels of transceiver interfaces capable of operating up to 6 Gbps data rate, Gigabit Ethernet, RS232, RS422, PCIe interface, Built-in health monitoring circuits, HDMI input, and output interfaces.
CONTACT SALES
Documents
Documents
| Features | Details |
|---|---|
| Specifications | FPGA Xilinx Kintex 7 4Gb 32-Bit DDR3 SDRAM 128 Mb Serial Peripheral Interface (SPI) Flash Optional 1Gb Peripheral Interface (BPI) Flash Health Monitoring built-in test circuitry (P -bit, I-bit, C-bit) Watchdog Monitor Temperature Sensor Real-Time Counter 16 pairs High-speed transceiver channels operating speed up to 6 Gbps |

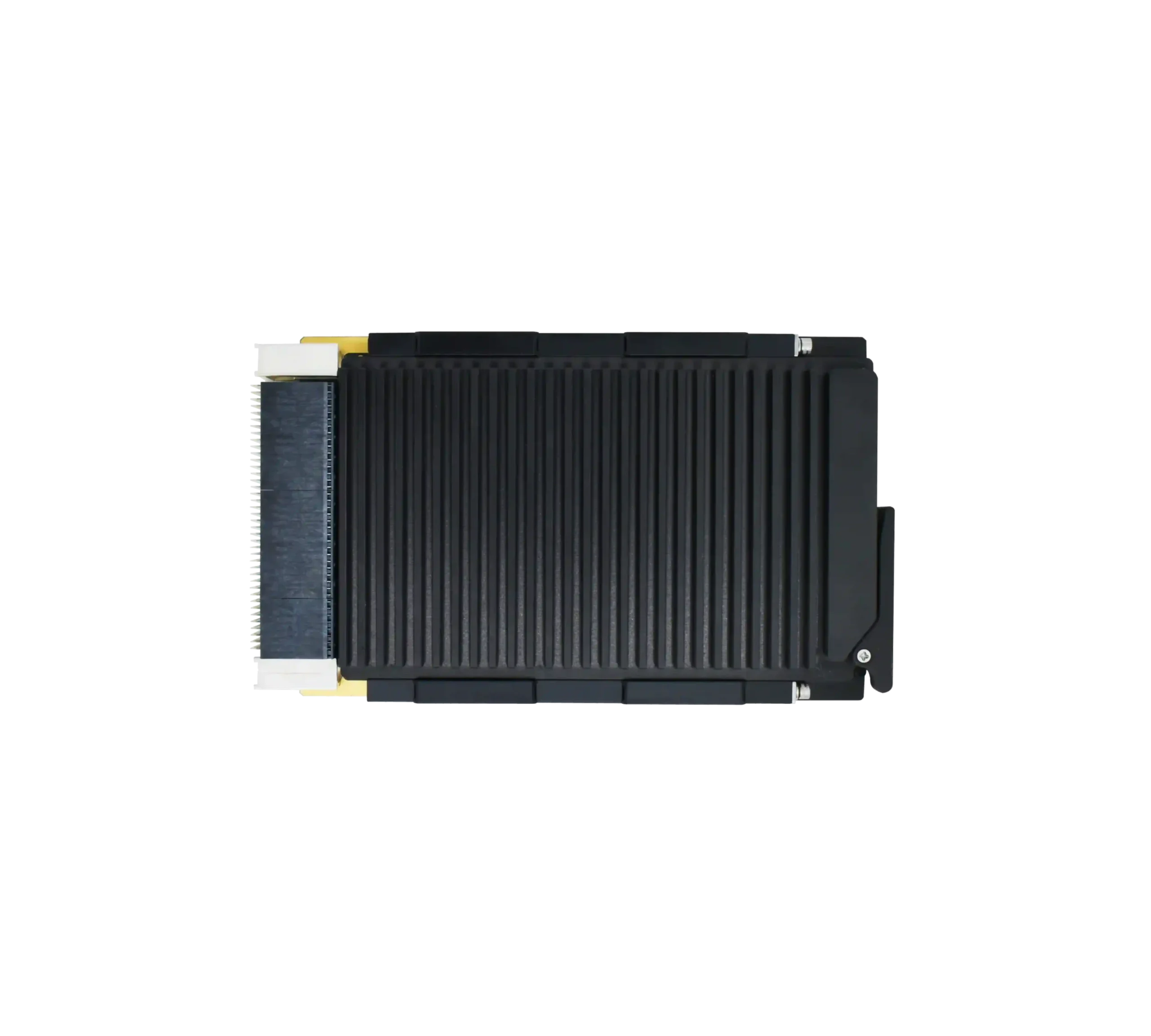

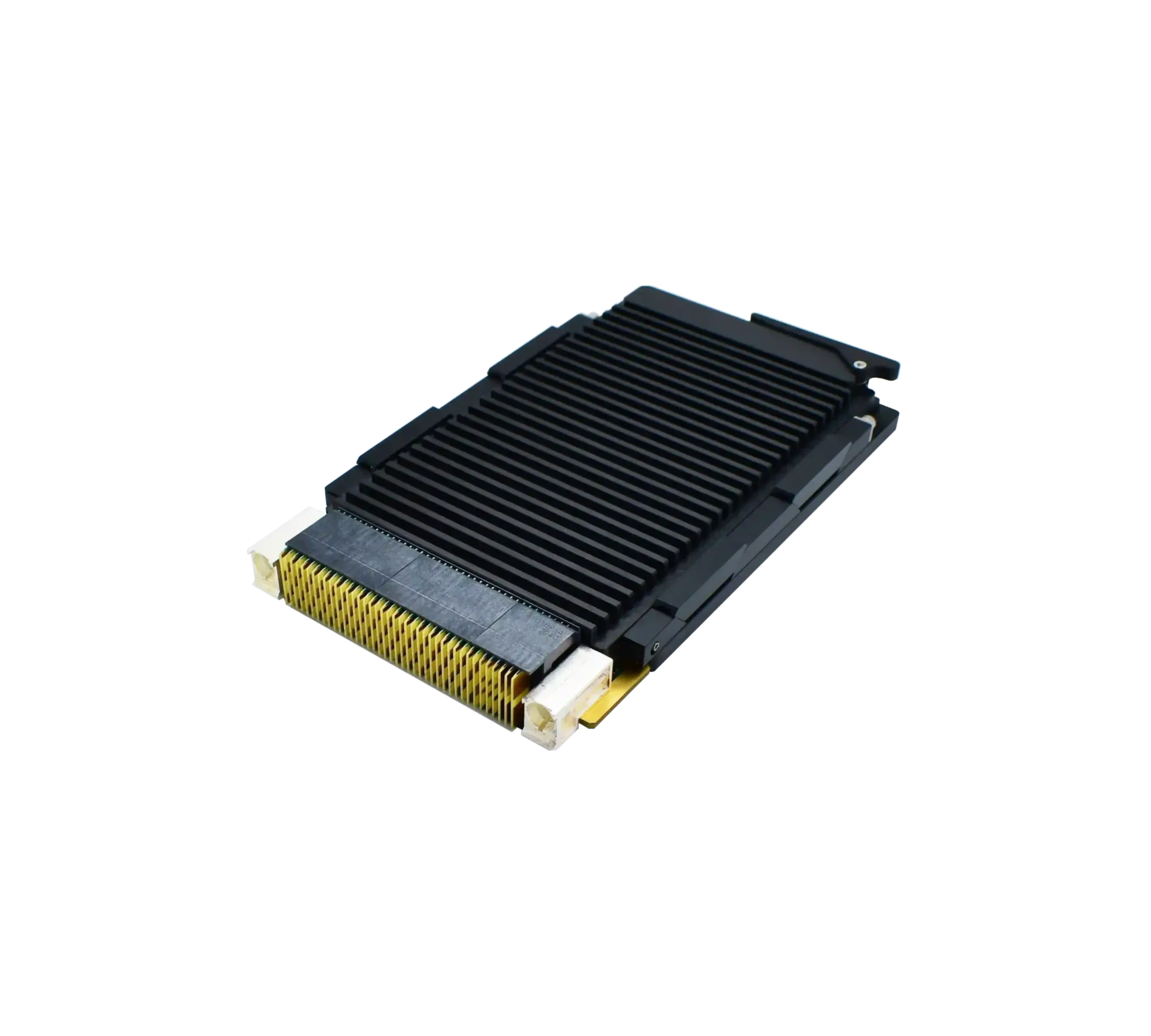

| Highlights | Rugged Military Grade 3U VPX Single-Slot card as per VITA 46.0 Standard PCIe Gen2 up to x8 lane VITA 46.4 Backplane Compliance Conduction cooled heat spreader for heat transfer to the unit level Module communication with the main processing unit via PCIe/RS422/ SPI/RS232/Ethernet Power consumption <15W and supplied from the backplane |
| Interfaces | HDMI 1.4a Input HDMI 1.4a Output 1 Gigabit Ethernet JTAG Connector RS232 RS422 SPI and I2C JTAG Header TTL input and output |
| General Features | 100mm x 160mm (as per 3U form factor VITA46.0 and VITA46.4 standard) Industrial Grade (-40 to 85 degree Celsius) |
| Target Applications | Avionics, High-Speed Video Applications, Military Ships, Radar Systems, HUD Displays |
| The card can perform High-speed transceiver-based protocols | ARINC818 Video Analysing over Copper and Fibre ARINC818 Video switching over Copper and Fibre High-Speed Data Communication using Serial FPDP (sFPDP) VITA 17.1, Aurora 8B/10B High-Speed Data Acquisition using LVDS/JESD204B Protocol 12G-SDI Interface HDMI 2.0 4K Interface High-Speed Video Processing & Conversion |
