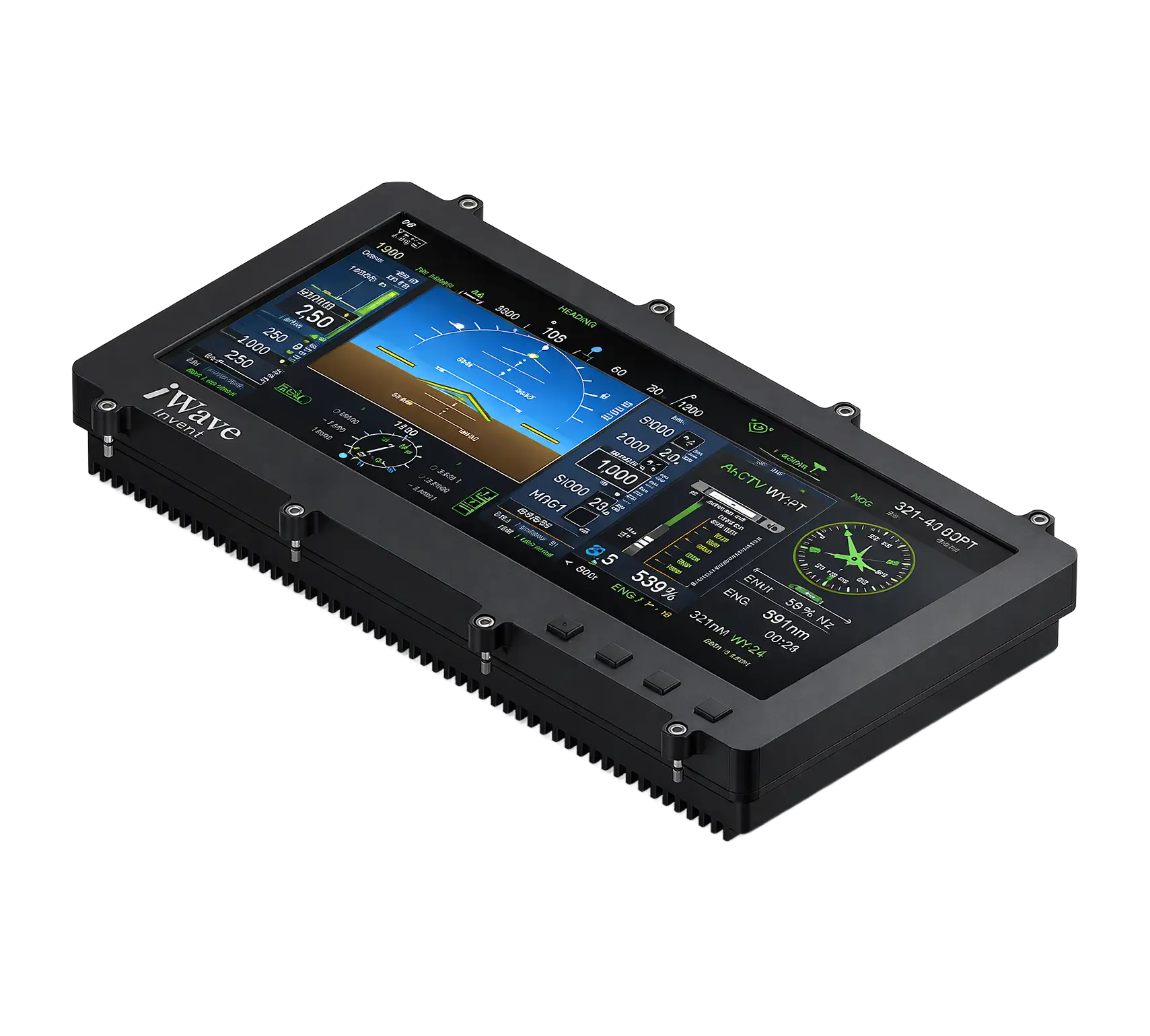

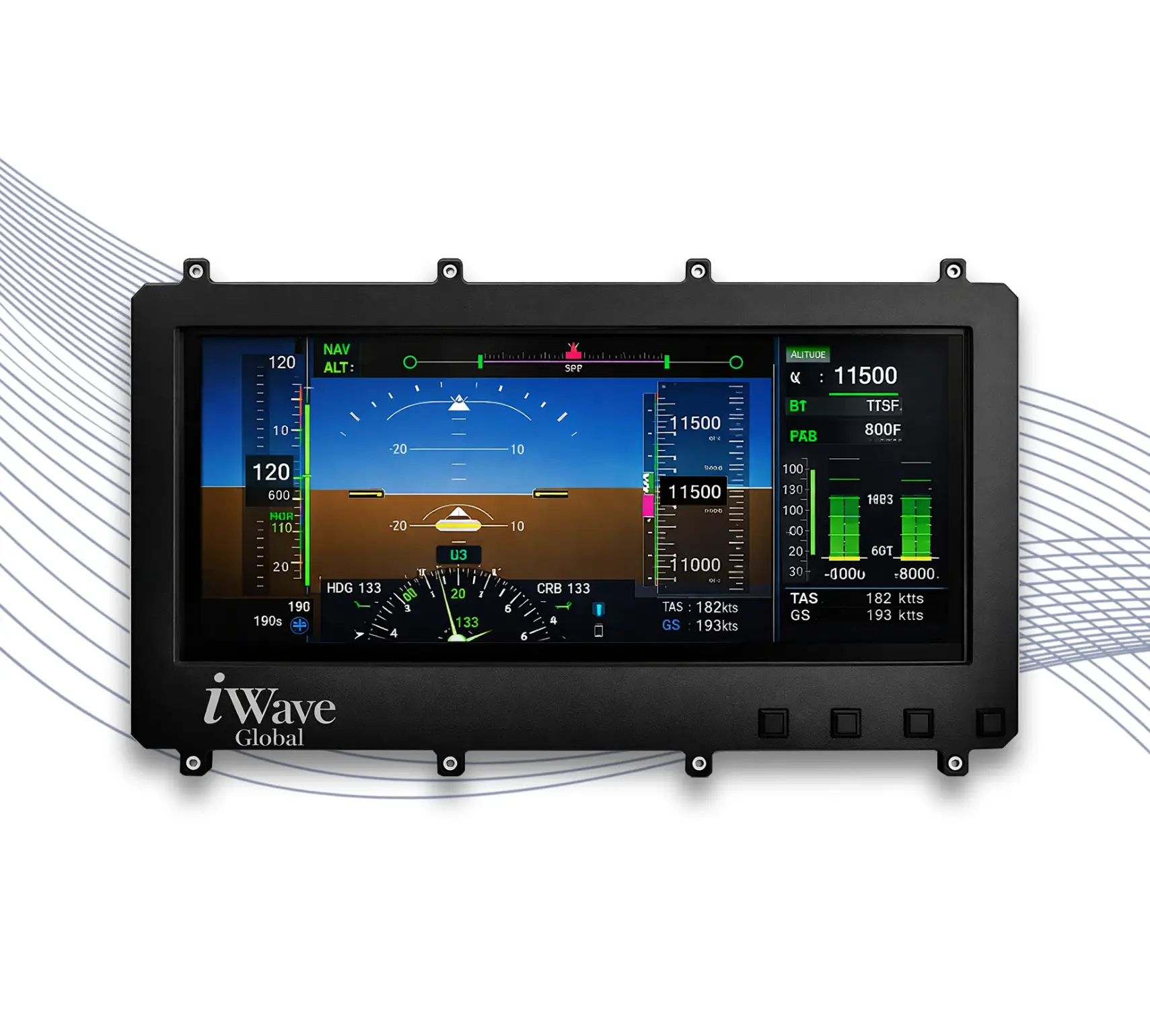

| Hardware Specification |
- 2 x SFP Connector for ARINC 818 Optical or 75-ohm Copper i/f for ARINC818 input and output channel.
- 1 x Ethernet Connector for ARINC 664 Interface.
- 2 x SMPTE 292/424 Connector
- 1 x ARINC 429 Connector
- 1 x DP Connector
- 2 x HDMI or 2 x DVI Connector
- 1 x USB 3.0 Connector
- 1 x RS-422/485 Connector
- 1 x RS-232 Connector
|
| Interface Specification |
Video Interface
- 2 x ARINC 818-2 with data rates ranging up to 10 Gbps.
- 2 x SMPTE 292/424 which supports up to 1080i and 1080p respectively.
- 2 x HDMI Input or 2 x DVI Video Input which supports up to
- Full HD and 2K respectively.
- Display Port which supports up to 4K.
Serial Interface
- 8 Tx and Rx ARINC 429 for transfer of avionics data.
- RS-422/485 for control.
- RS-232 for maintenance, debugging and configuration.
- ARINC 664 external link for transfer of data in high speed through ethernet.
- USB 3.0 for accessing memory.
|
| Software Feature |
- Compatible with Linux operating system using V4L2 framework driver
- Supports video node detection for automatic Video Device recognition for applications like VLC media, OBS studios and more.
- Supports Application like Gstreamer and FFmpeg.
- ARINC 818 receiver data capture from the PCIe card to the host PC.
- Automatic detection of ARINC 818 video resolution and frame rate on the host.
- Dynamic ARINC 818 transmitter configurations with standard or custom resolution based on ICD.
- Dynamic ARINC 818 transceiver link rate control from the host PC.
- Configurable ARINC 818 transmitter settings, including resolution,
frame rate, pixel clock, sync timings, front and back porch, color format, and SOF class.
- Support for real-time video data streaming from the host PC to the ARINC 818 transmitter.
|
| Functional Specification |
- ARINC 818 Interface with configurable line rates up to 10Gbps to transfer video data with standard/custom resolutions up to 2k@60fps subjected to link rate. It also supports frame rates of 25, 30, 50 and 60fps.
- ARINC 429 Interface with configurable data rates of 12.5 Kbps or 100 Kbps with even or odd parity for the transfer of avionics data in 32-bit ARINC 429 Word format.

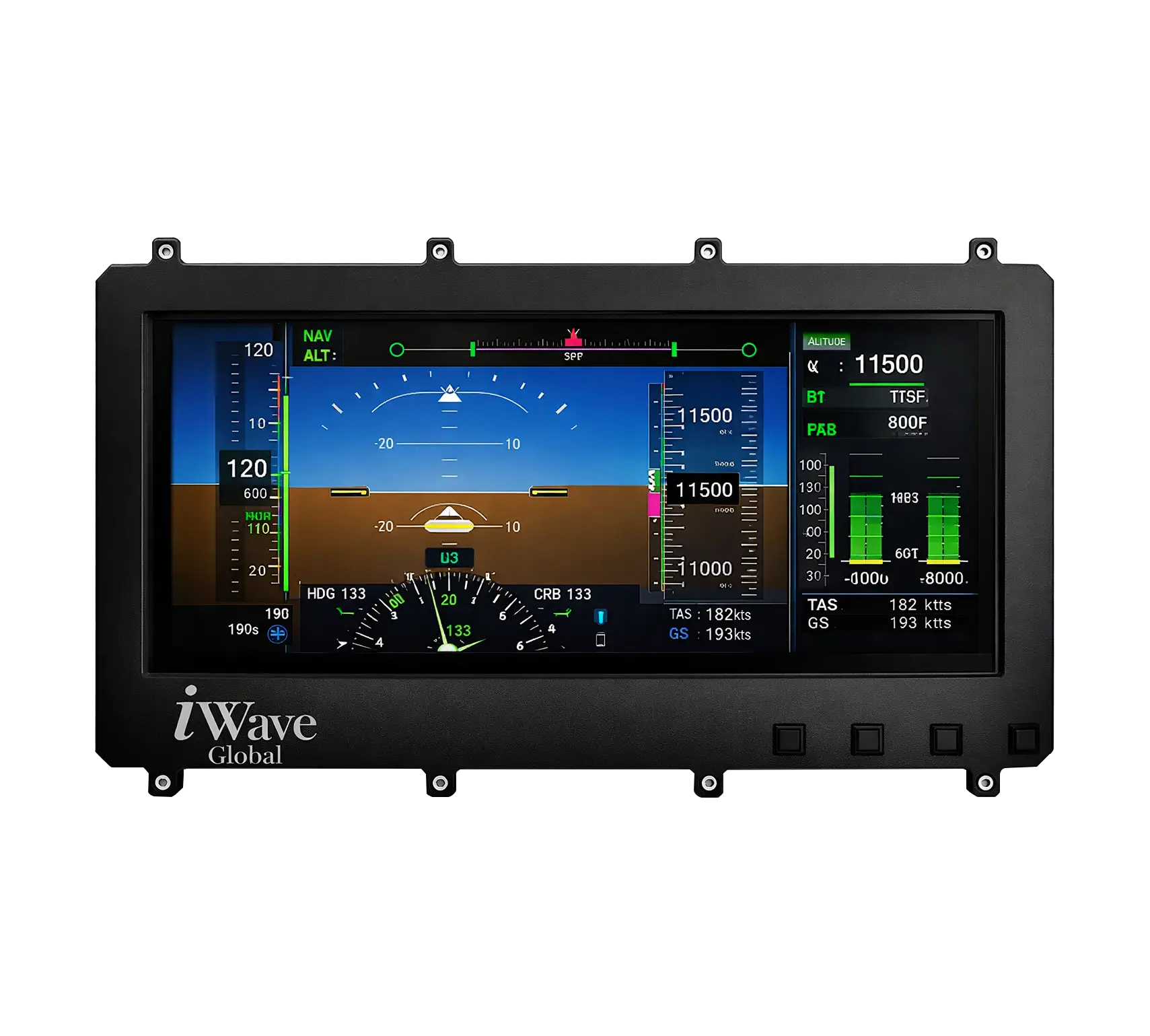

- Display resolution fixed to 2560×1024 color pixels with 8-bit color depth with touch screen interface.
- Viewable area of 20” Horizontal & 8” Vertical & Diagonal 21.5’’.
- Viewing angle with horizontal ±30⁰ and vertical ±40⁰.
- Luminance characteristics with Day Mode, ABC Mode, Night Mode, NVIS Mode, Luminance Uniformity and Contrast Ratio.
- In built memory storage for maps and pre-flight data management for mission-critical applications.
- Designed for low power consumption to meet avionics system power budget constraints.
|
| Highlights |
- Supports ARINC 818 Interface for Video Data Transfer.
- Supports wide range of standard avionics interfaces.
- Supports touch input.
- High brightness, contrast, and superior color rendering.
- Optimized high performance graphic and video processing.
- Compliant to MIL-STD-3009 type-2, Class-B/C and compatible with NVG gen III plus, or better goggle.
|
