ZU67/ZU65/ZU64/ZU63DR RFSoC System on Module
iG-G79M®
- Zynq™ Ultrascale™+ RFSoC family Compatible with ZU67/ZU65/ZU64/ZU63DR devices
- Up to 489K Logic cells & 223K LUTs
- ADC: 8 x ADC Channels up to 2.95 GSPS and 2 x ADC Channels up to 5.9 GSPS
- DAC: 8 x DAC Channels up to 10 GSPS
- PL GTY High Speed Transceivers x 8 @28.21 Gbps
- Integrated DFE IP Block
Documents

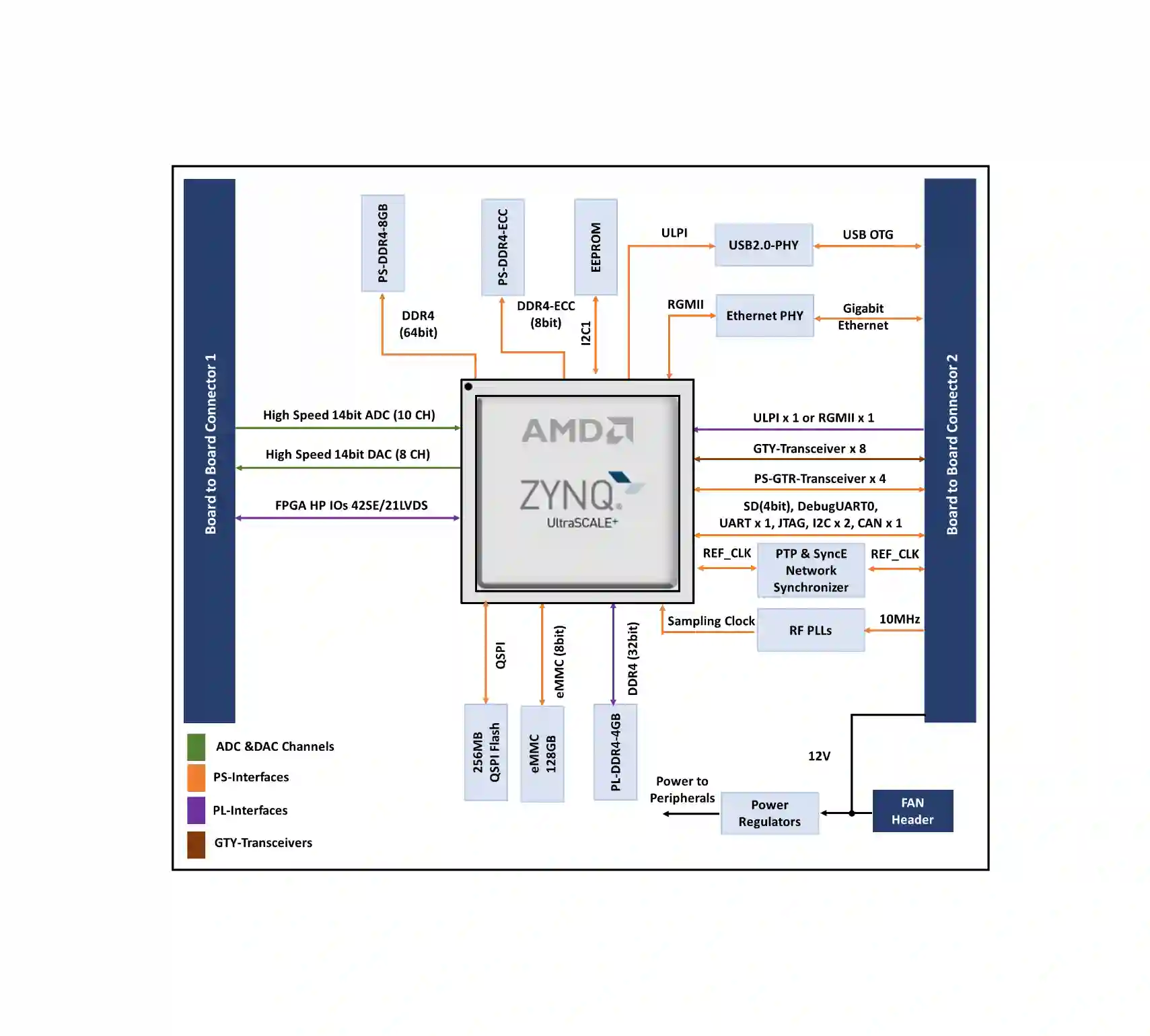

| Features | Details |
|---|---|
| SoC | RFSoC ZU67/ZU65/ZU64/ZU63DR (FFVE1156 Package) Processing System (PS)
Programming Logic (PL)
|
| Memory | 64bit, 8GB DDR4 RAM for PS with ECC 32bit, 4GB DDR4 RAM for PL |
| Storage | 32GB eMMC Flash Expandable up to 128GB 256MB QSPI Flash |
| Board to Board Connector1 Interfaces (400pin) | ADC: 8 x ADC Channels up to 2.95 GSPS and 2 x ADC Channels up to 5.9 GSPS DAC: 8 x DAC Channels up to 10 GSPS PL IOs: HP Bank IOs – Up to 21 LVDS/42 SE |
| Board to Board Connector2 Interfaces (400pin) | From PL Block
From PS Block
Clock signals
|
| Software Features | Yocto Linux BSP with Vivado support DMA/BRAM test apps PYNQ prototyping support Multi-tile sync & PCIe (XDMA) validated MATLAB support |
| General Features | Power Input: 12V through B2B Connector2 Form Factor: 82mm x 100mm (BRYNc) Operating Temperature: -40°C to +85°C (Industrial) Environment Specification: REACH & RoHS3 Compliant Compliance: CE* |
Thermal design is a crucial factor for highly integrated System on Modules. iWave offers Heat Spreader and Fan Sink solutions for RFSoC-based SoMs to ensure optimal thermal management.
FAQs
It supports up to 8 channels and 16 channels configurations, offering flexibility for high-performance ADC/DAC-intensive applications.
The System on Module supports high-speed interfaces including JESD204B/C, PCIe Gen3 x8, QSFP+/SFP+, DisplayPort, USB-C, and multiple Ethernet MACs (GEM0/GEM3).
Signal integrity is ensured through strict impedance-controlled PCB design and carefully routed high-speed signals. Robust multi-rail power is implemented using PMICs, discrete regulators, and LC filtering for clean and stable operation.
RFSoC SoM supports Yocto Linux and PYNQ BSPs.
Yes. Our software supports the RF data converters on RFSoC devices, compatible with widely used tools like Xilinx’s RF Analyzer, ensuring easy diagnostics and loopback testing.
