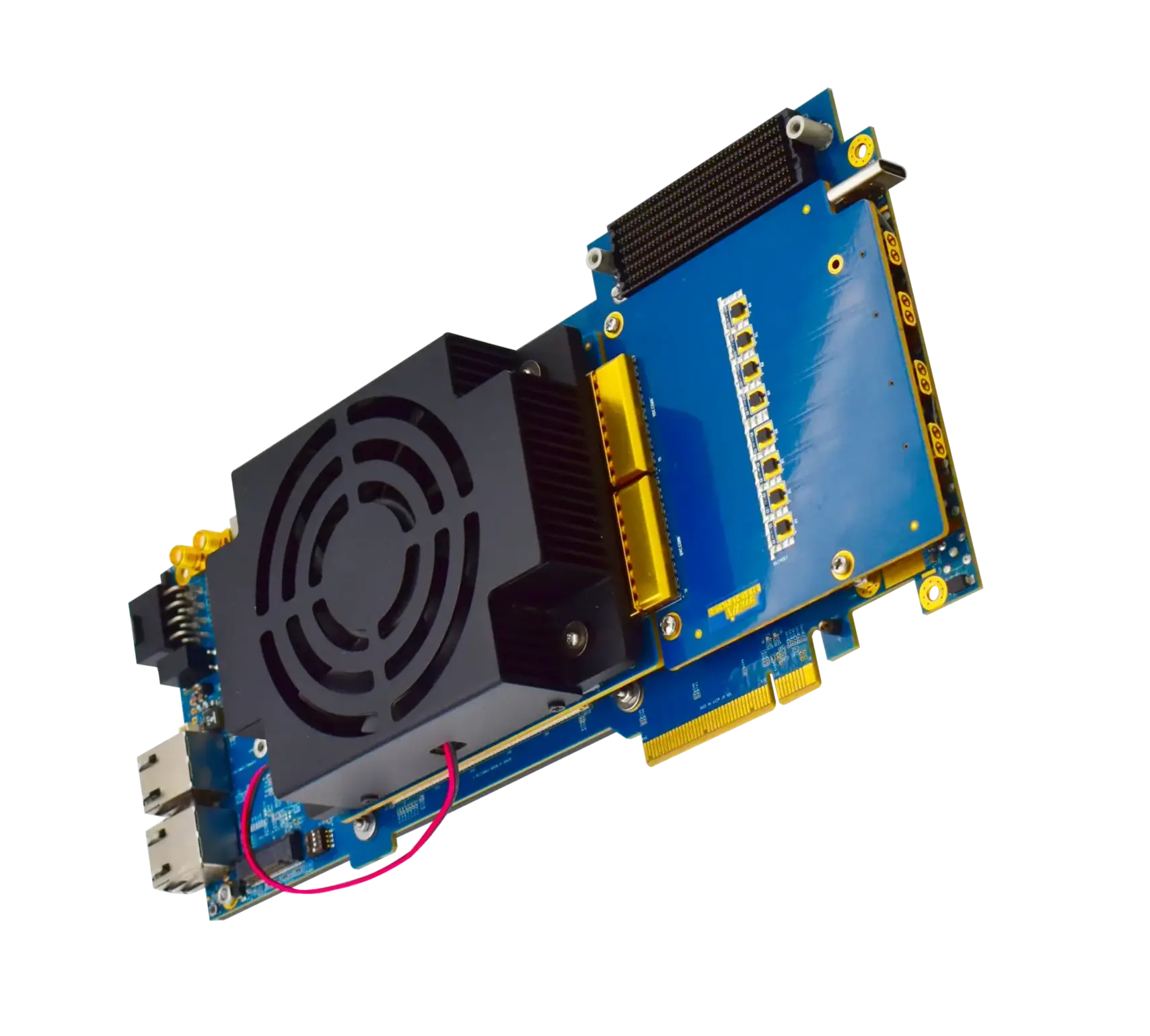

Agilex™ 9 R17B Direct RF
System on Module
iG-G67M®
- Agilex™ 9 SoC FPGA (AGRW014) in R17B package
- Up to 1,437,240 Logic elements
- 16 x FGT Transceivers up to 58Gbps PAM4
- 4× ADC and 4× DAC channels with sampling rates up to 64Gsps
- Quad-core 64-bit ARM® Cortex®-A53 up to 1.4GHz
- Form factor 82mm x 111mm with -40°C to +85°C (Industrial)
Documents

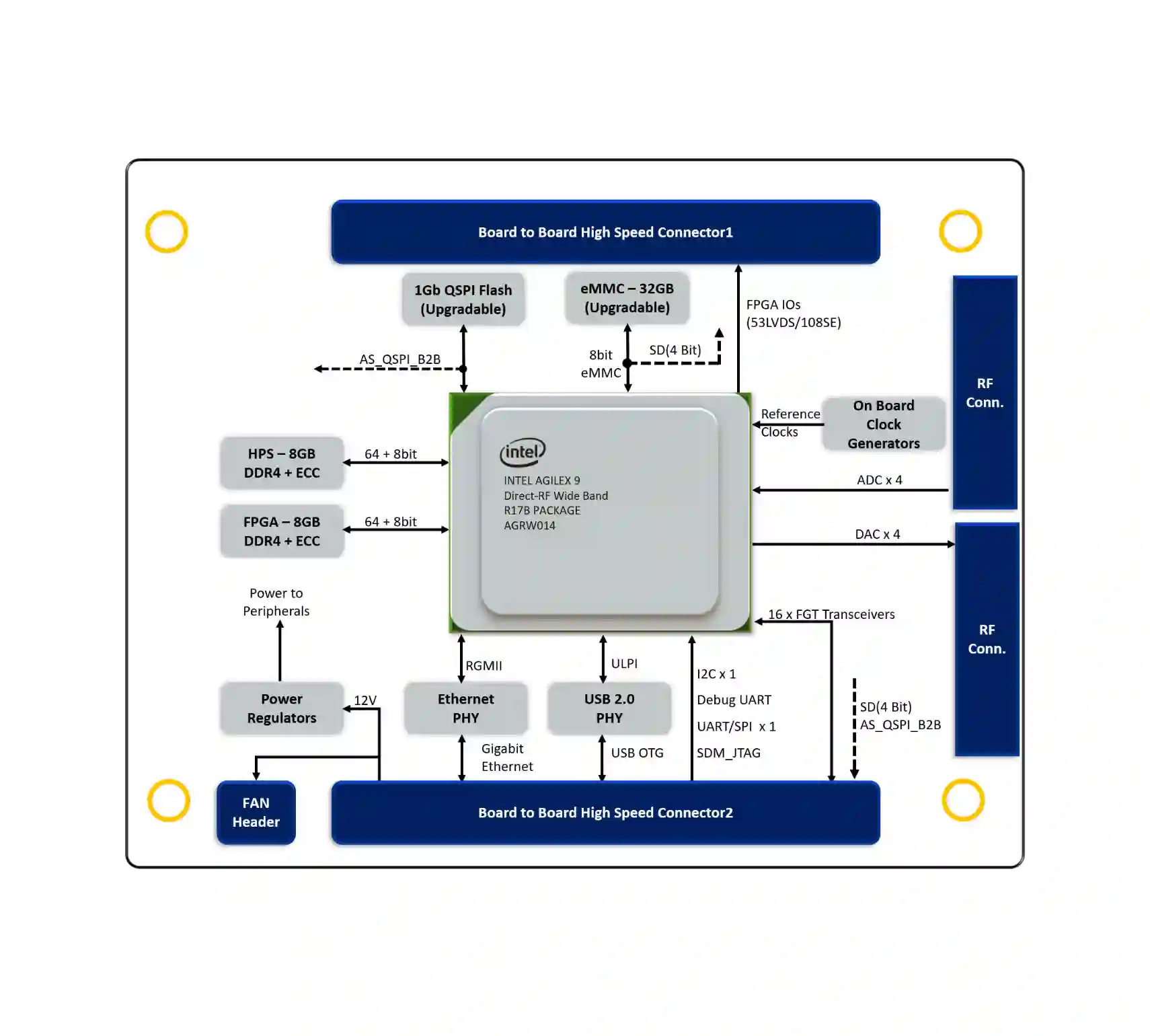

| Features | Details |
|---|---|
| Agilex™ 9 R17B Direct RF Soc FPGA | Quad-core 64-bit ARM® Cortex®-A53 up to 1.4GHz Up to 1,437,240 Logic elements 16 x FGT Transceivers up to 58Gbps PAM4 ADC x 4 & DAC x 4 ; Sampling rate up to 64Gsps |
| Memory | 8GB DDR4 with ECC for HPS (64bit + 8bit) 8GB DDR4 with ECC for FPGA (64bit + 8bit) |
| Storage | HPS 8bit eMMC (32GB Upgradable) SDM QSPI Flash (1Gb Upgradable) EEPROM (2Kb Upgradable) |
| On SOM Features | Gigabit Ethernet PHY x 1 USB2.0 OTG through On SOM PHY x 1 On Board Clock Generators FAN Header |
| Board to Board Connector Interfaces | Board to Board Connector 1
Board to Board connector 2
|
| RF Connector Interfaces | ADC x 4 (Up to 64 GSPS) DAC x 4 (Up to 64 GSPS) |
| General Features |
|
FAQs
Agilex™ System on Modules provide a production-ready FPGA platform with proven signal integrity, DDR tuning, and power sequencing. They reduce development risk, shorten design cycles, and accelerate time-to-market for high-performance embedded systems.
Agilex™ FPGA system on modules are supported with a Yocto-based Linux BSP including bootloader, kernel, and root filesystem. They also support bare-metal development through the Altera HAL for Nios® V (RISC-V) processors.
Yes. Agilex™ solutions support Remote System Update (RSU) with factory and application image management, enabling secure fallback, trusted recovery, and reliable field upgrades.
- Ultra-High-Speed Networking & Compute Scalability
- Precision Time Synchronization & Deterministic Networking
- RF-Optimized Clocking & Power Architecture
- Compact, Pin-Compatible & Deployment-Ready Designs
With high-speed PCIe connectivity, dynamic FPGA reconfiguration, and robust Linux support, Agilex™ enables acceleration for AI, networking, data centers, and high-performance embedded systems.
