Renesas RZ/V2L SMARC System on Module
iG-G56M®
- RZ/V2L MPU with 64-bit Arm® v8.2A & v8-M Architecture
- Dual Arm Cortex-A55 and Single core Cortex-M33
- DRP-AI for accelerating AI processing
- DDR4 – 2GB (Expandable), 16GB eMMC (Expandable)
- QSPI Flash, Octal SPI Flash (Optional) & Micro SD Slot (Optional)
- Multiple options for display: MIPI DSI, LVDS, HDMI, RGB
Documents
Design Support
Software
| Features | Details |
|---|---|
| CPU | RZ/V2L: 2 x Cortex-A55 @1.2GHz ,1 x M33 core @200MHz, DRP-AI Accelerator |
| Memory & Storage | DDR4 – 2GB (Expandable) 16GB eMMC (Expandable) QSPI Flash -16Mb EEPROM -32K bit Octa SPI* Micro SD Slot* |
| Network & Communication | Gigabit Ethernet PHY Transceiver x 2 USB 2.0 High-Speed 4-Port Hub |
| Other | RGB Connector (24 Bit RGB)* MIPI DSI to LVDS/HDMI Bridge* TPM 2.0* JTAG Header* Debug UART Header* Expansion Connector* |
| Edge Connector Features | Gigabit Ethernet x 2 Port (through ON-SOM Gigabit Ethernet PHY Transceiver) USB2.0 Host x 4 Ports (through On-SOM USB Hub) USB2.0 OTG x 1 Port SD (4 bit) x 1 Port HDMI TX x 1* 4 Lane LVDS x 1* 4 lane MIPI CSI x 1 CAN x 2 SPI x 2 I2C x 4 (Power Management I2C is optional) I2S x 2 PWM x 2 UART x 4 SMARC GPIOs 4 lane MIPI DSI x1 |
| OS Support | Linux 5.10.175 |
| General Features | Power Input: 5V, 2.5A through SMARC EDGE Connector Form Factor: 82mm x 50mm Operating Temperature: -40°C to +85°C(Industrial) Environment Specification: RoHS3 & REACH Compliant |

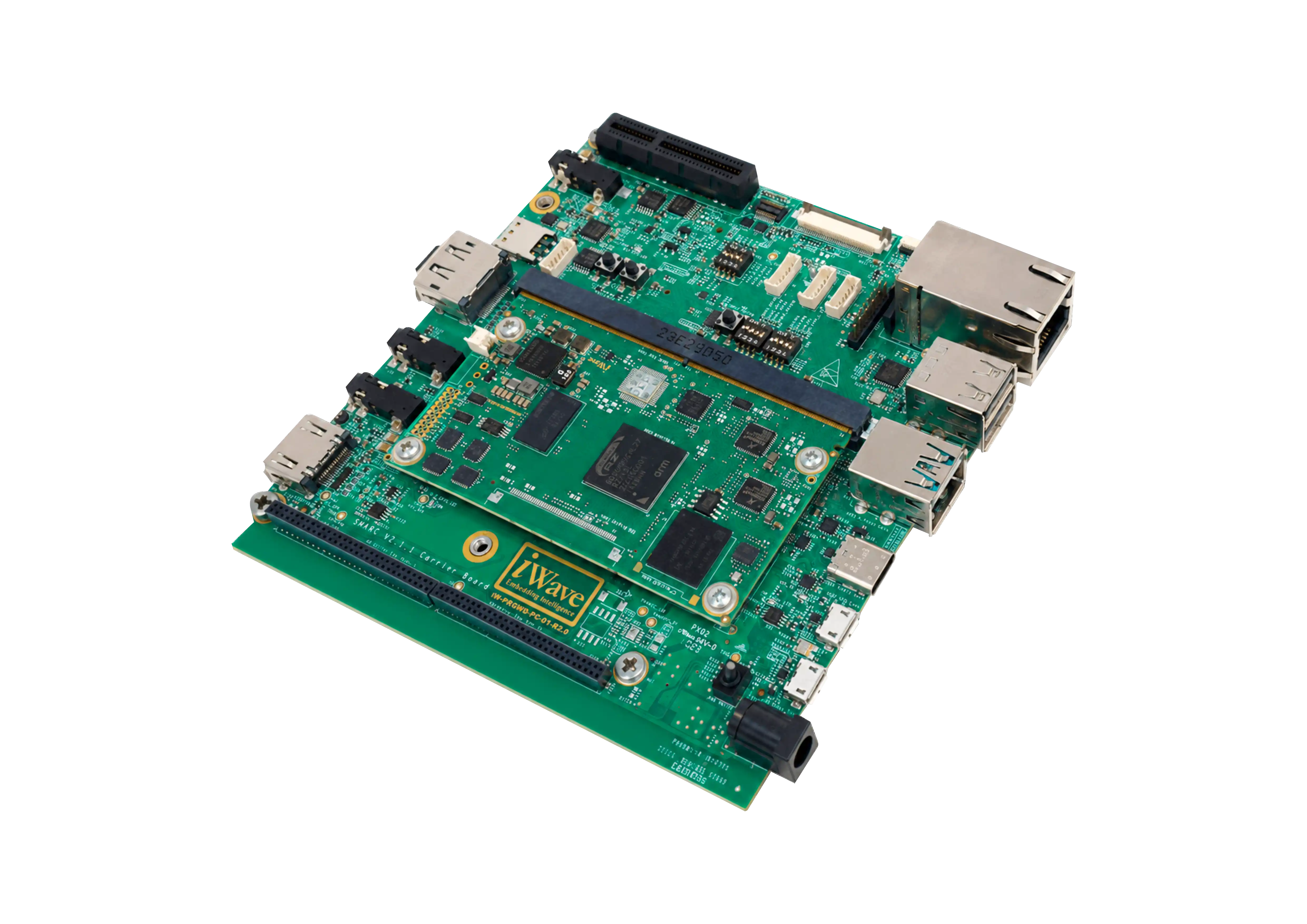

- Gigabit Ethernet Jack- 2 Port
- USB 2.0 Host TypeA Connector – 4 Ports (1 Top Port muxed with type-C)
- USB2.0 Micro-B OTG Connector -1 Port
- Standard SD slot – 1 Port
- MIPI CSI Camera Connector
- MIPI DSI Connector
- Audio In & Out Jack through I2S Codec x2
- RTC with backup battery
- Debug Micro USB Port
- HDMI – 1 Port (Optional)
- 20pin in LVDS Connector (Optional)
