Arria® 10 SoC FPGA
System on Module
iG-G24M®
- Arria® 10 SoC – SX270, SX320, SX480, SX570, SX660
- Arria® 10 FPGA – GX270, GX320, GX480, GX570, GX660, GX900, GX1150
- 32bit, 4GB HPS DDR4 with ECC & 64bit, 8GB FPGA DDR4
- 24 Channels High Speed Transceivers up to 17.4Gbps
- Up to 1150K Logic Elements
Documents
| Features | Details |
|---|---|
| On Module Features | Compatible Arria10 SoC Family – SX270, SX320, SX480, SX570, SX660
Compatible Arria10 FPGA Family – GX270, GX320, GX480, GX570,
32bit, 2GB DDR4 RAM with ECC for HPS (Upgradable up to 4GB) |

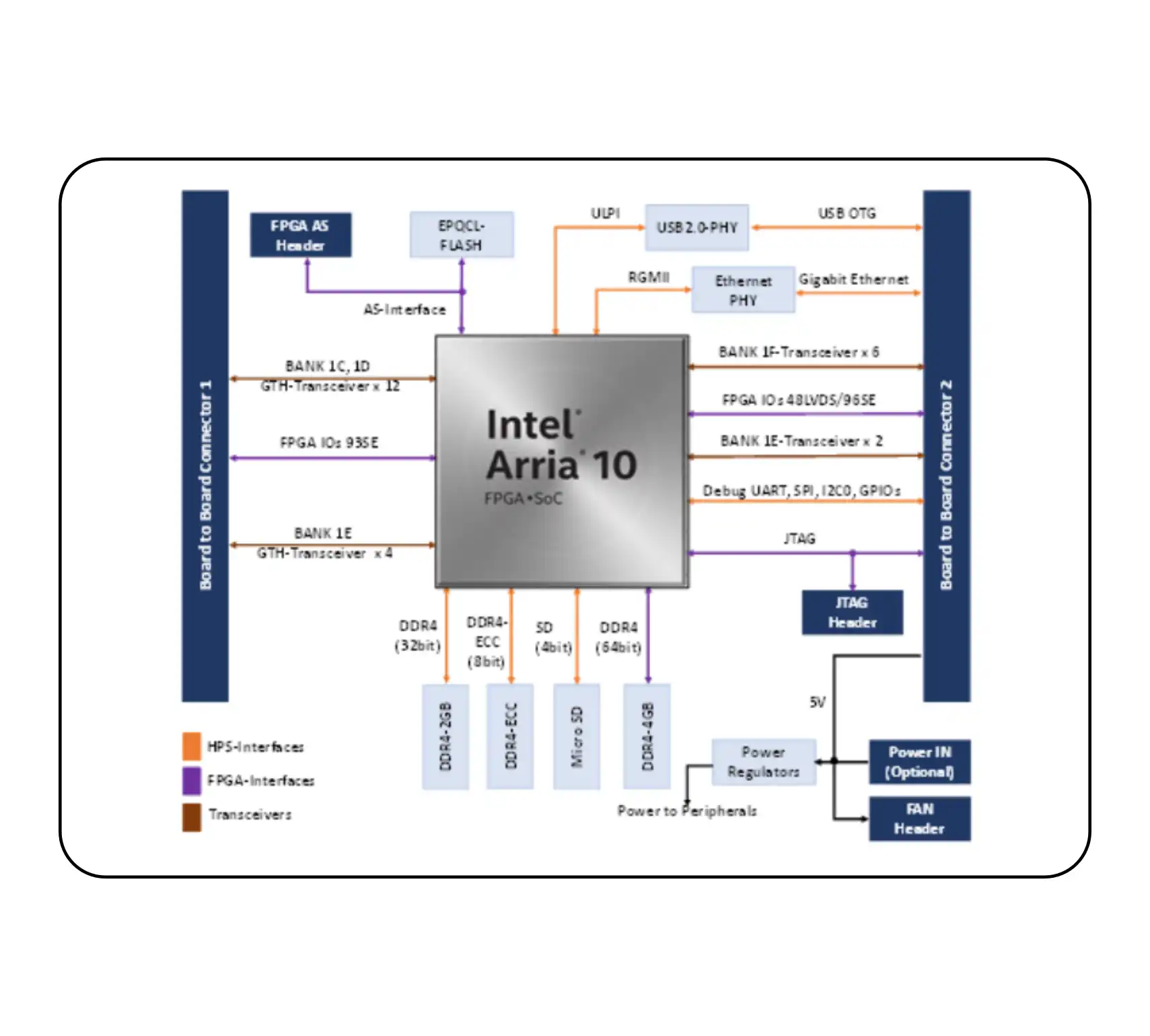

| Two 240pin High Speed Board to Board Connectors Interfaces | From HPS Block
From FPGA Block
FPGA IOs
|
| General Features |
|
DUAL FMC
- 10G Ethernet through SFP+ Connector
- PCIe Gen3 x 1 Connector
- Dual FMC High Pin Count (HPC) Connector
- Gigabit Ethernet through RJ45MagJack
- USB2.0 OTG through MicroAB Connector
- Dual PMOD Connector
- 20 Pin Header (for PS IOs)
- Debug UART through USB MicroAB Connector
- RTC Coin Cell Holder
- Operating Temperature: -20°C to +85°C
- Form Factor: 130mm x 140mm
FMC+
- VITA 57.4 FMC+ High Pin Count (HPC) Connector
- PCIe Gen3 x4 Connector
- NVMe M.2 Connector x 1 (PCIe x4)
- HDMI 1.4a Output
- Gigabit Ethernet through RJ45MagJack
- USB2.0 Host x 2 Ports through Dual Stack Type A Connector
- 12pin PMOD Host Port Connector x1
- 6pin PMOD Host Port Connector x1
- On-Board USB-Blaster™ II Interface through MicroAB Connector
- Debug UART through USB MicroAB Connector
- RTC Coin Cell Holder
- Form Factor: 150mm x 140mm
For any highly integrated System on Modules, thermal design is very important factor. iWave Supports Heat Sink and Fan Sink Solution for Arria10 SoC FPGA SOM.
Buy now
| Description | Stock | Order link |
|---|---|---|
| Arria10 SX270 SoC System on Module | 10 | Digikey |
| Arria10 SX270 SoC Development kit | 10 | Digikey |
| Arria10 SX480 SoC System on Module | 10 | Digikey |
| Arria10 SX480 SoC Development kit | 10 | Digikey |
| Arria10 SX660 SoC System on Module | 10 | Digikey |
| Arria10 SX660 SoC Development kit | 10 | Digikey |
| Arria10 GX480 FPGA Development Kit | 10 | Digikey |
| Arria10 GX1150 FPGA Development Kit | 10 | Digikey |
| Arria10 SX270 SoC System on Module | Backorder | Mouser |
| Arria10 SX270 SoC Development kit | Backorder | Mouser |
| Arria10 SX480 SoC System on Module | Backorder | Mouser |
| Arria10 SX480 SoC Development kit | Backorder | Mouser |
| Arria10 SX660 SoC System on Module | Backorder | Mouser |
| Arria10 SX660 SoC Development kit | Backorder | Mouser |
| Arria10 GX480 FPGA Development Kit | Backorder | Mouser |
| Arria10 GX1150 FPGA Development Kit | Backorder | Mouser |
