Stratix® 10 SoC FPGA
System on Module

iG-G45M®

Stratix® 10 SX – SX850, SX1100, SX1650, SX2100, SX2500, SX2800
Stratix® 10 GX – GX850, GX1100, GX1650, GX2100, GX2500, GX2800
8GB DDR4 for HPS with ECC, 2 x 8GB DDR4 for FPGA
32GB eMMC Flash (Expandable)up to 256GB
Up to 2753K Logic Elements & 9,33,120 ALMs
Up to 16 GXT @ 28.3Gbps & 32 GX @ 17.4Gbps Transceivers

CONTACT SALES

Stratix10 SoM

Top View

Bottom View

Side View

Development Kit

Design Support

SOM/SBC Selection Guide
SOM 3D STEP
Library Symbol
CAD Symbol
Carrier Schematics

Software

Linux User Manual
Linux - BSP

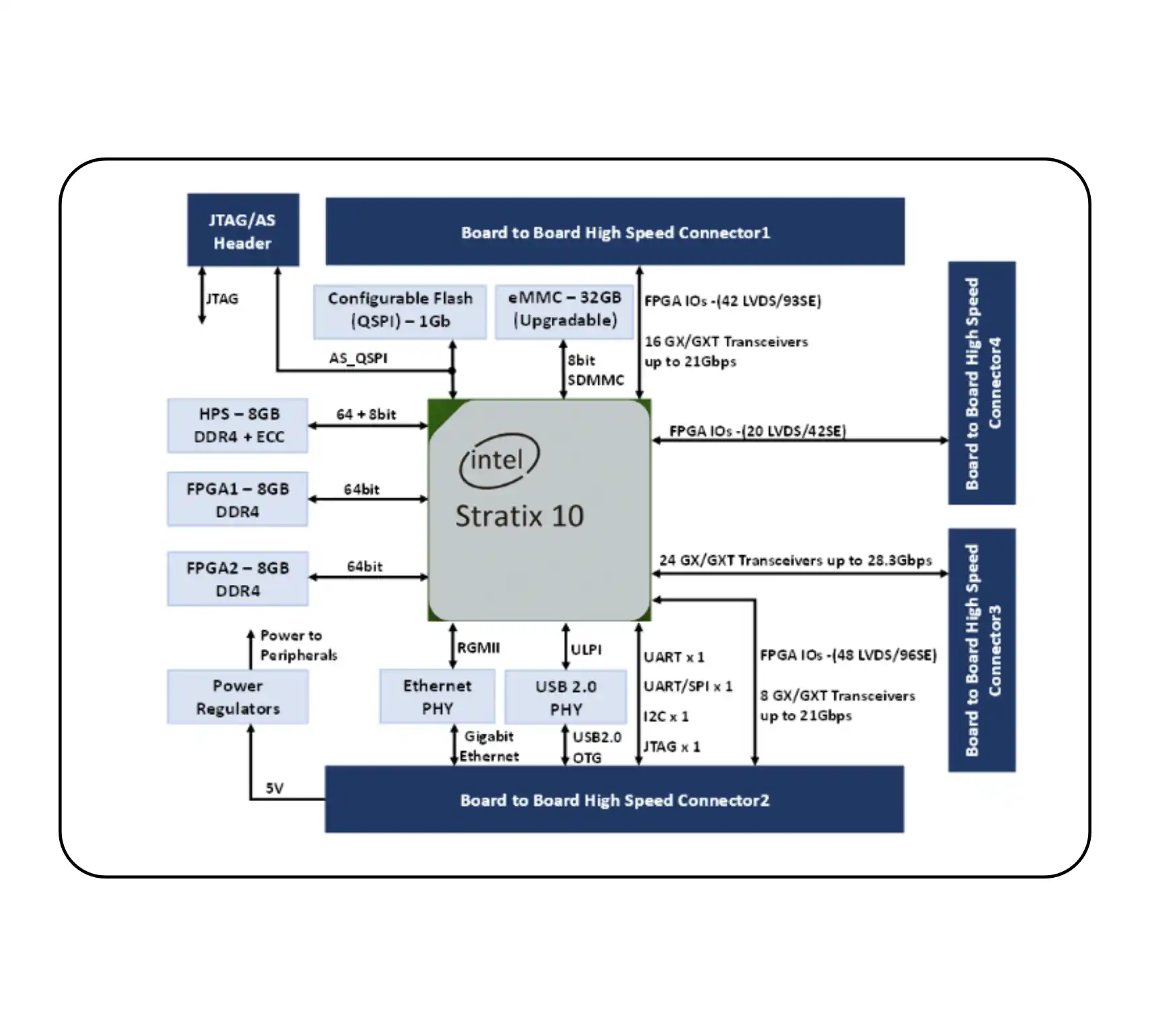

Features	Details
CPU	Supported CPU Devices Compatible Stratix 10 SX SoC FPGA Family-SX850, SX1100, SX1650, SX2100, SX2500, SX2800 variants support. Quad-Core 64bit ARM Cortex -A53 with MPU up to 1500MHz Up to 2753K Logic Elements & 9,33,120 ALMs High Speed Transceivers x48 up to 28.3Gbps Compatible Stratix 10 GX FPGA Family – GX850, GX1100, GX1650, GX2100, GX2500, GX2800 variants support. Up to 2753K Logic Elements & 9,33,120 ALMs High Speed Transceivers x48 up to 28.3Gbps
Memory & Storage	32GB eMMC Flash (Upgradable). 1Gb QSPI Flash (Upgradable). 8GB DDR4 for HPS with ECC (64bit + 8bit) (Upgradable) 2 x 8GB DDR4 for FPGA (64bit + 64bit) (Upgradable)
Other	Gigabit Ethernet PHY for HPS USB2.0 OTG Transceiver for HPS JTAG/ Active Serial Header Fan Header
Board to Board Connector1 Interfaces(240pin)	From FPGA Block 16 GX/GXT Transceiver Channels up to 21Gbps1 FPGA IOs 43 LVDS IOs/93 Single ended (SE) 3 General Purpose Clock Input LVDS Pair/Single Ended 4 General Purpose Clock Output LVDS Pair/Single Ended
Board to Board Connector2 Interfaces(240pin)	From HPS & SDM Blocks Gigabit Ethernet x 1 Port USB2.0 OTG x 1 Port UART x 1 Port I2C x 1 Port Debug UART x 1 Port JTAG x 1 Port from SDM SPI x 1 Port from SDM (Optional) SPI Slave x 1 Port (Optional) SDMMC x 1 Port (Optional) From FPGA Block 8 GX/GXT Transceiver Channels up to 21Gbps1 FPGA IOs 48 LVDS IOs/96 Single ended (SE) 4 General Purpose Clock Input LVDS Pair/Single Ended 4 General Purpose Clock Output LVDS Pair/Single Ended
Board to Board Connector3 Interfaces(240pin)	From FPGA Block 24 GX/GXT Transceiver Channels up to 28.3Gbps
Board to Board Connector4 Interfaces(80pin)	From FPGA Block FPGA IOs 20 LVDS IOs/42 Single ended (SE)
General Features	Power Input: 5V through B2B Connector Operating Temperature: -40°C to +85°C Form Factor: 110mm x 75mm BSP Support: Linux / Quartus 22.4 Environment Specification: RoHS3 & REACH Compliant

QSFP28/QSFP+ Connector
112G FireFly Connector
10G Ethernet through SFP+ Connector
12G SDI Video IN through HD BNC Connector
12G SDI Video OUT through HD BNC Connector
4K HDMI 2.0 IN through HDMI Connector
4K HDMI 2.0 OUT through HDMI Connector
FMC High Pin Count (HPC) Connector x 1
FMC+ High Pin Count (HPC) Connector x 1
DP 1.2a Display Port Connector
M.2 SATA 3.1 Connector
USB 3.0 OTG through TypeC Connector (Optional)
Gigabit Ethernet through RJ45MagJack
USB2.0 OTG through MicroAB Connector
Standard SD Connector (Optional)
20 Pin Header (for HPS IOs)
Dual PMOD Connector
Operating Temperature: -20°C to +85°C
Form Factor: 140mm x 170mm

Buy Now

For any highly integrated System On Modules, thermal design is very important factor. iWave Supports Fan Sink solution for Stratix 10 GX/SX SoC FPGA based SOM.
