HDMI 2.1 8K / 4K Frame Grabber

Name: HDMI 2.1 8K / 4K Frame Grabber
Brand: iWave Global
Availability: InStock

The HDMI 2.1 8K/4K frame grabber is engineered to capture high speed digital video streams over PCIe formfactor, simply install the card in any standard workstation or server, connect an HDMI 2.1 source, and start ingesting crystal clear video up to 8K @ 60 Hz or 4K @ 120 Hz. It supports real time streaming & storage on a host PC with plug and play drivers for Linux. Additionally, it accepts video input from the host PC for transmission over HDMI 2.1 output. By delivering uncompressed Video with low latency and maximum throughput, this device is perfectly suited for performance critical, mission focused video & medical applications.

CONTACT SALES

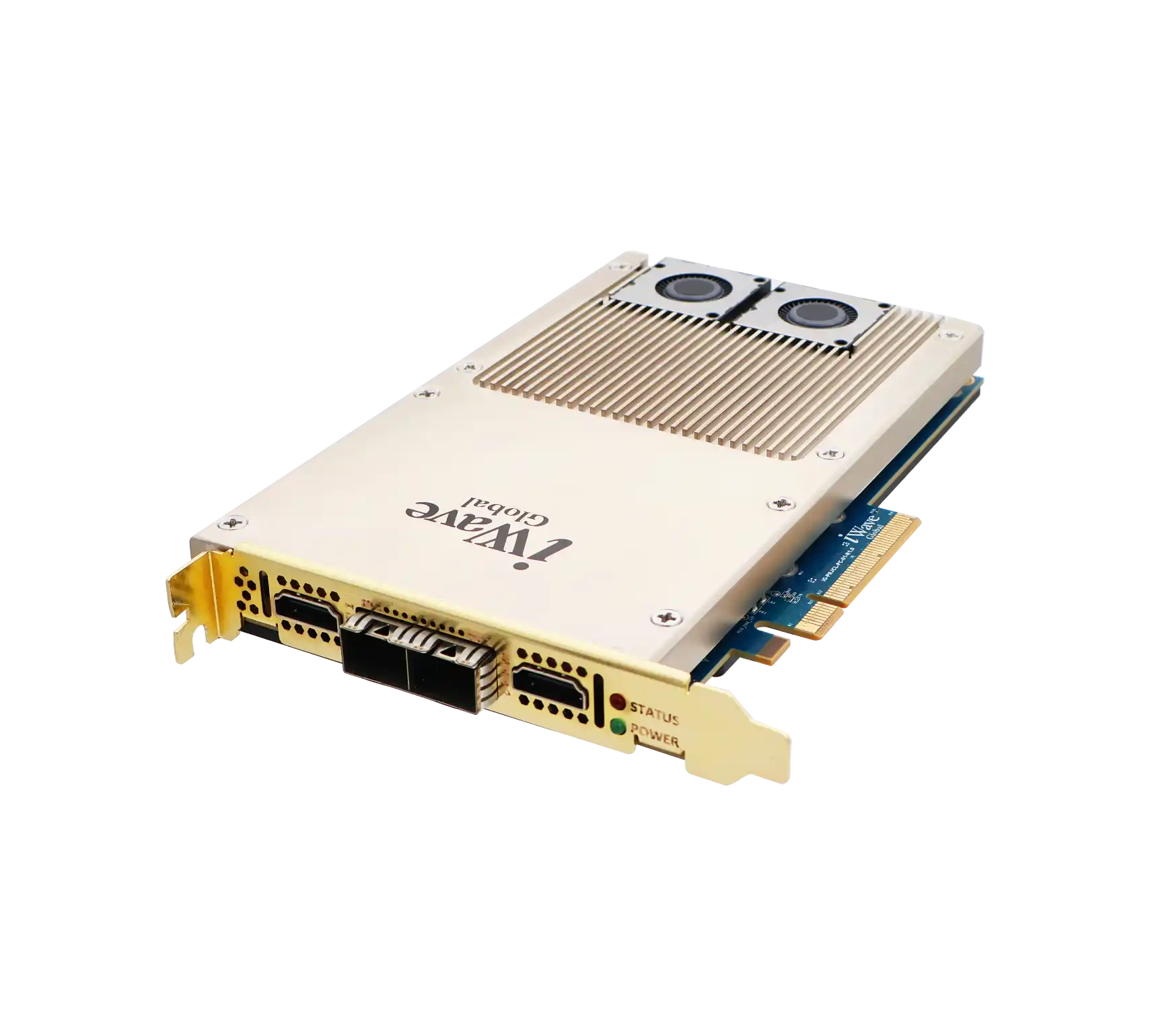

HDMI 2.1 8K/4K Frame Grabber

Top View

Working Flow

Functionality Diagram

Operation Diagram

Documents

Features	Details
Video Interface	Supports 2 HDMI 2.1 Input or 2 HDMI 2.1 Output or 1 HDMI 2.1 Input and Output. Resolution & Frame Rates support up to 4k@120FPS / 8K@60FPS. HDMI out loop through support for reference distribution in multi card systems. Uncompressed video capture and transmission. Embedded multi channel HDMI audio. On Board Video Test pattern generator.
Host Interface	PCIe Gen 3, x8 lane with a total maximum theoretical bandwidth of 64Gbps. Total onboard DDR memory bandwidth of up to 192 Gbps. Full-Height Half-Length PCIe form factor, suitable for integration into Host PC systems
Software Feature	Compatible with Linux operating system using V4L2 framework driver. Supports video node detection for automatic Video Device recognition for applications like VLC media, OBS studios and more. Supports Application like gstremer and FFmpeg HDMI 2.1 receiver data capture and Recording from the PCIe card to the host PC. Automatic detection of HDMI resolution and frame rate on the host. Support for video data streaming from the host PC to the HDMI 2.1 output
Highlights	Compliant with HDMI 2.1, supports max resolutions and refresh rates up to 4k @120FPS or 8K @60FPS. PCIe Gen 3 x8 lanes with a total maximum theoretical bandwidth of 64Gbps. Full-Height Half-Length PCIe form factor, suitable for integration into Host PC systems. Compatible with AMD Direct GMA and NVIDIA GPU Direct Supports V4L2 framework Compatible with Linux OS for flexible deployment. Supports video node detection for applications like VLC media, OBS studios and more.
