Agilex™ 3 SoC FPGA
System on Module
iG-G71M®
- Agilex™ 3 C-Series family with M16A Package
- HPS LPDDR4 – 32bit 2GB (Expandable up to 8GB)
- 32GB eMMC Flash (Expandable up to 128GB) and 1Gb QSPI Flash
- 4 x Transceivers up to 12.5Gbps
- Up to 135K Logic Elements
- PCIe Gen3 connectivity interface
Documents

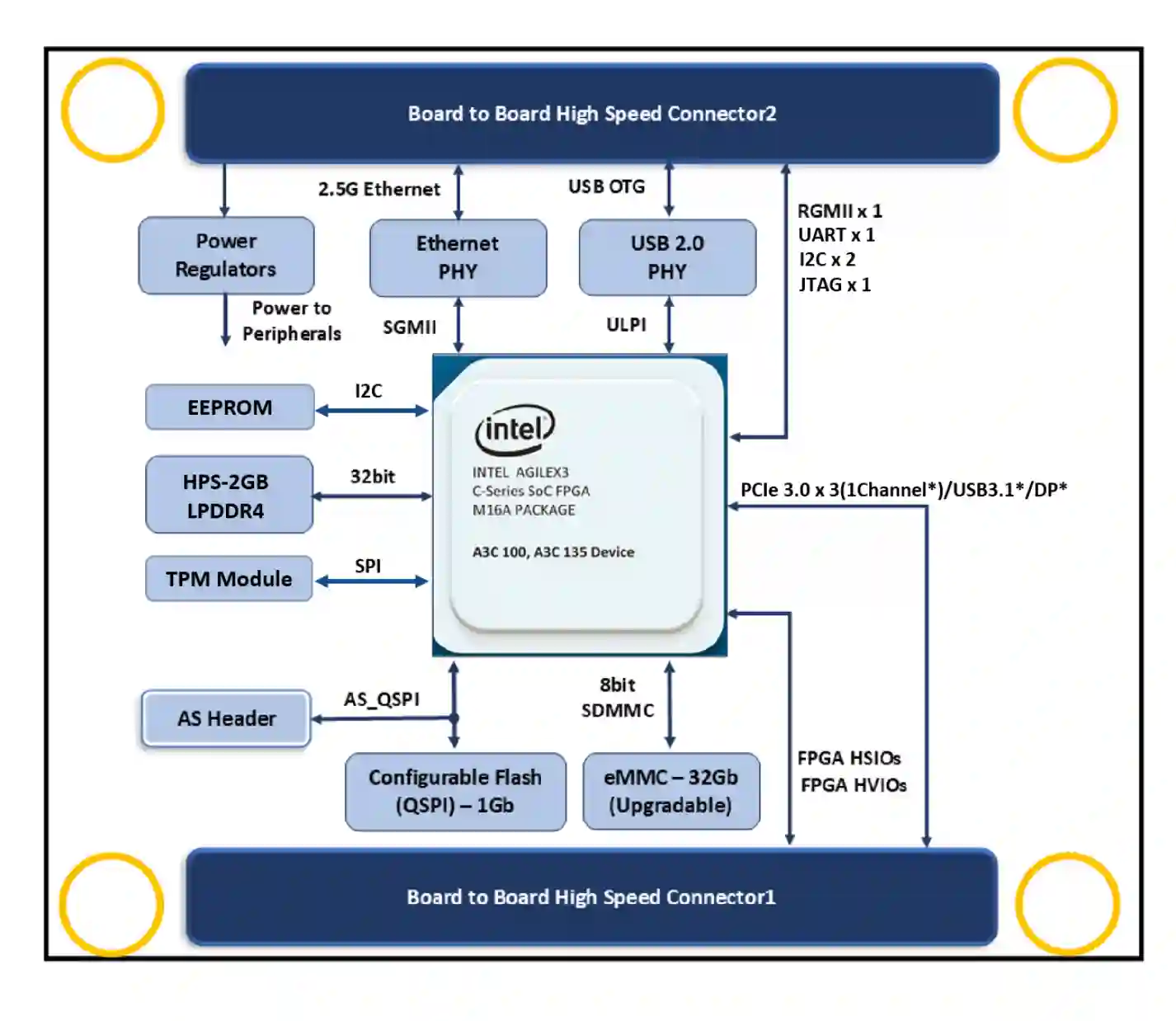

| Features | Details |
|---|---|
| Agilex™ 3 SoC FPGA | Compatible C-Series M16A Package Family
Hard Processing System (HPS)
Field Programmable Gate Array (FPGA)
|
| Memory | HPS LPDDR4 – 32bit 2GB (Expandable up to 8GB) 32GB eMMC (Expandable up to 128GB) 1Gb QSPI Flash EEPROM |
| Other On SOM Features | 2.5G Ethernet PHY Transceiver USB2.0 ULPI Transceiver Clock Synthesizer TPM Module JTAG Header (Optional) FAN Header |
| Board to Board Connector1 Interfaces(240pin) | From FPGA
|
| Board to Board Connector2 Interfaces(240pin) | From HPS (Hard Processor System)
From SDM (Secure Device Manager)
From HPS to FPGA
|
| General Features |
|
Unified Development Platform for Agilex 3 & Agilex 5 SoMs
This development kit is designed with a common carrier architecture, allowing both Agilex 3 SoM and Agilex 5 SoM to be used on the same platform.
Users can evaluate, prototype, and scale designs by switching between Agilex SoMs without any hardware or mechanical changes.
- 2.5G Ethernet RJ45 MagJack
- Gigabit Ethernet RJ45 MagJack
- Micro SD Connector (Optional)
- TypeC USB connector for Debug
- JTAG Connector
- 60-Pin PS Header (GPIOs)
- PCIe Gen3 x4
- USB3.0 + USB2.0 through TypeC
- DP (2 lane)
- FMC+ Connector
- PMOD Connector
- Form Factor : 120mm x 120mm
- Operating Temperature: -20°C to +85°C
FAQs
Agilex™ System on Modules provide a production-ready FPGA platform with proven signal integrity, DDR tuning, and power sequencing. They reduce development risk, shorten design cycles, and accelerate time-to-market for high-performance embedded systems.
Agilex™ FPGA system on modules are supported with a Yocto-based Linux BSP including bootloader, kernel, and root filesystem. They also support bare-metal development through the Altera HAL for Nios® V (RISC-V) processors.
Yes. Agilex™ solutions support Remote System Update (RSU) with factory and application image management, enabling secure fallback, trusted recovery, and reliable field upgrades.
- Ultra-High-Speed Networking & Compute Scalability
- Precision Time Synchronization & Deterministic Networking
- RF-Optimized Clocking & Power Architecture
- Compact, Pin-Compatible & Deployment-Ready Designs
With high-speed PCIe connectivity, dynamic FPGA reconfiguration, and robust Linux support, Agilex™ enables acceleration for AI, networking, data centers, and high-performance embedded systems.
