RFSoC ADC DAC 3U VPX
Plug-in Module
iG-G60V
- AMD Zynq™ Ultrascale+™ RFSoC ZU48/47/43/28/27/25DR
- Programming Logic (PL) with up to 930K Logic cells
- PL GTY High Speed Transceivers x 16 @ upto 28.21 Gbps
- 8 DAC channels | 30 MHz–6 GHz | up to 9.85 GSPS
- 8 ADC channels | 30 MHz–6 GHz | up to 5 GSPS
- Integrated ultra low-noise programmable RF PLL
- Integrated SyncE & PTP Network Synchronization
Documents
Documents
Design Support

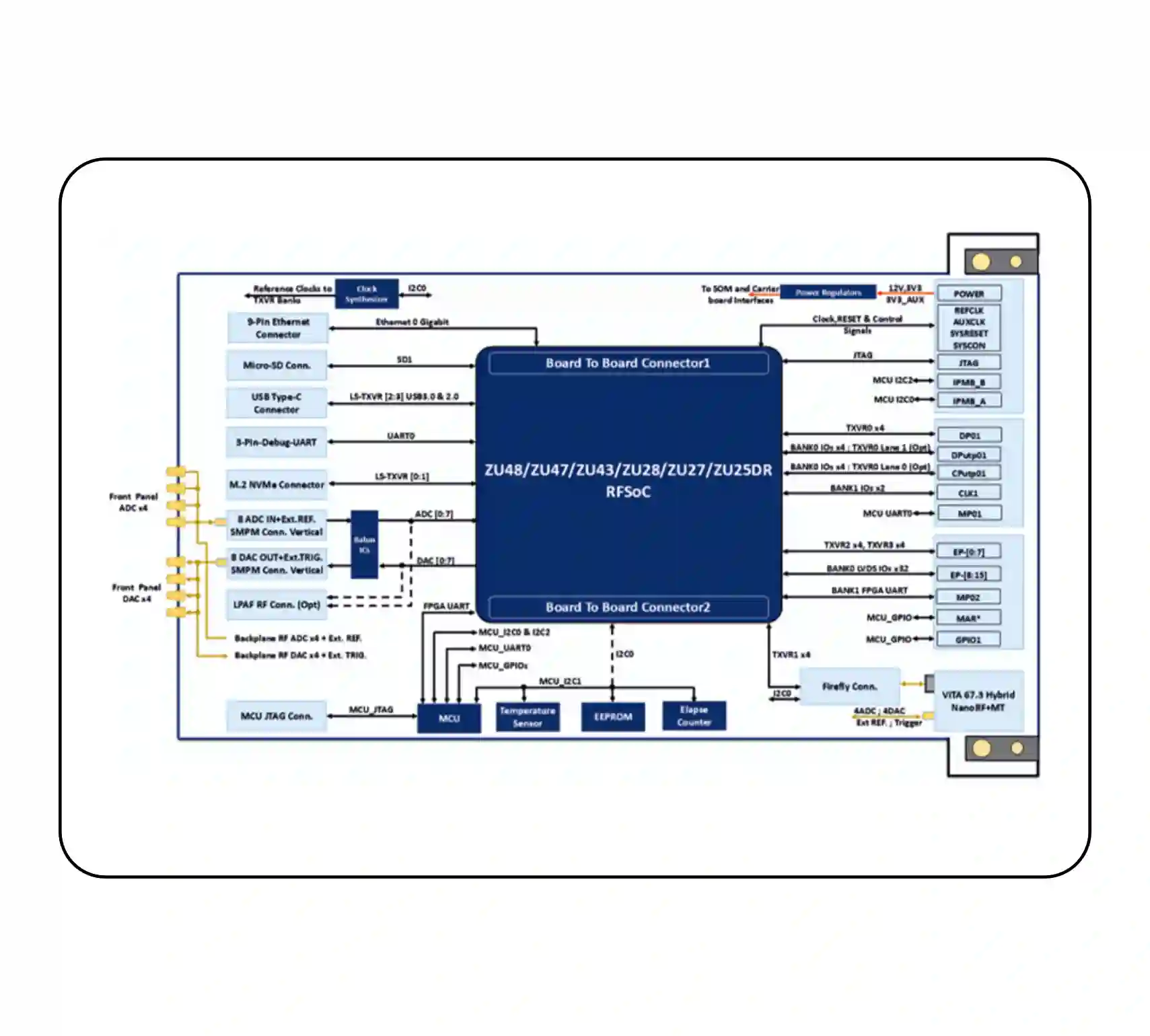

| Features | Details |
|---|---|
| SoC | Zynq™ Ultrascale+™ RFSoC ZU48/47/43/28/27/25DR
Processing System (PS)
Programming Logic (PL)
|
| RAM Memory | 64bit, 8GB DDR4 RAM for PS with ECC 64bit, 8GB DDR4 RAM for PL |
| Flash Memory | 256MB QSPI Flash for Booting 32GB eMMC Flash for Storage 2-Kbit EEPROM x2 |
| Clock & PLL | Integrated Configurable ultra low noise PLL for ADC & DAC Fully Configurable Clock Synthesizer with SyncE and PTP support |
| 3U VPX Backplane Features | 3U VPX Connector – P0+P1A
3U VPX Connector (P1B+P2A)
|
| NanoRF +MT Ferrule Hybrid Connector -(P2B ) | 4 DAC channels supporting 30 MHz to 6 GHz with sampling rates up to 9.85 GSPS (Configurable). 4 ADC channels supporting 30 MHz to 6 GHz with sampling rates up to 5 GSPS (Configurable). Multi-gigabit transceivers lanes x4 to backplane using Optical Firefly |
| Front Panel Features | USB 3.0 through USB Type-C Connector (Optionally supports DP) 10/100/1000Mbps Ethernet through 9 Pin Header 3 Pin Debug UART Header Micro-SD Connector |
| Other On Board Features | PCIe Gen2 x2 through M.2 Connector Temperature Sensor Elapse Time Counter Clock Synthesizer for Transceiver Reference clocks |
| General Specification | Power Input: +12VDC and 3V3_AUX input from VPX Connector Thermal Solution: Integrated Heat Spreader Form Factor: 3U VPX (160mm X 100mm) Profiles Supported:
Slot Pitch: 1 Inch Conduction Cooled |
Thermal design is a crucial factor for highly integrated FPGA VPX Plug-in Module. iWave offers a VITA 65.0 compliant 3U Conduction Cooled Heat spreader.
