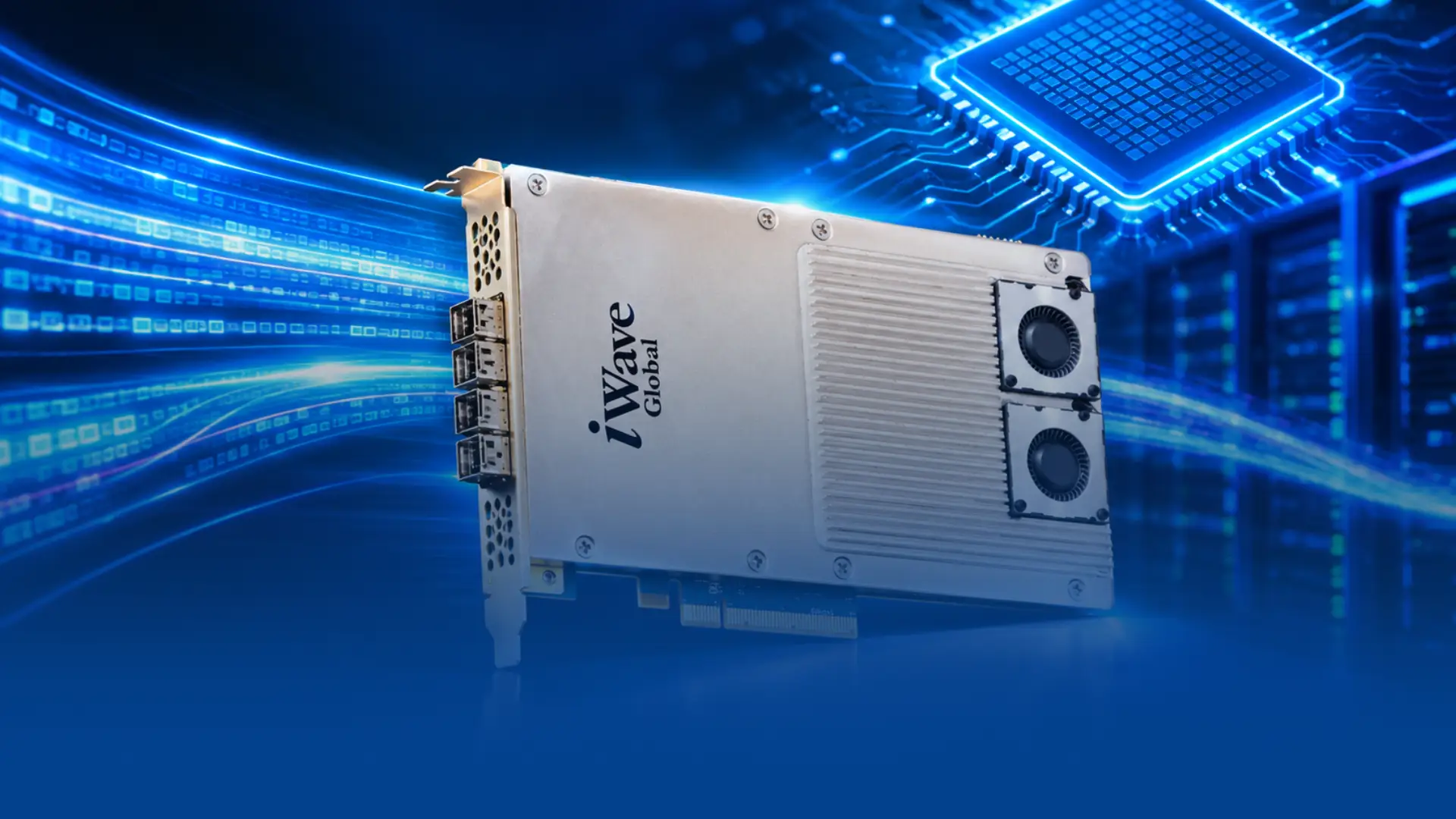

Aurora Data Capture Card

• 4 × SFP+ input and output:
  • SFP+ operating up to 6.6 Gb/s line rate.
  • The throughput reflects the 20% overhead of Aurora 8B/10B encoding and providing a total aggregate payload bandwidth of 21.12 Gb/s.
• 2 × QSFP input and output
  • Each lane supporting up to 6.6 Gb/s line rate.
  • The effective aggregate throughput, considering Aurora protocol overhead, is 42.24 Gb/s.

Aurora 64B/66B encoding

• 4 × SFP+ input and output
  • SFP+ operating up to 10Gb/s line rate.
  • The throughput reflects the 3% overhead of Aurora 64B/66B encoding and providing a total aggregate payload bandwidth of 38.8 Gb/s.
• 2 × QSFP input and output
  • Each lane supporting up to 10Gb/s line rate.
  • The effective aggregate throughput, considering Aurora protocol overhead, is 77.6 Gb/s.

• PCIe Gen 3, x8 lane with a total maximum theoretical bandwidth of 64Gbps.
• Full-Height Half-Length PCIe form factor, suitable for integration into Host PC systems.

• High, scalable throughput (480 Mb/s to 84.48 Gb/s).
• Supports high-speed data streaming from the capture card to the Host PC via PCIe.
• The Frame Grabber architecture is optimized for low-latency data transfer.
• Multi-lane bonding (up to 16 lanes) for high bandwidth and scalability.
• DRP support enabling real-time transceiver optimization and link diagnostics.
• Deterministic low latency (lightweight Aurora protocol).
• Built-in data integrity (16/32-bit CRC)
• Automatic link initialization and maintenance.
• Built-in flow control (NFC / UFC)
• Link health & error status monitoring.
• Scrambler / Descrambler support.
• Supports Aurora protocol with 8B/10B and 64B/66B encoding.
• Low FPGA resource utilization.
• Reliable operation for continuous data transfer.

• Active Cooling with fansink
