Agilex™ 7 (R31A/R31B/R31C) SoC FPGA System on Module
iG-G43M®

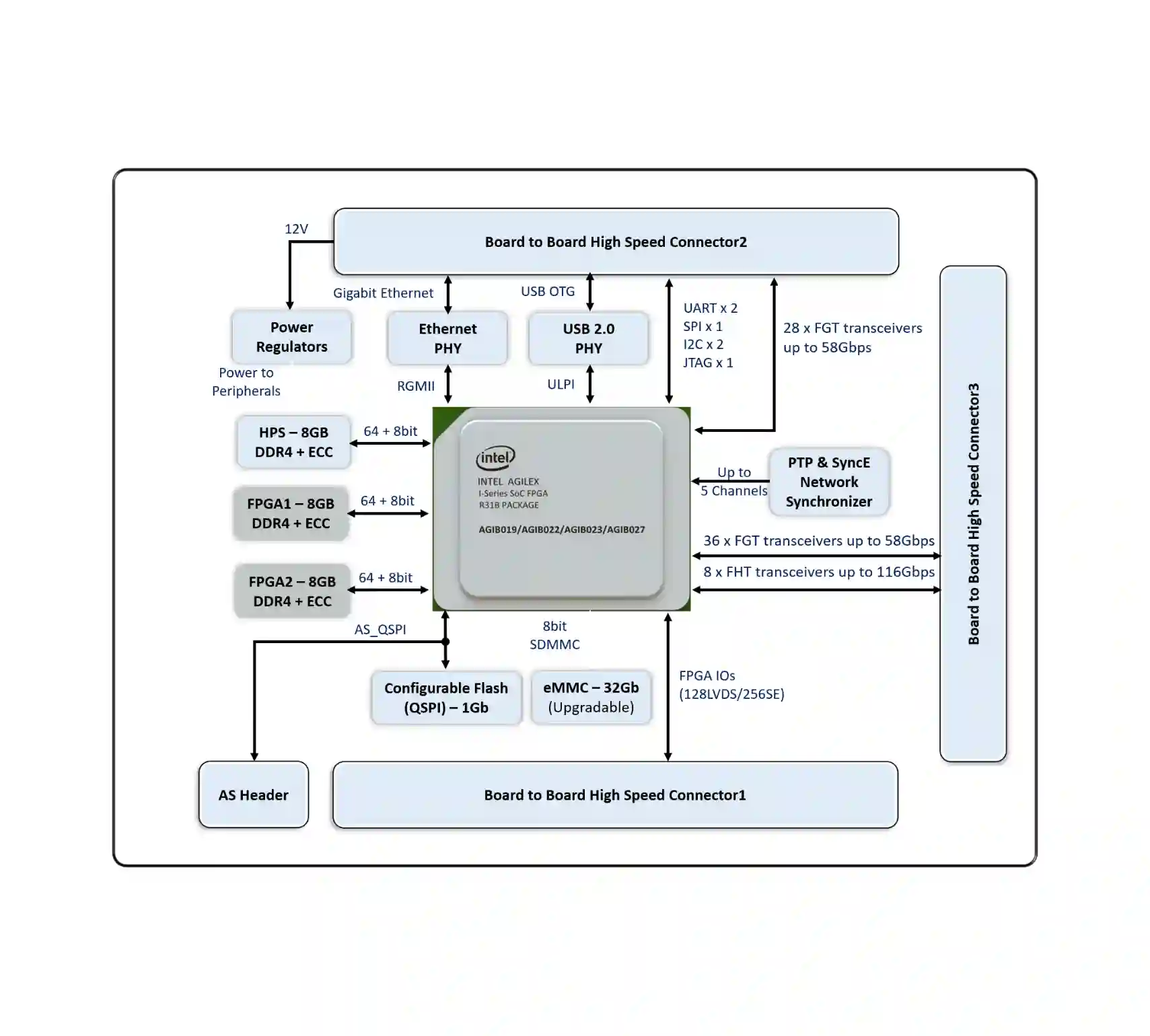

- Agilex™ 7 SoC FPGA (R31A/R31B/R31C Package)
- 8GB DDR4 with ECC for HPS (64bit + 8bit)
- 2 x 8GB DDR4 with ECC for FPGA (64bit + 8bit)
- PCIe Gen5 x16
- 64 FGT transceivers
- 8 FHT transceivers
- On SOM PTP & SyncE Network Synchronizers
Documents
| Features | Details |
|---|---|
| Agilex™ 7 (R31A/R31B/R31C) SoC FPGA | Compatible R31A Package Family
Compatible R31B Package Family
Compatible R31C Package Family
Hard Processing System (HPS)
Field Programmable Gate Array (FPGA)
|
| Memory Interfaces | 8GB DDR4 with ECC for HPS (64bit + 8bit) 2 x 8GB DDR4 with ECC for FPGA (64bit + 8bit) 32GB eMMC (Expandable up to 128GB) 1Gb Configuration Flash |
| Board to Board Connector1 Interfaces(400pin) | From FPGA:
|
| Board to Board Connector2 Interfaces(400pin) | From HPS (Hard Processor System)
From FPGA:
From SDM (Secure Device Manager):
From HPS to FPGA:
|
| Board to Board Connector3 Interfaces(400pin) | From FPGA
|
| General Features | Power Input: 12V through B2B Connector Operating Temperature: -40°C to +85°C Form Factor: 120mm X 90MM (BRYN+) BSP Support: Linux BSP for ARM Cortex CPU Environment Specification: RoHS & REACH Compliant |
- QSFP Connector x 4 (2 x 400G, 1 x 200G & 1 x 100G)
- FMC+ High Pin count (HPC) connector x 3 (3rd FMC+ supports only DIFF/SE IOs)
- PCIe Gen4 x16 Connector x 1
- 4K HDMI 2.0 IN & OUT through HDMI Connector
- SDI Video IN & OUT through HD BNC Connector
- PMOD Connectors x 1
- Gigabit Ethernet through RJ45MagJack x 1
- USB2.0 OTG through Type C connector x 1
- Debug UART through Type C connector x 1
- 20 Pin Header (for HPS IOs)
- Micro SD Connector x 1
- JTAG Connector x 1
- Operating Temperature: -0°C to +85°C
- Form Factor: 160mm x 210mm
For any highly integrated System On Modules, thermal design is very important factor. iWave Supports Fan Sink solution for Agilex 7 SoC FPGA SOM.
FAQs
Agilex™ System on Modules provide a production-ready FPGA platform with proven signal integrity, DDR tuning, and power sequencing. They reduce development risk, shorten design cycles, and accelerate time-to-market for high-performance embedded systems.
Agilex™ FPGA system on modules are supported with a Yocto-based Linux BSP including bootloader, kernel, and root filesystem. They also support bare-metal development through the Altera HAL for Nios® V (RISC-V) processors.
Yes. Agilex™ solutions support Remote System Update (RSU) with factory and application image management, enabling secure fallback, trusted recovery, and reliable field upgrades.
- Ultra-High-Speed Networking & Compute Scalability
- Precision Time Synchronization & Deterministic Networking
- RF-Optimized Clocking & Power Architecture
- Compact, Pin-Compatible & Deployment-Ready Designs
With high-speed PCIe connectivity, dynamic FPGA reconfiguration, and robust Linux support, Agilex™ enables acceleration for AI, networking, data centers, and high-performance embedded systems.
