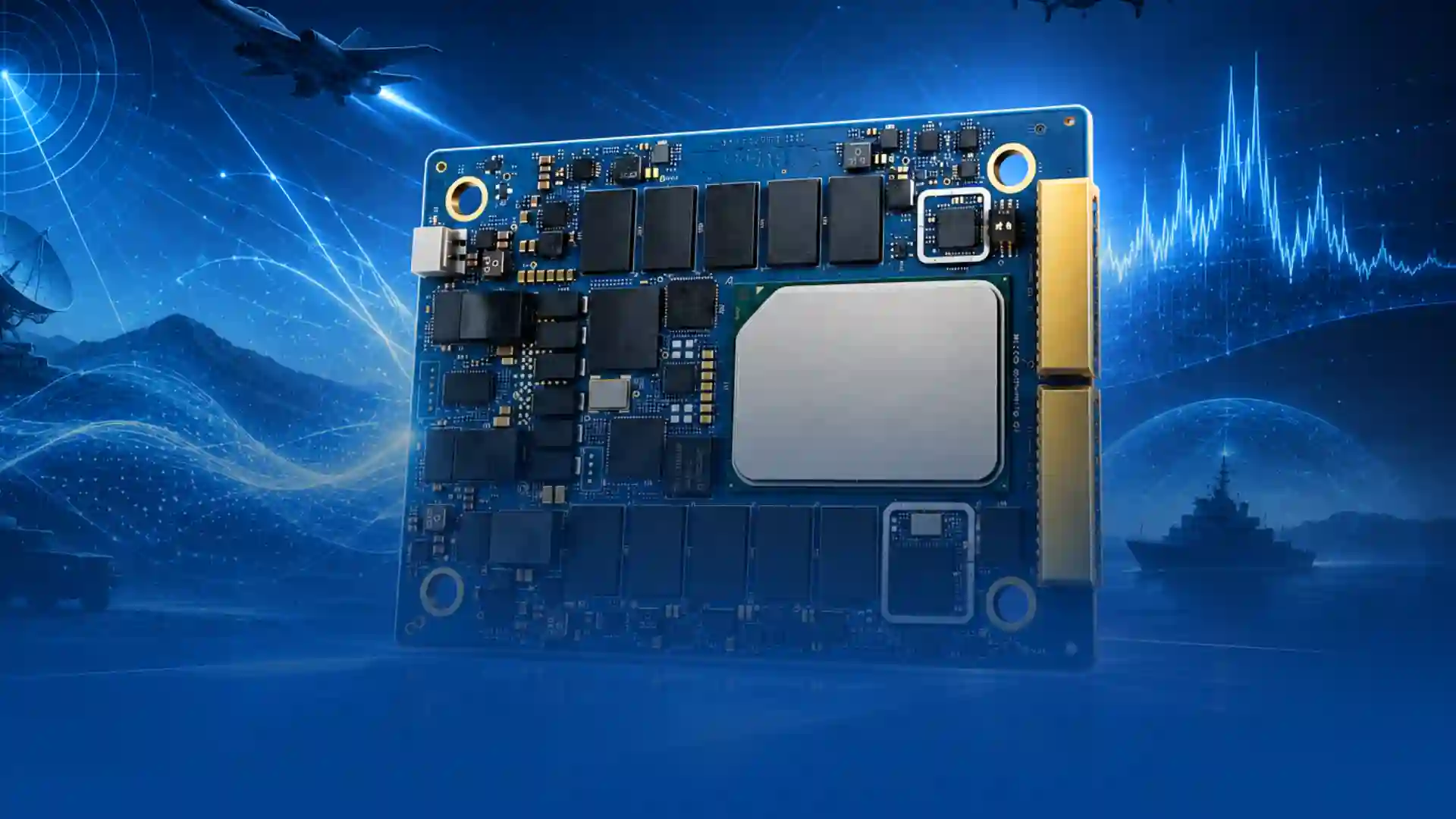

Agilex™ 9 R31D Mid-band Direct RF System on Module
iG-G78M®
- Altera Agilex™ 9 AGRM027 Direct RF Mid-band SoC FPGA Device
- Up to 2.7M Logic Elements, 17056 18x18 Multiplier
- 32x high-speed FGT transceivers up to 58 Gbps PAM4
- 20x ADC with Sampling rate up to 4Gsps
- 16x DAC with Sampling rate up to 12Gsps
- Industrial operating temperature range from −40 °C to +100 °C
- Form Factor: 82 x 110 mm (BRYNc)
Documents

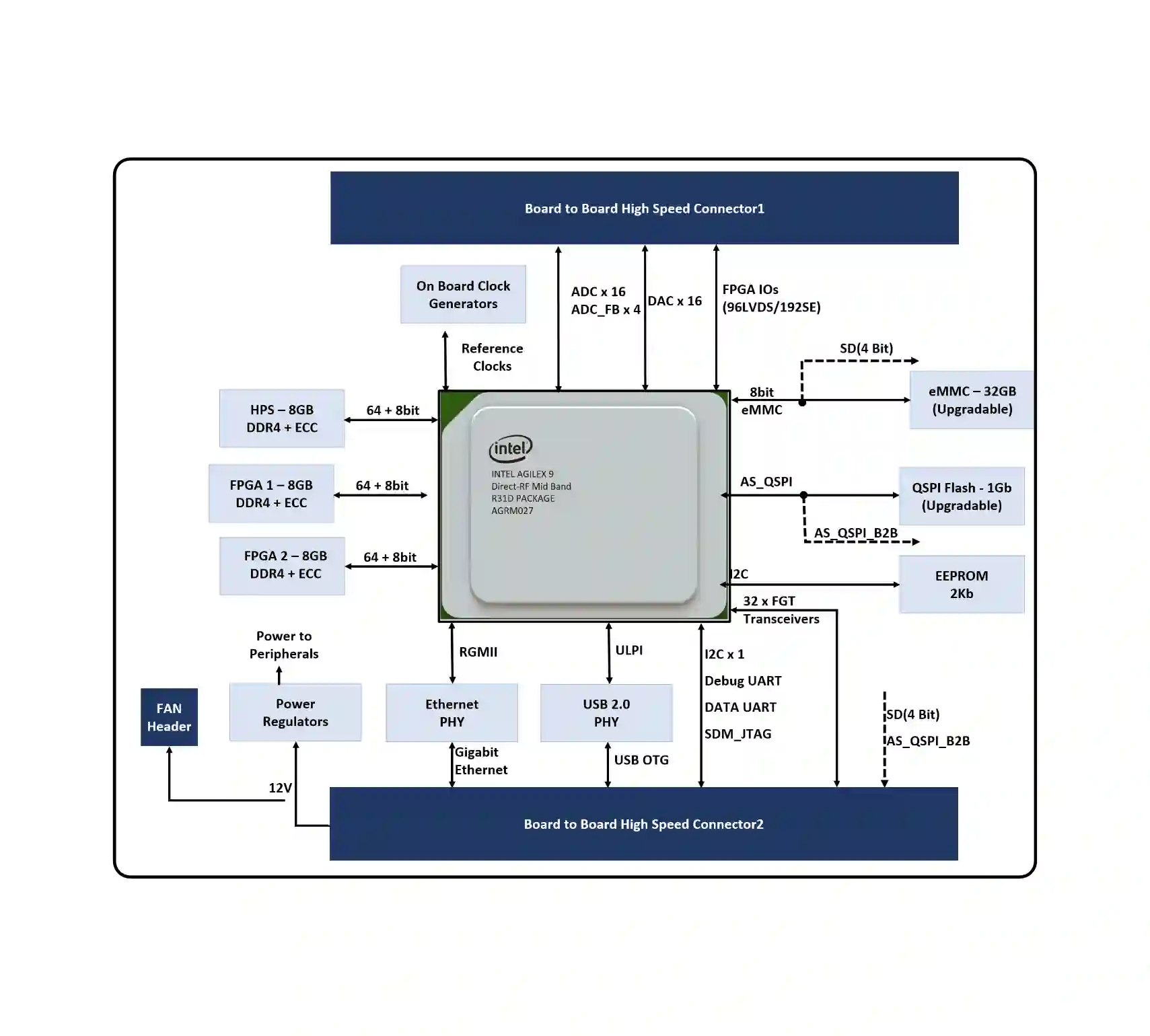

| Features | Details |
|---|---|
| Direct RF Soc FPGA | Agilex 9 Mid-band Direct RF SoC FPGA
Hard Processing System (HPS)
Field Programmable Gate Array (FPGA)
|
| Memory |
|
| Storage |
|
| On SoM Features |
|
| Board to Board Connector Interfaces: | Board to Board Connector 1
Board to Board Connector 2
|
| General Features |
|
FAQs
Agilex™ System on Modules provide a production-ready FPGA platform with proven signal integrity, DDR tuning, and power sequencing. They reduce development risk, shorten design cycles, and accelerate time-to-market for high-performance embedded systems.
Agilex™ FPGA system on modules are supported with a Yocto-based Linux BSP including bootloader, kernel, and root filesystem. They also support bare-metal development through the Altera HAL for Nios® V (RISC-V) processors.
Yes. Agilex™ solutions support Remote System Update (RSU) with factory and application image management, enabling secure fallback, trusted recovery, and reliable field upgrades.
- Ultra-High-Speed Networking & Compute Scalability
- Precision Time Synchronization & Deterministic Networking
- RF-Optimized Clocking & Power Architecture
- Compact, Pin-Compatible & Deployment-Ready Designs
With high-speed PCIe connectivity, dynamic FPGA reconfiguration, and robust Linux support, Agilex™ enables acceleration for AI, networking, data centers, and high-performance embedded systems.
