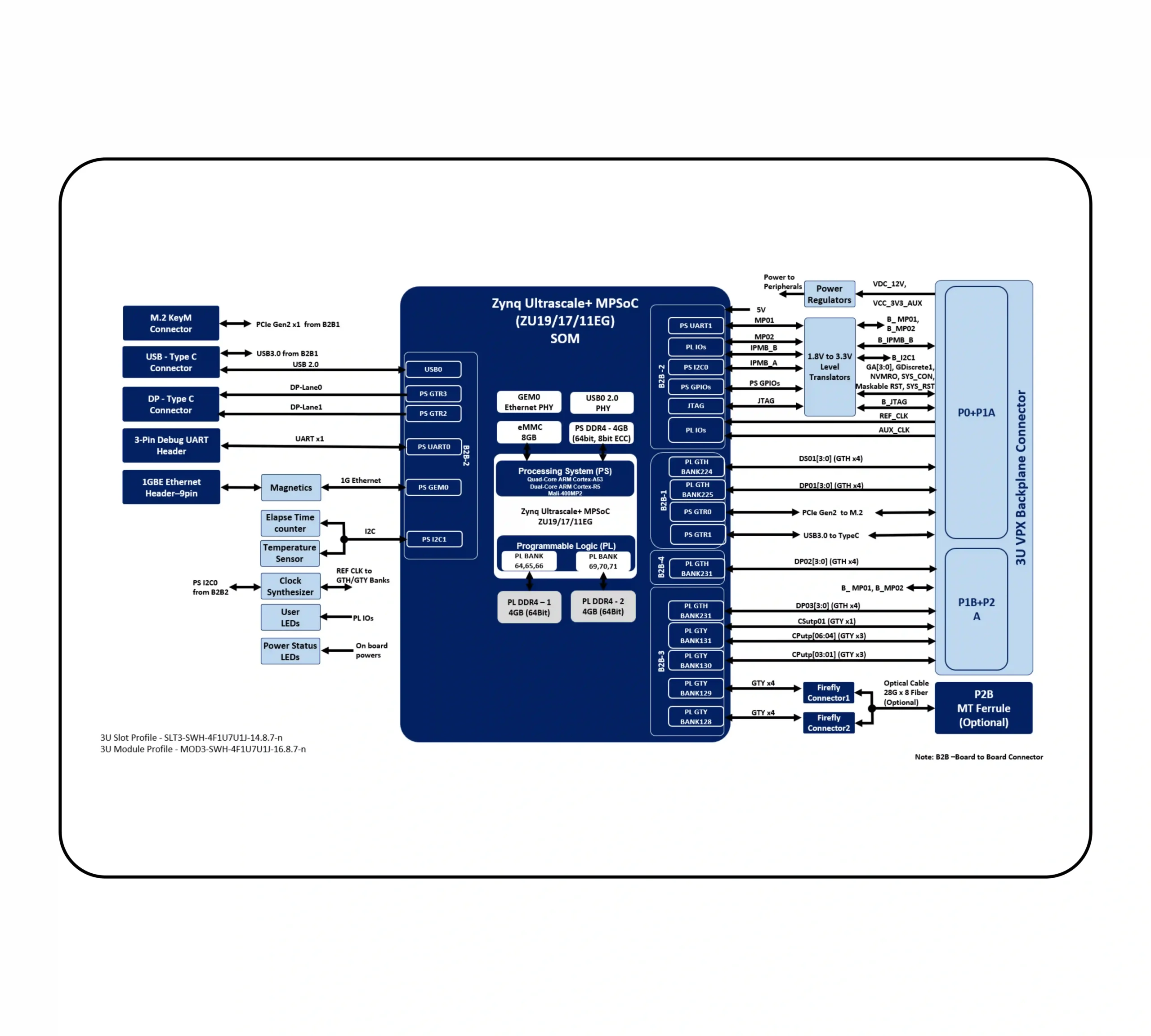

Zynq™ UltraScale+™ ZU19/ZU17/ZU11 MPSoC 3U VPX Plug-in Module

• • Quad/Dual Arm Cortex-A53 @1.5GHz, Dual Cortex-R5 @600MHz
  • Arm Mali-400MP2 GPU @677MHz

Programming Logic (PL/FPGA)

• • Up to 1143K Logic cells & 522K LUTs

• Data Plane Port
  • DP01[3:0] – 1G/2.5G/10G Ethernet or PCIe Gen3 (Using GTH Transceivers @up to 16Gbps/Lane)
• Data Switch Port
  • DP01[3:0] – 1G/2.5G/10G Ethernet or PCIe Gen3 (Using GTH Transceivers @up to 16Gbps/Lane)
• Utility Plane
  • System Control Signals (SYSRESET, NVMRO, SYS_CON, SM
    Bus, Geographic Address Field, JTAG)
  • System Reference Clocks (REF_CLK, AUX_CLK)
  • Bussed GPIO (GDiscrete1)
  • Power Input (12V VDC, 3.3V_AUX, VBAT)

3U VPX Connector (P1B+P2A)

• Data Plane Port
  • DP02[3:0] – 1G/2.5G/10G Ethernet (using GTH Transceivers
    @up to 16Gbps/lane)
  • DP03[3:0] – 1G/2.5G/10G Ethernet (using GTH Transceivers
    @up to 16Gbps/lane)
• Control Plane Port
  • CPutp[6:1] – 1G/2.5G/10G/25G Ethernet (using GTY Transceivers @up to 25Gbps/lane)
    CSutp – 1G/2.5G/10G/25G Ethernet (using GTY Transceivers @up to 25Gbps/lane)
• Utility Port
  • System Control Signals (Maskable Reset)
• Maintenance Port
  • MP01 and MP02

MT Ferrule Optical Connector (P2B)

• • 8 Fiber Optical Transceiver using two Firefly Connector (using GTY Transceivers @Upto 28.125Gbps)

• • USB3.0 & USB 2.0 through USB Type-C Connector x 1
  • 3-Pin Debug UART Header x 1
  • 4K Display Port through USB Type-C Connector x 1
  • 10/100/1000Mbps Ethernet through 9 Pin Header x 1

• • PCIe Gen2 x 1 through M.2(Key-M) Connector x 1
  • Temperature Sensor
  • Elapse Time Counter
  • Quad User LEDs
  • Reset Switch
  • Clock Synthesizer and Clock Buffers for GTY, GTH, and GTR
  • Transceiver Reference clocks

• • Module Profile: MOD3-SWH-4F1U7U1J-16.8.7-n
  • Slot Profile: SLT3-SWH-4F1U7U1J-14.8.7-n
  • Slot Pitch: 1 Inch Conduction Cooled
  • Power Supply: +12VDC +/- 5% input from VPX Connector
  • BSP Support: Linux
  • Operating Temperature: -40°C to +85°C
  • Form Factor: 3U VPX (160mm X 100mm)
  • Environment Specification: RoHS and REACH
  • Compliant & CE*
