Versal™ Prime
System on Module
iG-G57M®
- Versal™ Prime SoC Compatible with VM1102 device
- Up to 328K Logic cells & 150K LUTs
- Dual-core Arm Cortex-A72 (1.65GHz) + Cortex-R5F (800MHz)
- 8 GTYP Transceivers up to 32Gbps
- Compact 50mm x 60mm form factor
Documents

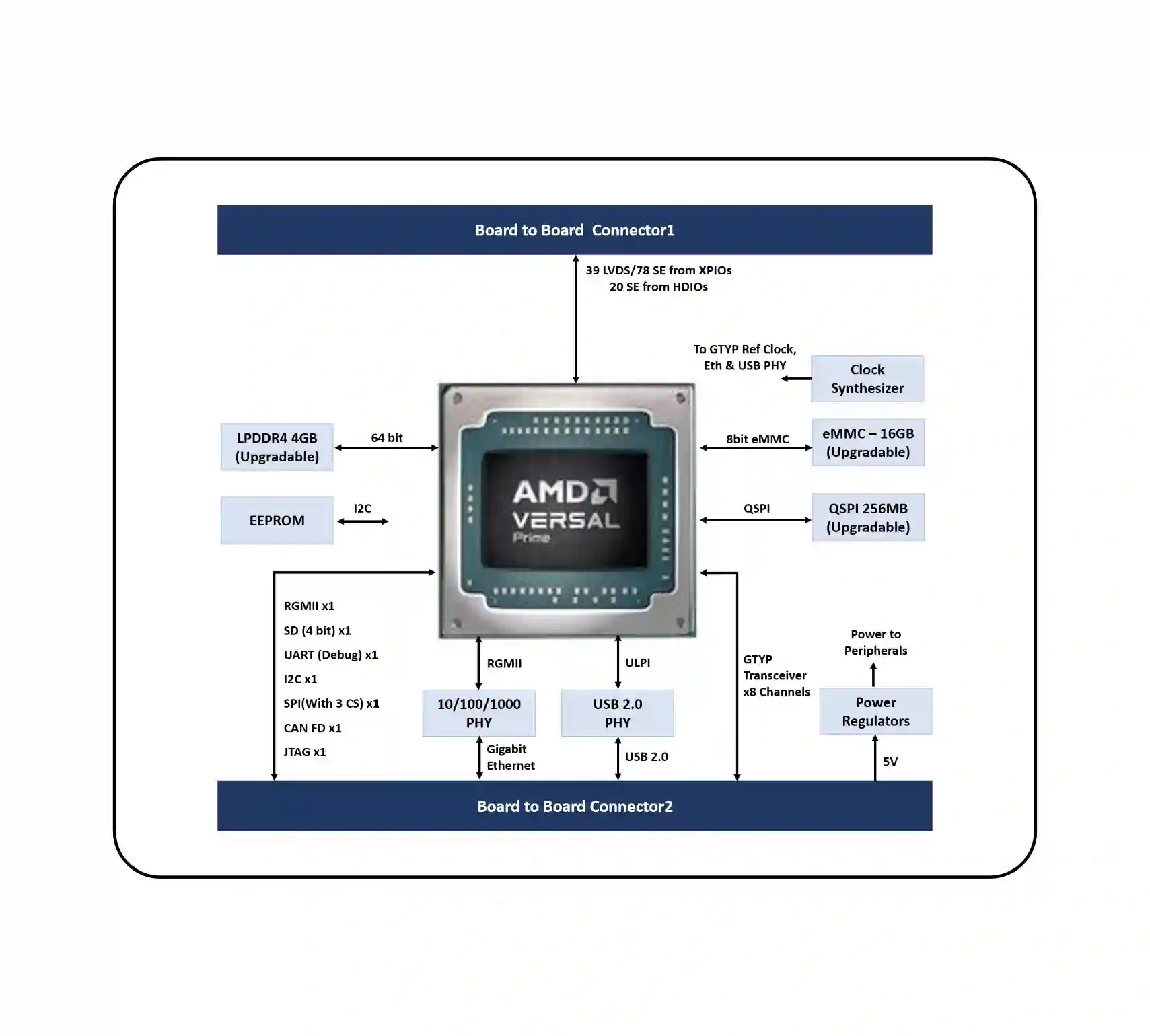

| Features | Details |
|---|---|
| SoC | VersalTM Prime SoC with SFVA784 package Compatible with VM1102 device Dual-core Arm Cortex-A72 @1.65GHz Dual-core Arm Cortex-R5F @800MHz Up to 328K Logic cells and 150K LUTs |
| Memory | 64bit 4GB LPDDR4 (Expandable) 2Kbit EEPROM |
| Storage | 16GB eMMC Flash (Expandable up to 128GB) 256MB QSPI Flash |
| Board to Board Connector Interfaces | From PL Block
From PS Block
|
| Other On SoM Features | 10/100/1000 Ethernet PHY USB Transceiver PHY 6-bit Clock Synthesizer and oscillators FAN Header |
| Software Features | Yocto / PetaLinux BSP with Vivado hardware support Linux driver support for PL (Programmable Logic) and DMA subsystems High-speed I/O and networking stack support (PCIe, Ethernet, etc.) RF data converter support (specific to Versal RF devices) Bare-metal and real-time low-latency application support Vitis development environment for acceleration |
| General Features |
|
- FMC+ High Serial Pin Count (HSPC) Connector
- 4K HDMI 2.0 IN and OUT through HDMI Connector
- 12G SDI Video IN and OUT through HD BNC Connector
- Dual Gigabit Ethernet through RJ45MagJack
- USB Type-C for JTAG and PS Debug port
- USB 2.0 Interface through USB Type C Connector
- Micro SD
- PMOD Connector
- 60 Pin GPIO Header (For PS IOs)
- Operating Temperature: -20°C to +70°C
- Form Factor: 120mm x 120mm
For any highly integrated System on Modules, thermal design is very important factor. iWave Supports Fan Sink solution for Versal Prime SoM.
FAQs
The AMD Versal™ Adaptive SoC is a next-generation adaptive computing platform that combines CPUs, programmable logic (FPGA), AI engines, DSP engines, and high-bandwidth networking on a single device.
Unlike traditional SoCs or FPGAs, Versal™ devices integrate multiple compute engines connected through a high-speed Network-on-Chip (NoC). This architecture allows developers to run AI, signal processing, and embedded applications efficiently in a single platform.
Yes. Versal™ AI Edge devices integrate AI engines and programmable logic to accelerate machine learning inference, vision processing, and real-time analytics. This makes them ideal for edge AI applications where low latency and high performance are required.
Versal™ SoM platforms support multiple high-speed interfaces including PCIe Gen4 and Gen5, Ethernet connectivity, and multi-gigabit transceivers that can reach speeds up to 112 Gbps depending on the device family.
Yes. With support for high-speed transceivers, PCIe Gen5, and MAC interfaces up to 600G, Versal™ SOM platforms are well suited for networking, data processing, and communication infrastructure applications.
Versal™ devices are more advanced than traditional FPGAs because they combine multiple processing engines in a single platform. They integrate CPUs, programmable logic, AI engines, and DSP blocks to handle different types of workloads efficiently.
Key benefits include:
- Heterogeneous compute architecture for flexible processing
- Software-programmable acceleration for faster development
- High-bandwidth and deterministic data movement
- Integrated high-speed transceivers for multi-gigabit connectivity
- Scalable platform for AI, networking, and embedded applications
