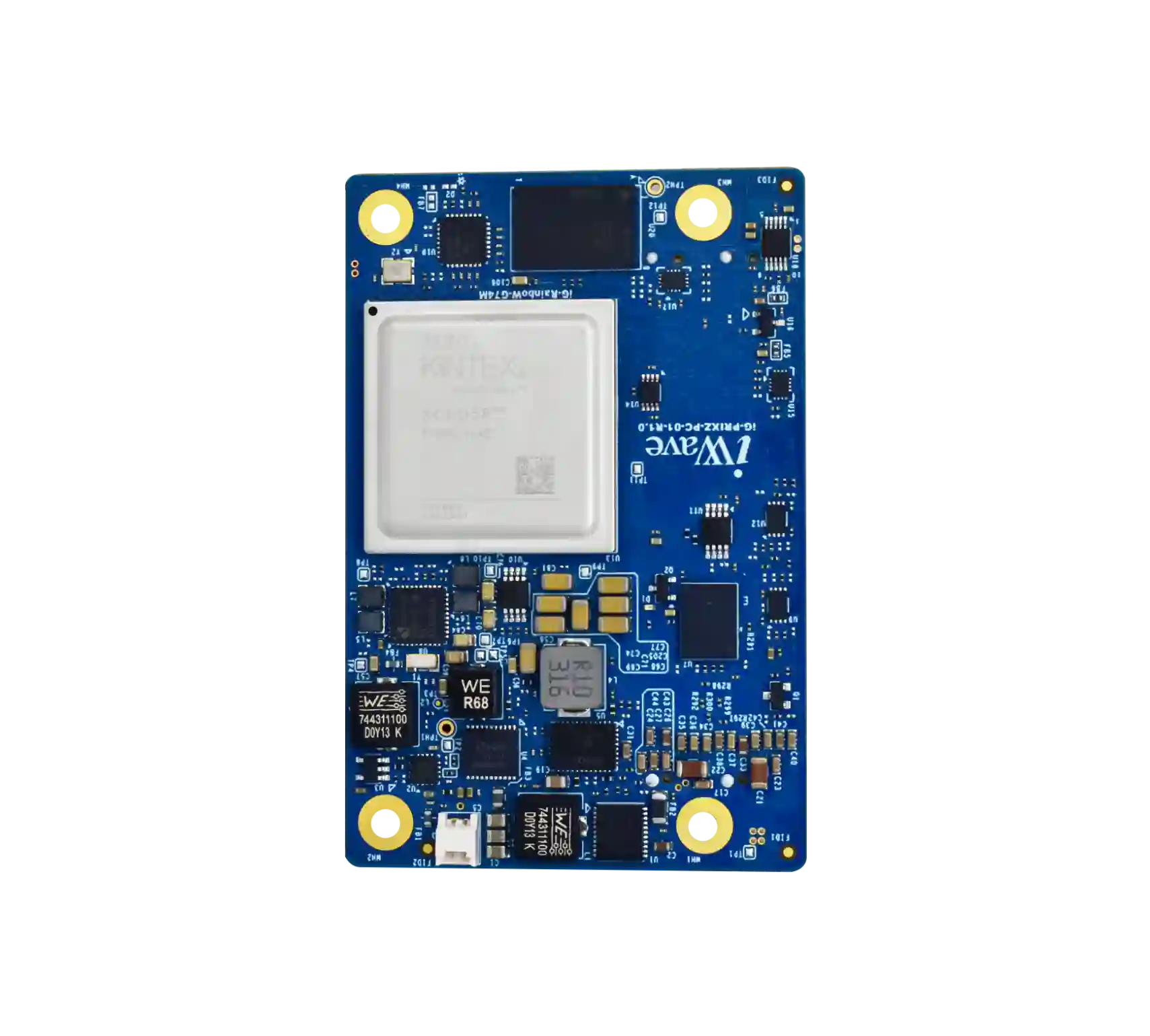

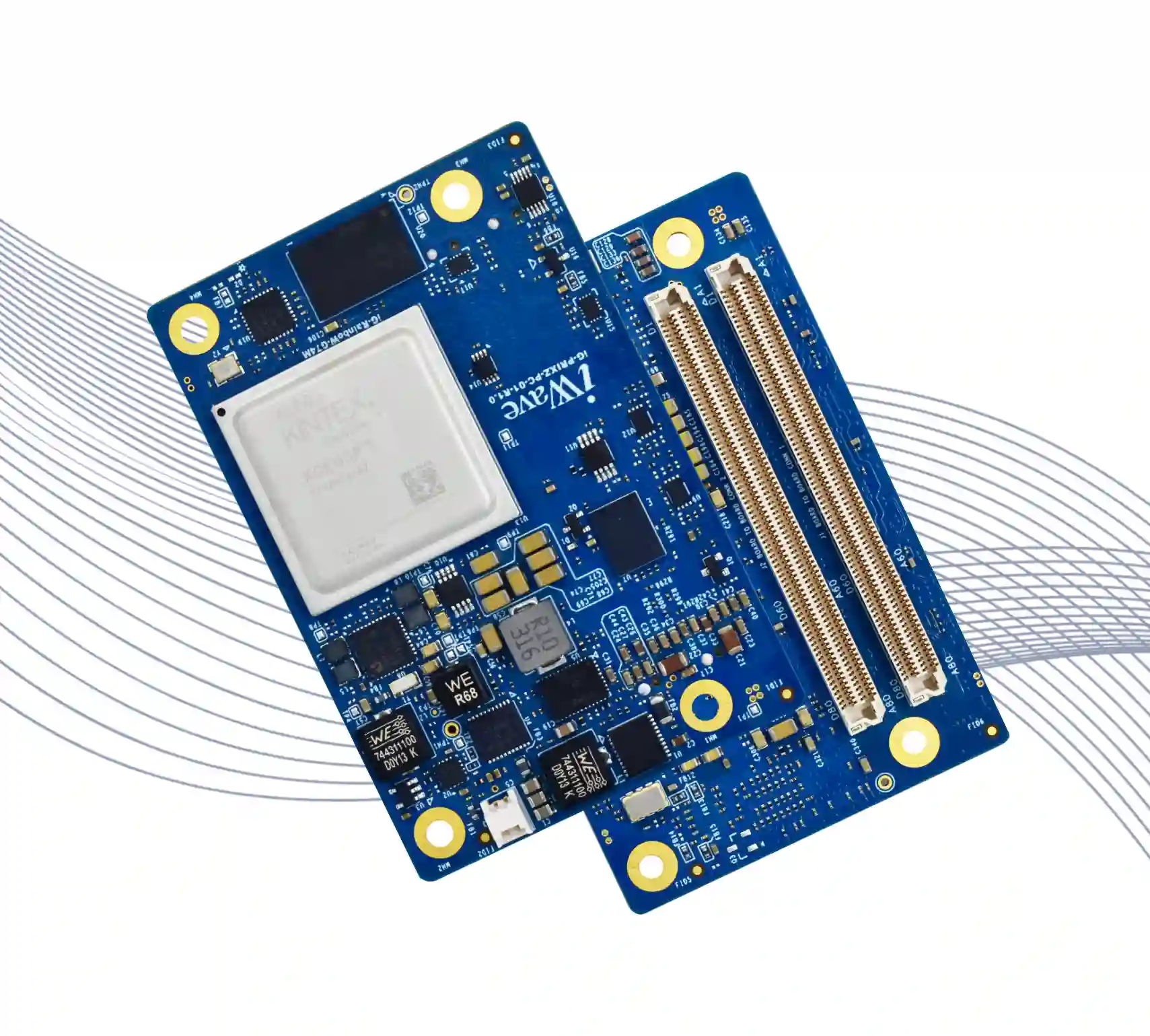

Kintex™ Ultrascale+™ FPGA
System on Module
iG-G74M®
- AMD Kintex™ Ultrascale+™ SOM with FFVB676 package
- Compatible with KU5P/KU3P
- Up to 474K Logic cells & 216K LUTs
- 256MB QSPI Flash
- 16 channels of GTY transceivers up to 32.75Gbps

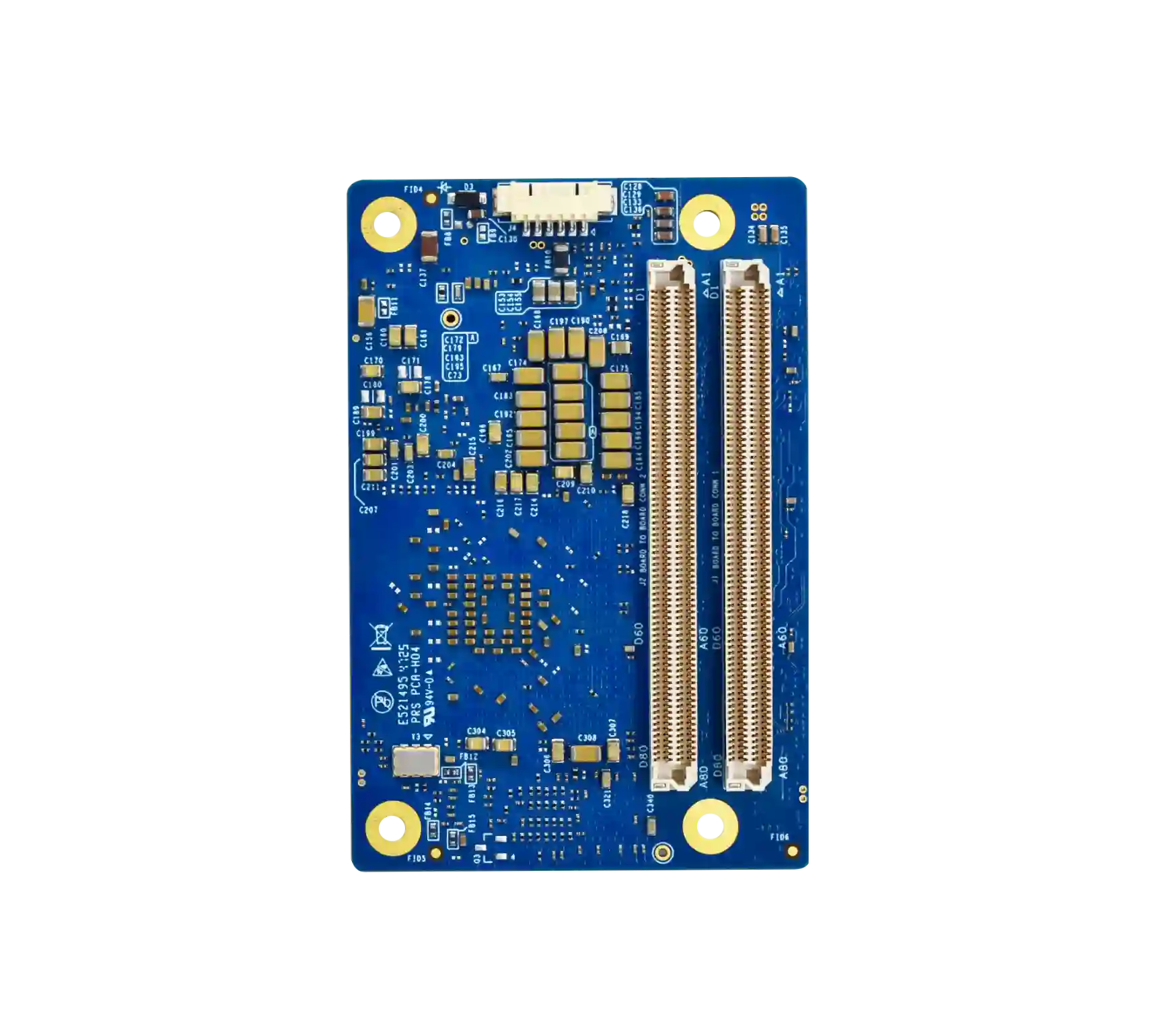

- Two 320pin High Speed B2B Connectors
Documents

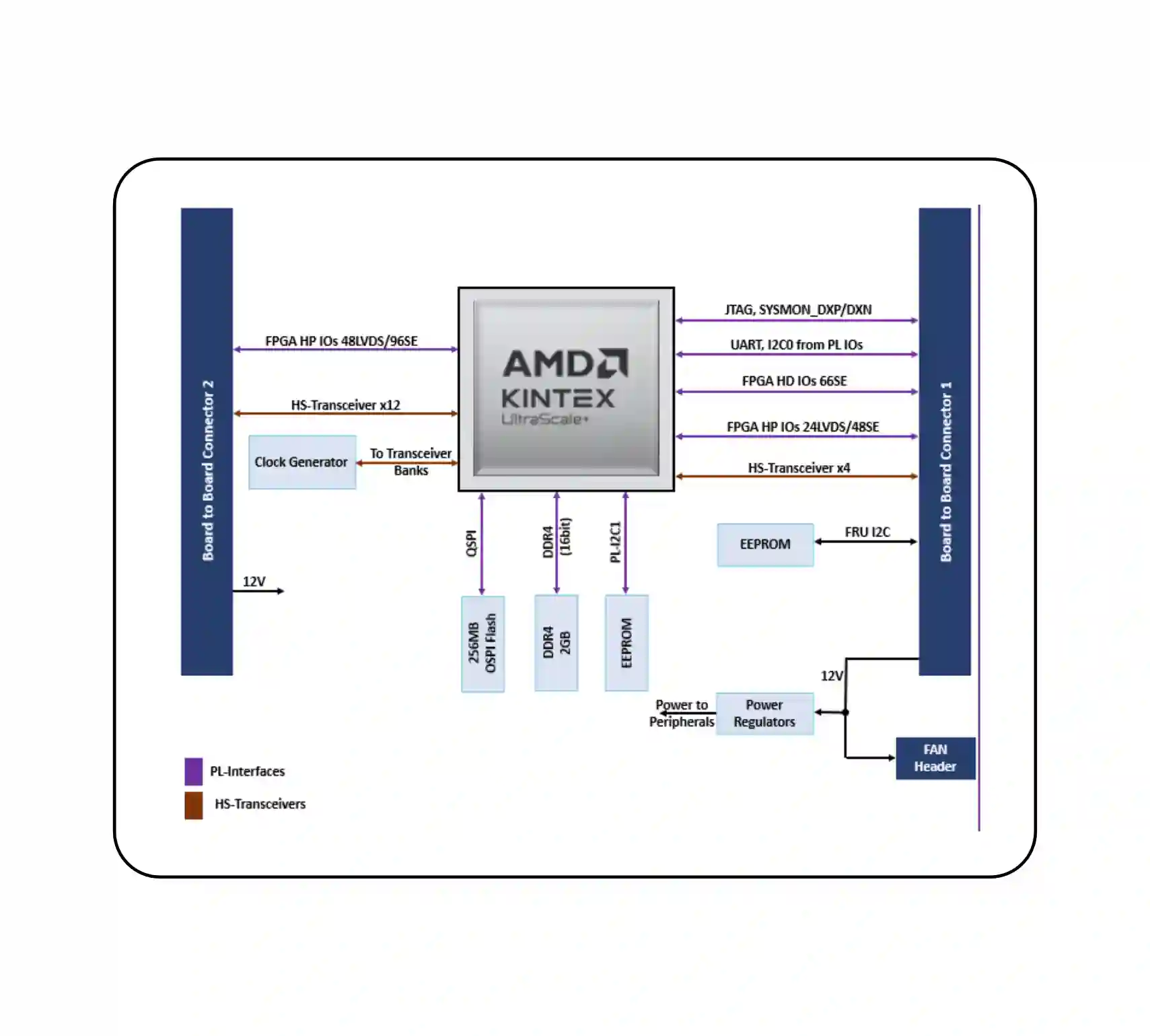

| Features | Details |
|---|---|
| Kintex™ UltraScale™ + FPGA | AMD Kintex US+ SOM with FFVB676 package Compatible with KU5P/KU3P Up to 474K Logic cells & 216K LUTs GTY Transceivers x 16 @32.75Gbps 72LVDS/144SE and 66 SE IOs |
| Memory & Storage | 16-bit 2GB-DDR4 from HP-BANK 67 256MB QSPI Flash |
| PMIC | Dialog’s DA9062 PMIC with RTC |
| Clock | Clock Synthesizer |
| Board to Board Connector1 Interfaces(320pin) | 4 channels of GTY transceivers up to 32.75Gbps 24LVDS/48SE IOs from HP-BANK 64 18SE IOs from HD-BANK 87 24SE IOs from HD-BANK 86 24SE IOs from HD-BANK 84 JTAG SYSMON_DXP/DXN,UART,I2C |
| Board to Board Connector2 Interfaces(320pin) | 12 channels of GTY transceivers up to 32.75Gbps 24LVDS/48SE IOs Pairs from HP-BANK 65 24LVDS/48SE IOs Pairs from HP-BANK 66 |
| BSP Support | Vivado 24.2 |
