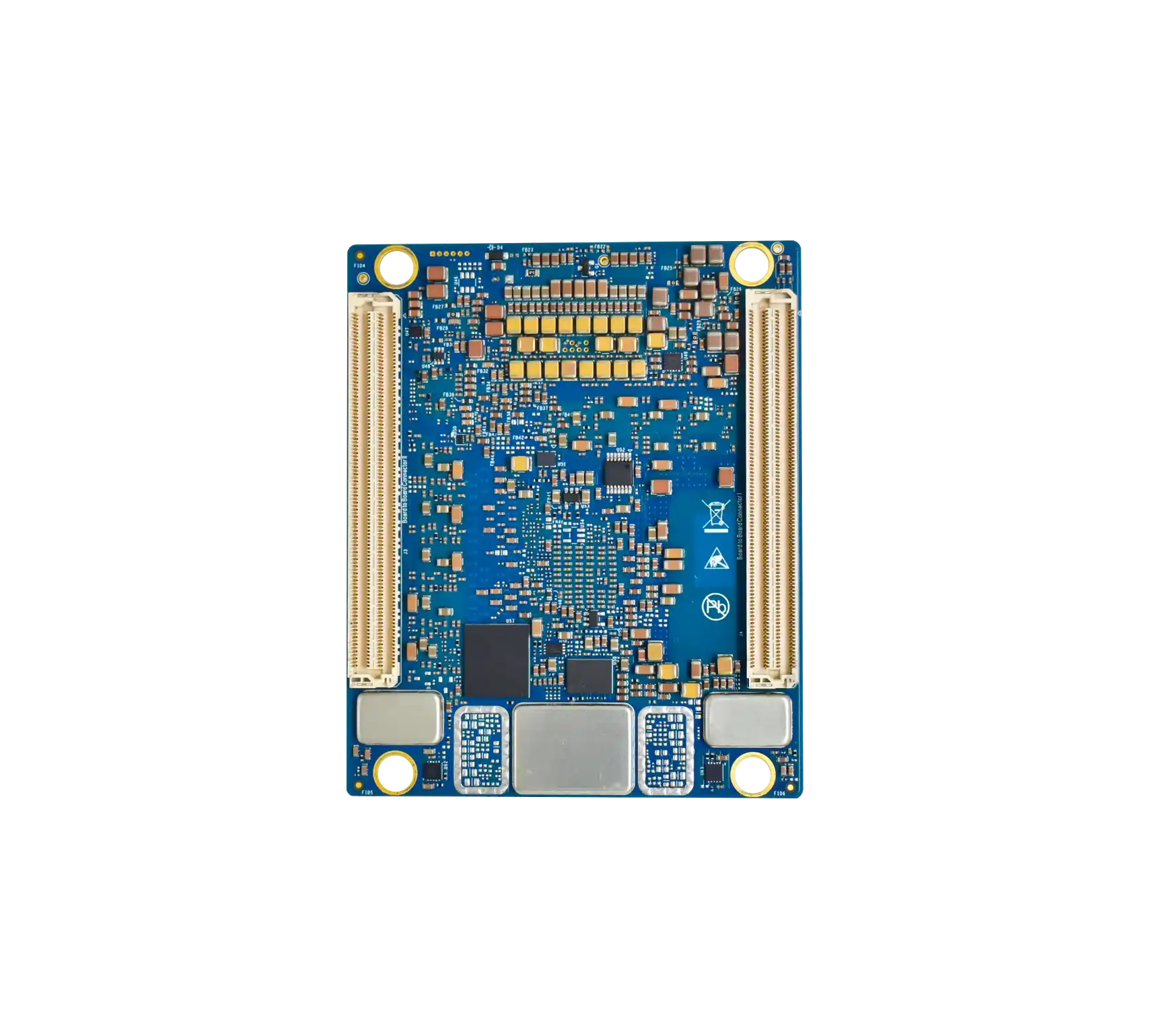

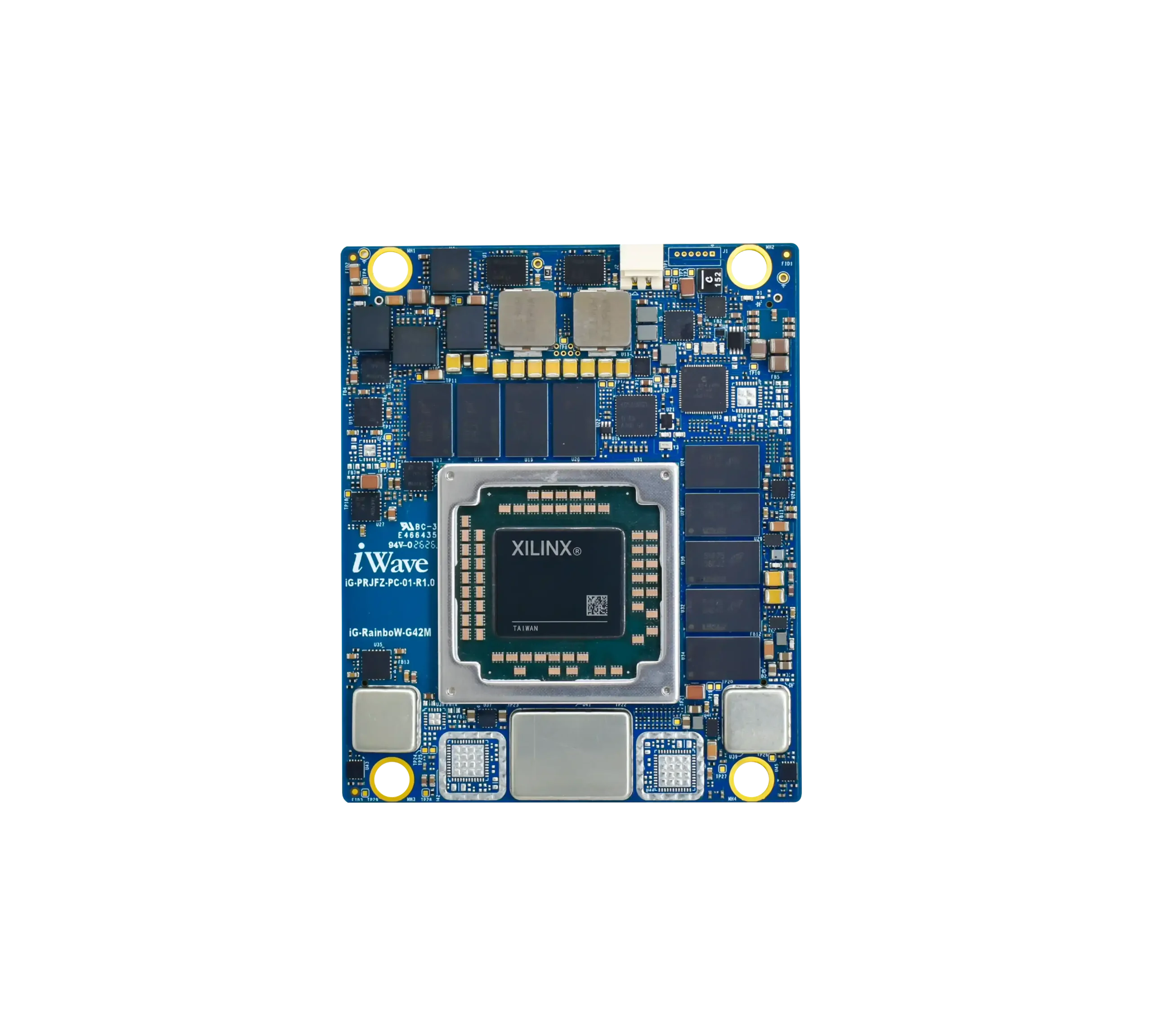

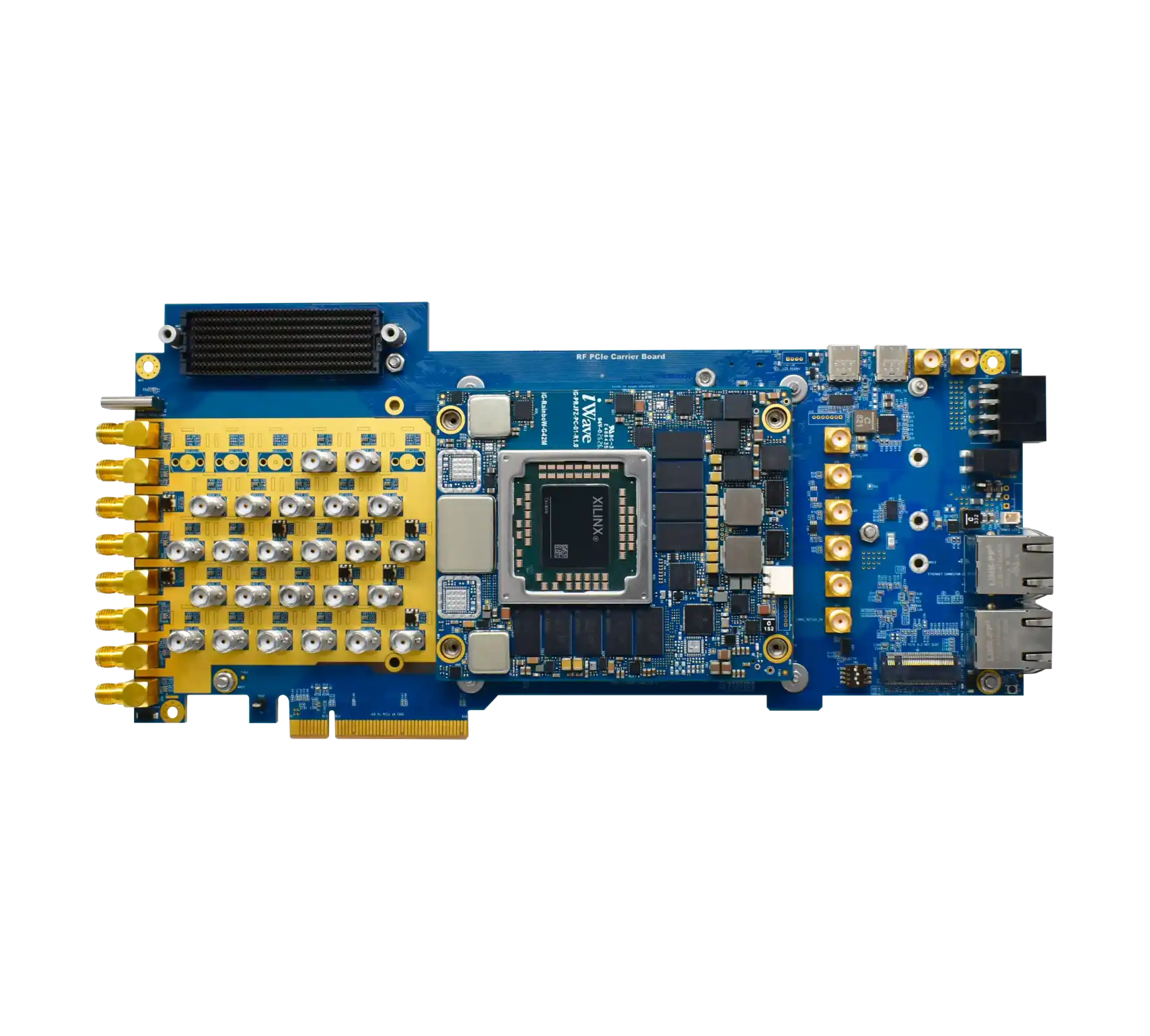

Zynq™ UltraScale+™ XQ RFSoC 49DR System on Module – MIL Grade

• Quad-core Arm Cortex-A53 up to 1.3 GHz
• Dual-core Arm Cortex-R5F embedded processors up to 533MHz.

Programmable Logic (PL)

• Up to 930K Logic elements
• 16x transceivers up to 28.21Gbps

• HP Bank IOs – up to 72LVDS/144SE
• HD Bank IOs – up to 24LVDS/48SE

• 16 x PL-GTY High Speed Transceivers (up to 28.21Gbps)
• PL Control Signal

From PS Block

• Gigabit Ethernet x 1 Port (through On-SOM Gigabit Ethernet PHY)
• USB 2.0 OTG x 1 (through On-SOM USB2.0 transceiver – Optional)
• SPI/QSPI X 1 Port (Optional)
• CAN x 1, I2C x 2, SD x 1
• Debug UART x 1, Data UART x 1
• PS JTAG
• RGMII Interface or ULPI Interface x 1
• PS -GTR High speed Transceivers x 4 (upto 6Gbps)
• PS-Control Signals
• SYSMON(Optional)

Clock signals

• 10MHz Clock IN, SYS_SYNC_CLK IN, (1PPS IN- Optional)
• 10 MHz Clock out, 1PPS Clock Out (Optional).
