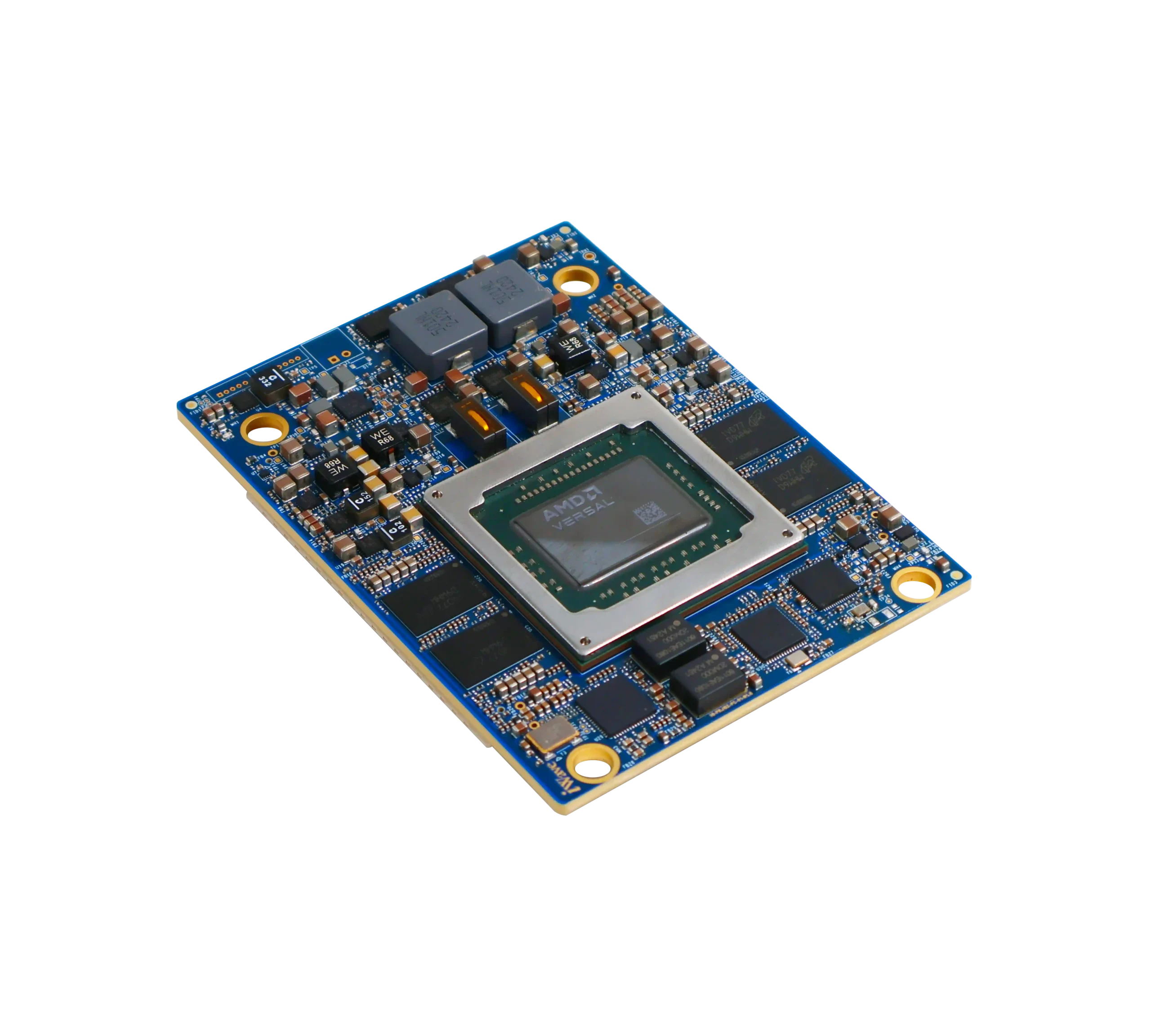

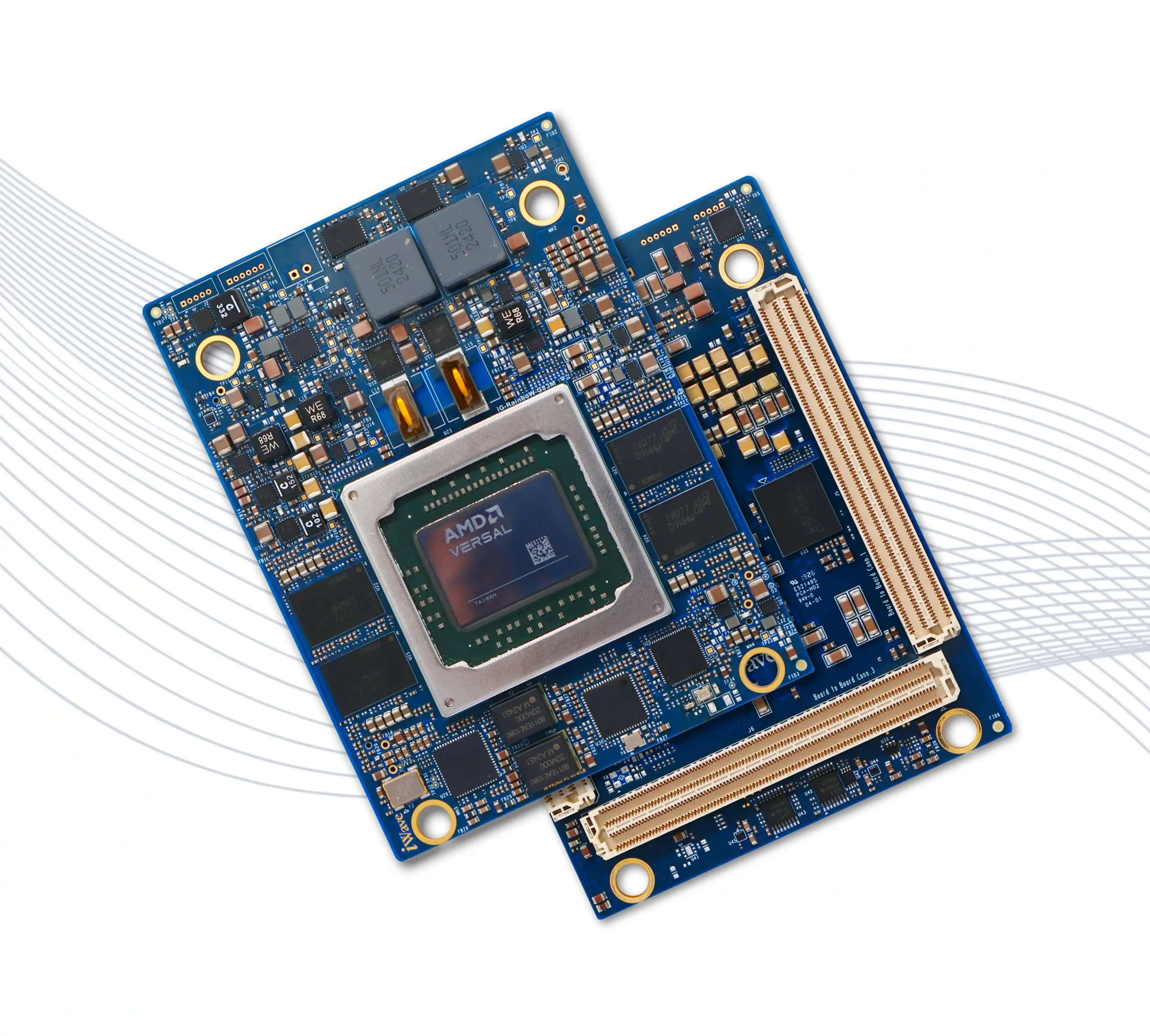

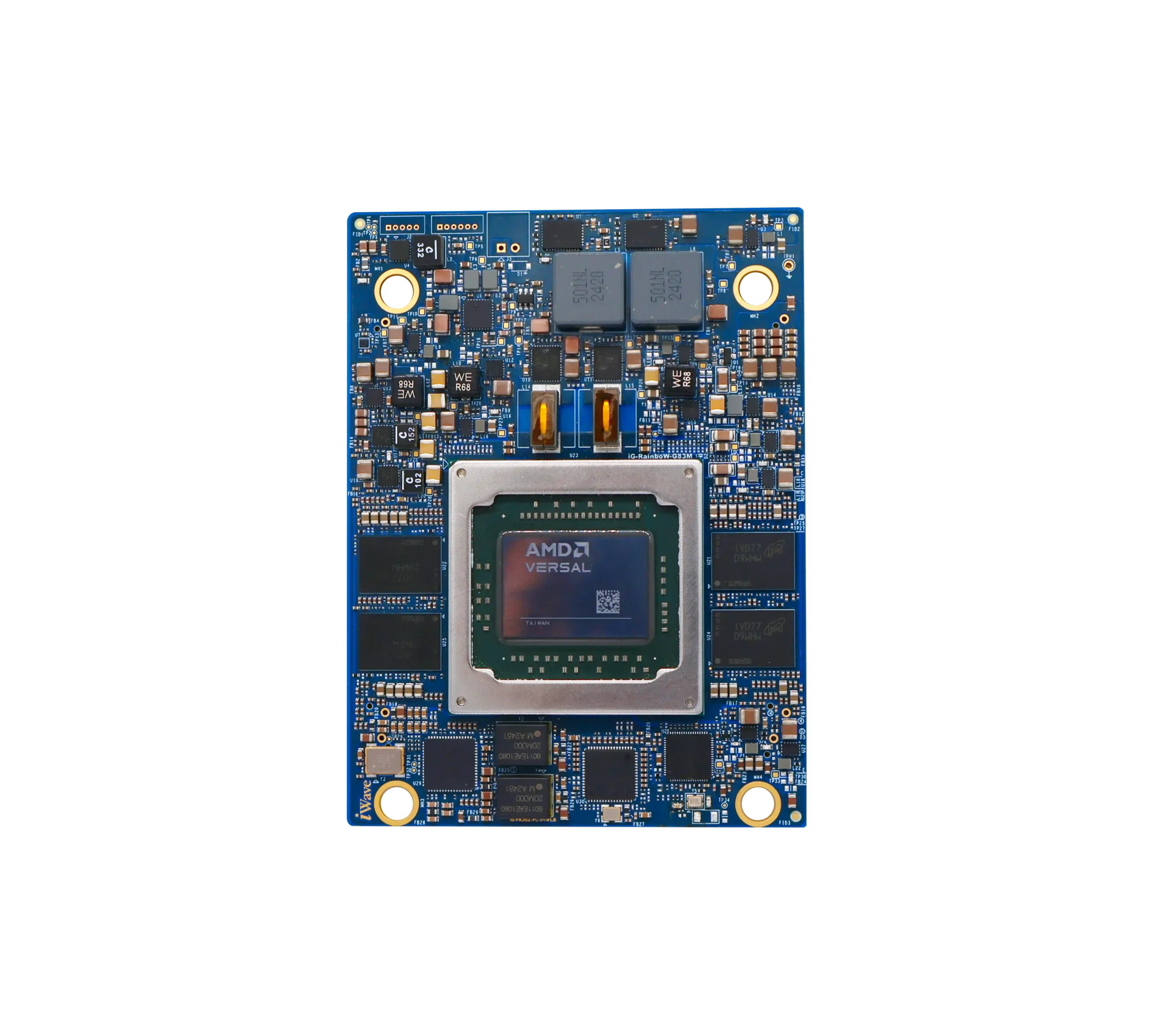

Versal™ AI Core
System on Module
iG-G83M®
- Compatible with Versal AI Core SoC devices: VC1502, VC1702, VC1802, VC1902
- 1,968K Logic cells & 899.84K LUTs for high-performance AI and FPGA workloads
- 144 LVDS Pairs/288 SE FPGA XPIOs
- 44 SE FPGA HDIOs
- 44 GTY channels up to 28.21Gbps for fast data transfer
- Form Factor: 82mm x 110mm
Documents

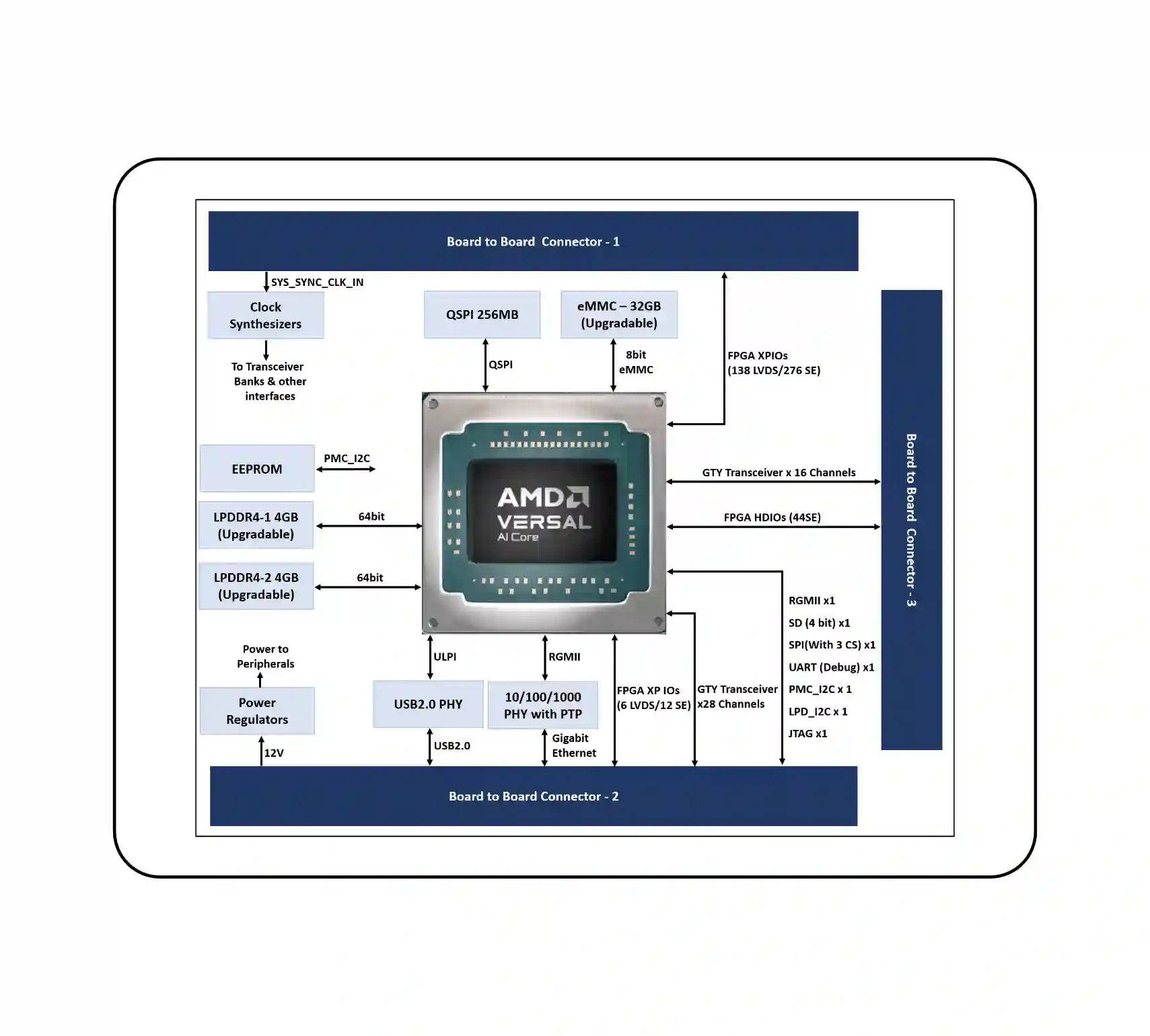

| Features | Details |
|---|---|
| SoC | Versal AI Core SoC compatible with VC1502, VC1702, VC1802, and VC1902 devices Dual-core Arm Cortex-A72 and Cortex R5F 144 LVDS Pairs/288 SE FPGA XPIOs 44 SE FPGA HDIOs 44 channels of GTY transceivers up to 28.21Gbps |
| Memory & Storage | Two 64bit, 4GB LPDDR4 (Expandable)1 256MB QSPI Flash 32GB eMMC Flash (Expandable) EEPROM |
| Other Features | 10/100/1000 Ethernet PHY with PTP USB2.0 PHY Clock Generator |

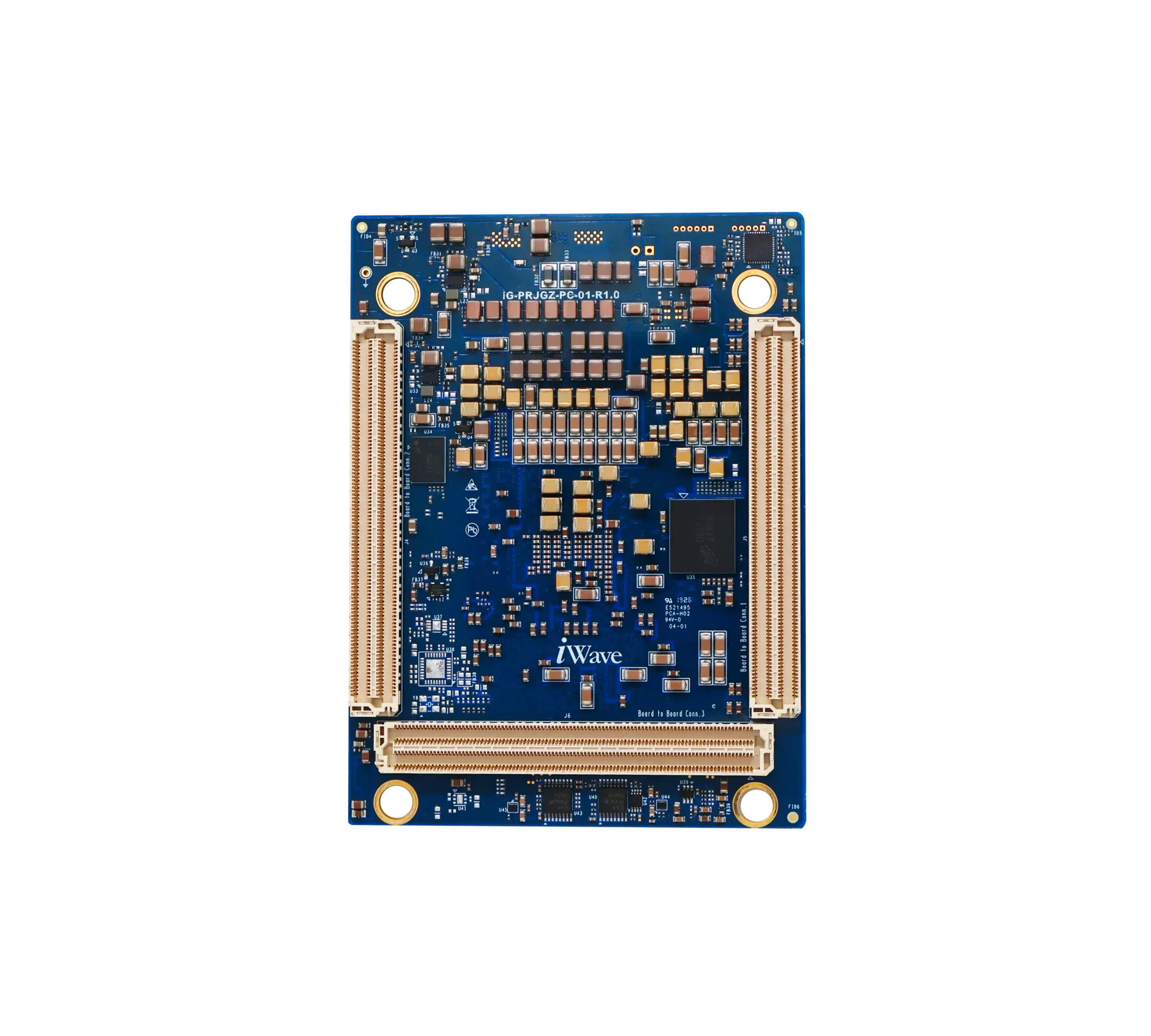

| Board to Board Connector1 | 138 LVDS Pairs/276 SE XPIOs |
| Board to Board Connector2 Interfaces (400pin) | 6 LVDS pairs/12 SE XPIOs USB2.0 x 1 1G Ethernet x 1 RGMII x 1 SD (4-bit) x 1 SPI (with 3-CS) x 1 I2C x 2 CAN FD x 1 (Optional) Debug UART x 1 JTAG x1 GTY Channels x 283 |
| Board to Board Connector3 Interfaces (400pin) | 44 SE FPGA HDIOs GTY Channels x 16 |
| Software Features | Yocto / PetaLinux BSP with Vivado support PL, AIE & DMA Linux driver support Vitis AI toolchain for AIE/AIE-ML Pre-validated AI vision examples Bare-metal low-latency support Vitis AI runtime for AI deployment |
| General Features |
|
Notes:
1VC1502/VC1702 SoC based SOM supports only 1x 64bit, 4GB LPDDR4
2VC1502 SoC based SOM supports only 22 SE HDIOs
3VC1502 SoC based SOM supports only 8 GTY transceivers
FAQs
The AMD Versal™ Adaptive SoC is a next-generation adaptive computing platform that combines CPUs, programmable logic (FPGA), AI engines, DSP engines, and high-bandwidth networking on a single device.
Unlike traditional SoCs or FPGAs, Versal™ devices integrate multiple compute engines connected through a high-speed Network-on-Chip (NoC). This architecture allows developers to run AI, signal processing, and embedded applications efficiently in a single platform.
Yes. Versal™ AI Edge devices integrate AI engines and programmable logic to accelerate machine learning inference, vision processing, and real-time analytics. This makes them ideal for edge AI applications where low latency and high performance are required.
Versal™ SoM platforms support multiple high-speed interfaces including PCIe Gen4 and Gen5, Ethernet connectivity, and multi-gigabit transceivers that can reach speeds up to 112 Gbps depending on the device family.
Yes. With support for high-speed transceivers, PCIe Gen5, and MAC interfaces up to 600G, Versal™ SOM platforms are well suited for networking, data processing, and communication infrastructure applications.
Versal™ devices are more advanced than traditional FPGAs because they combine multiple processing engines in a single platform. They integrate CPUs, programmable logic, AI engines, and DSP blocks to handle different types of workloads efficiently.
Key benefits include:
- Heterogeneous compute architecture for flexible processing
- Software-programmable acceleration for faster development
- High-bandwidth and deterministic data movement
- Integrated high-speed transceivers for multi-gigabit connectivity
- Scalable platform for AI, networking, and embedded applications
