Artix™ UltraScale+™ FPGA
System on Module
iG-G74M®
- Artix™ UltraScale™ + FPGA SOM with FFVB676 package
- Compatible with AU25P / AU20P / AU15P / AU10P
- Up to 308K Logic cells & 141K LUTs
- 256MB QSPI Flash
- 12 channels of GTY transceivers up to 16.375Gbps
- Two 320pin High Speed B2B Connector
Documents

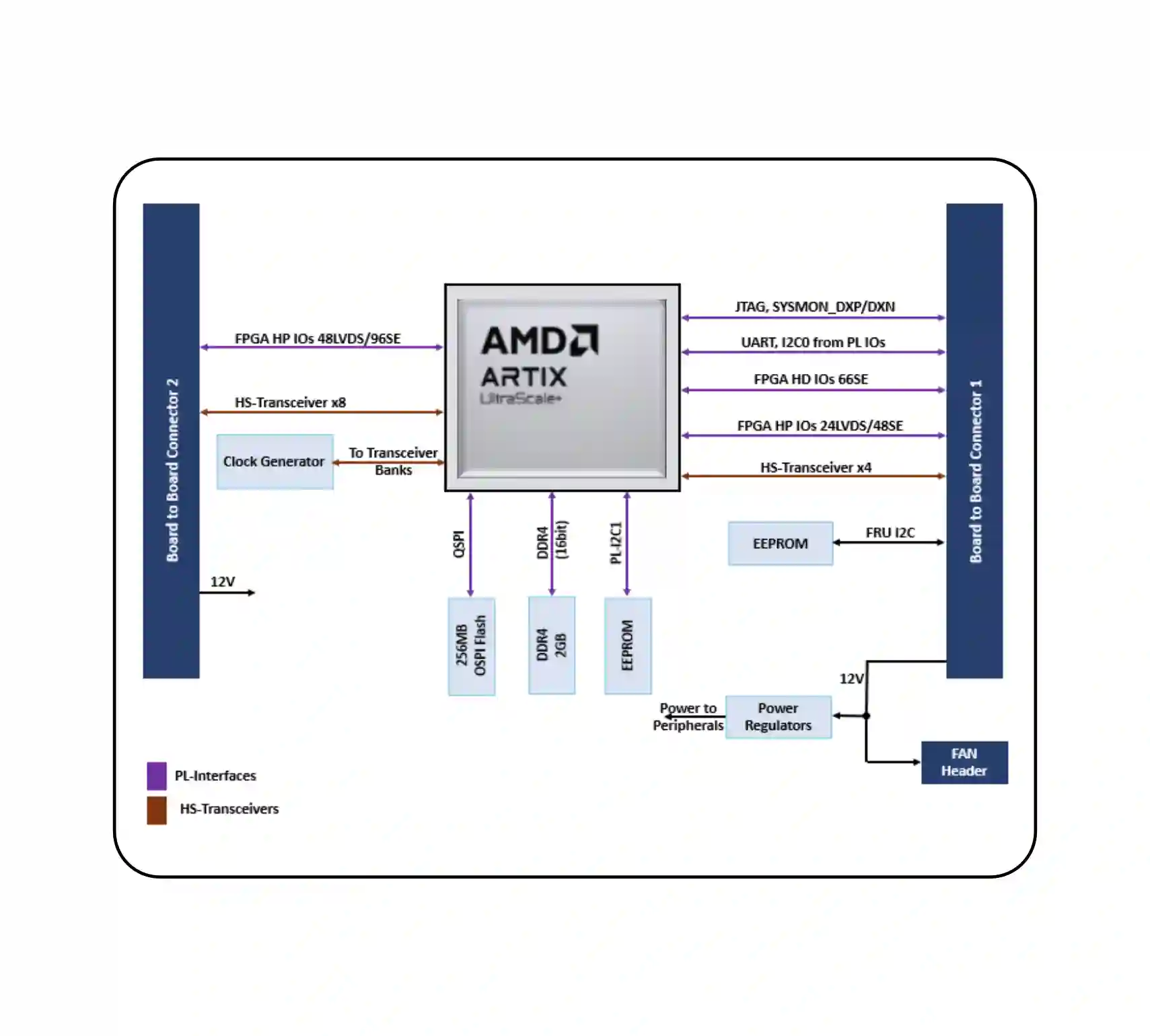

| Features | Details |
|---|---|
| Artix™ UltraScale™ + FPGA | Artix US+ SOM with FFVB676 package Compatible with AU25P / AU20P / AU15P / AU10P Up to 308K Logic cells & 141K LUTs GTY Transceivers x 12 @16.375Gbps 72LVDS IOs/144SE IOs and 66SE IOs |
| Memory & Storage | 16-bit 2GB-DDR4 (supports only AU25P) 256MB QSPI Flash 2Kb EEPROM |
| PMIC | Dialog DA9062 PMIC with RTC |
| Clock | Clock Synthesizer |
| Board to Board Connector1 Interfaces(320pin) | 4 channels of GTY transceivers up to 16.375Gbps 24LVDS/48SE IOs from HP-BANK 64 18SE IOs from HD-BANK 87 24SE IOs from HD-BANK 86 24SE IOs from HD-BANK 84 JTAG SYSMON_DXP/DXN,UART,I2C |
| Board to Board Connector2 Interfaces(320pin) | 8 channels of GTY transceivers up to 16.375Gbps 24LVDS/48SE IOs Pairs from HP-BANK 65 24LVDS/48SE IOs Pairs from HP-BANK 66 |
| BSP Support | Vivado 24.2 |
| General Features |
|
