Virtex™ UltraScale+™ System on Module
iG-G47M®
- Virtex™ UltraScale+™ FPGA with B2104 package
- Dual 4GB FPGA-DDR4 with ECC (64bit + 8bit)
- 48 channels of FPGA GTY transceivers up to 32Gbps
- Dual ARM Cortex-A7 core processor of 1.2GHz speed
- 2GB DDR4 for CPU with ECC (32bit+4bit)
- 46 LVDS/172SE FPGA IOs
Documents
Design Support
Application Notes
Software

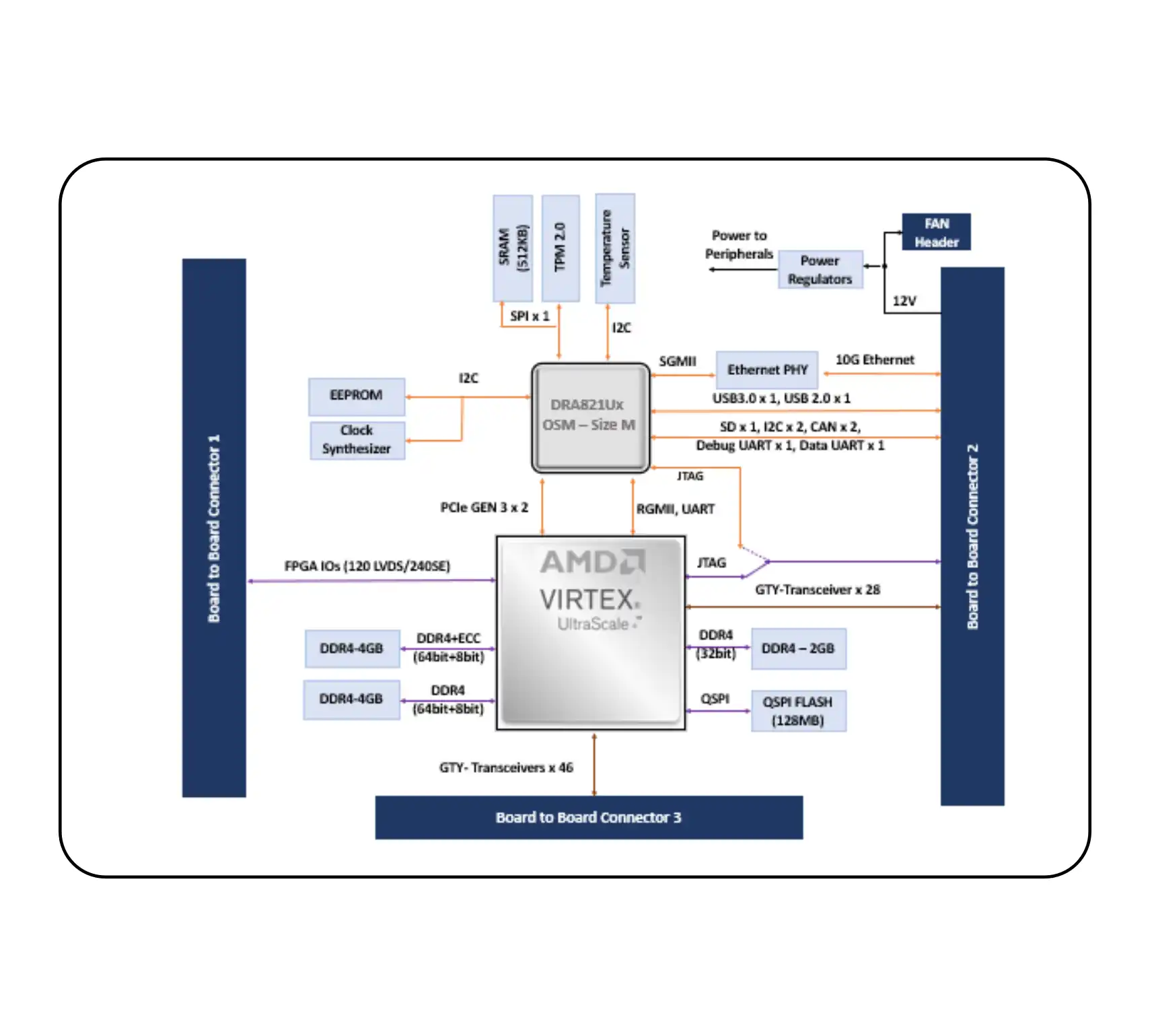

| Features | Details |
|---|---|
| SoC/FPGA | Virtex™ UltraScale+™ FPGA with B2104 Package Compatible with Virtex™ UltraScale+™: VU13P, VU11P, VU9P, VU7P, VU5P devices and Virtex™ UltraScale™: VU080, VU095, VU125, VU160, VU190 devices System Logic cells up to 3,780K Logic cells and up to 3,456K Configurable Logic Blocks Gen3 x16 Integrated PCIe block 100G Ethernet MAC cores for high-speed connectivity |
| CPU | Dual Arm Cortex-A7 core processor Operation frequency of 1.2GHz High-speed SerDes(PCIe/SATA/SGMII) x 4 |
| Memory | Dual 64bit, 4GB DDR4 with 8bit ECC for FPGA 32bit, 2GB DDR4 with 8bit ECC for CPU 512KB SRAM via SPI 16bit, 4MB MRAM for CPU |
| Storage | 128MB QSPI Flash for FPGA 16bit, 256MB NOR Flash for CPU |
| FPGA to CPU Interfaces | RGMII x1 UART x1 PCIe x1 Gen2 (Optional) |
| Board to Board Connector Interfaces | From FPGA:
From CPU:
|
| Other On SOM Features | TPM2.0 module Gigabit Ethernet PHY Transceiver Temperature Sensor Clock Synthesizer Fan Header |
| General Features |
|
- QSFP28/QSFP+/QSFP Connector for 40G/100G
- SFP+ Connector x1
- FireFly Connector x 1
- SDI IN/OUT Connector X1
- HDMI IN/OUT Connector X1
- PMOD Connector x 2
- FMC High Pin Count (HPC) Connector x1
- FMC+ High Pin Count (HPC) Connector x1
- M.2 SATA Connector x1
- PCIe Gen2 Connector via x4 connector from CPU
- USB2.0 OTG through Micro AB Connector x 1 from CPU
- USB 3.0 through Type-C Connector x 1 from CPU
- Gigabit Ethernet through RJ45MagJack x 1 from CPU
- Debug UART through USB Micro AB Connector x 1 from CPU
- Operating Temperature: -20°C to +70°C
- Form Factor: 140mm X 170mm
Thermal design is a crucial factor for highly integrated System on Modules. iWave offers Heat Spreader and Fan Sink solutions for Virtex SoMs to ensure optimal thermal management.
Buy now
| Description | Stock | Order link |
|---|---|---|
| VU13P Virtex System on module | 60 | Digikey |
| VU13P Virtex Development Kit | 10 | Digikey |
| VU9P Virtex System on module | 10 | Digikey |
| VU9P Virtex Development Kit | 5 | Digikey |
| VU7P Virtex System on module | 10 | Digikey |
| VU7P Virtex Development Kit | 3 | Digikey |
| VU13P Virtex System on module | Backorder | Mouser |
| VU13P Virtex Development Kit | Backorder | Mouser |
| VU9P Virtex System on module | Backorder | Mouser |
| VU9P Virtex Development Kit | Backorder | Mouser |
| VU7P Virtex System on module | Backorder | Mouser |
| VU7P Virtex Development Kit | Backorder | Mouser |
