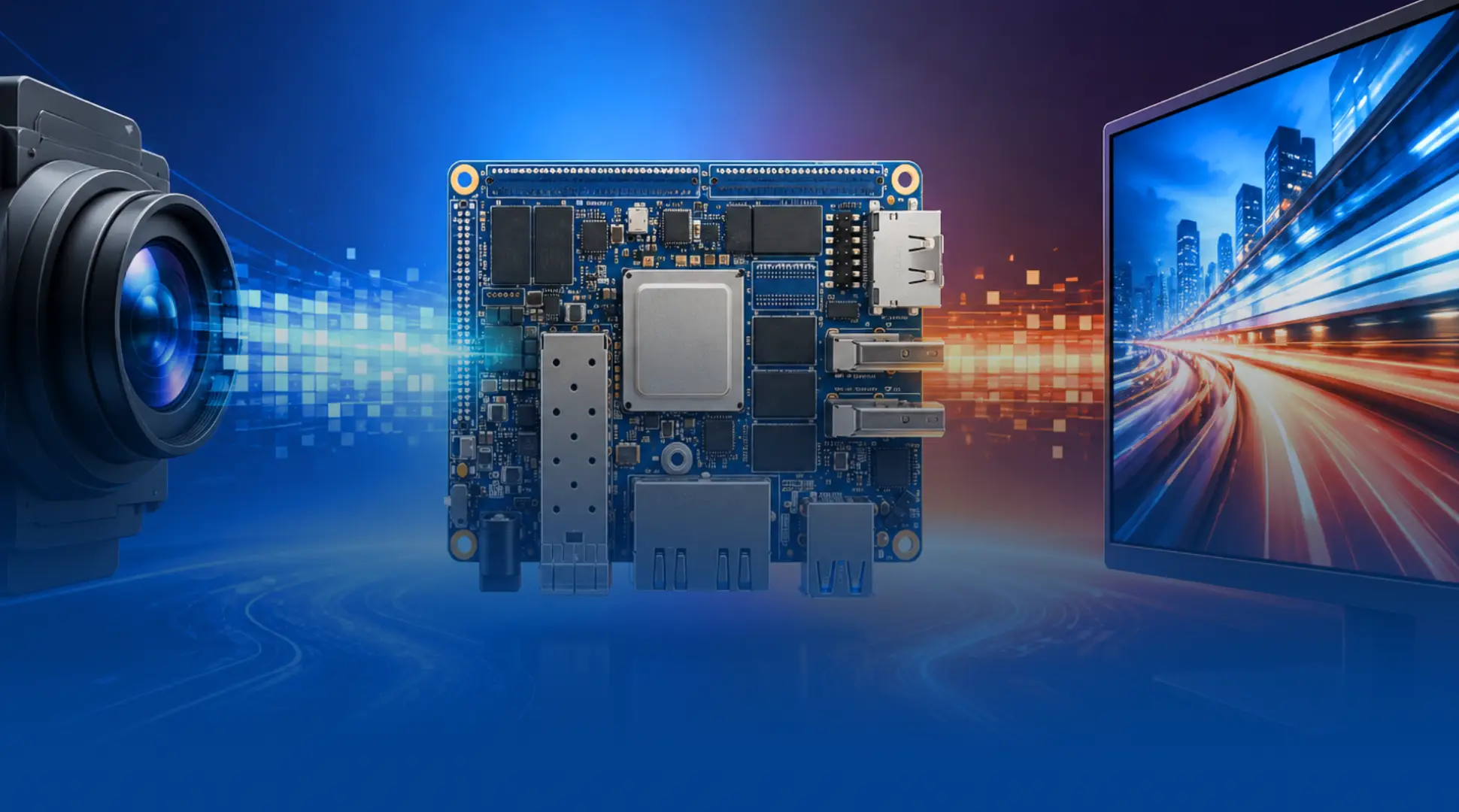

Zynq™ UltraScale+™ ZU5/ZU4/ZU3/ZU2 MPSoC Single Board Computer
iG-G36S®
- Compatible with ZU5/4/3/2 CG/EG/EV devices
- Up to 256K Logic Cells
- 2GB DDR4 with ECC for PS (Expandable), 1GB DDR4 for PL, 8GB eMMC Flash (Expandable)
- Wi-Fi 5 & Bluetooth 5.0 Wireless Connectivity
- 2 x Gigabit Ethernet, 2 x USB 3.0
- One 10G Ethernet & Dual 1G Ethernet
Documents
| Features | Details |
|---|---|
| ZU5/ZU4/ZU3/ZU2 – Zynq Ultrascale+ MPSoC | Processing System (PS)
Programming Logic (PL)
|
| RAM Memory | 64bit, 2GB DDR4 with ECC for PS (Upgradable up to 8GB) 32bit, 1GB DDR4 for PL (Upgradable up to 4GB) 8GB eMMC Flash (Upgradable) Micro SD Connector# EEPROM for MAC Address |
| Memory Interfaces | 256MB QSPI Flash for boot & storage (Optional) 16GB eMMC Flash for boot & storage (Expandable up to 128GB) EEPROM (4Kbit) |
| Features from PS | WLAN 802.11a/b/g/n/ac & BT 5.0 Combo Module with Antenna connector Dual 10/100/1000Mbps Ethernet through RJ45 Magjack Dual USB3.0 Type A Jack DP 1.2a Display Port Connector 2 Key B Connector with SATA 3.1& USB3.0 Debug UART Header JTAG Header RTC Coin cell Header |
| Features from PL GTH Transceivers* | 4K HDMI 2.0 Output Connector 4K HDMI 2.0 Input Connector 10G Ethernet through SFP+ Connector 12G SDI Input through BNC Jack# 12G SDI Output through BNC Jack# |
| Board to Board Connectors | PS Interfaces
PL Interfaces
|
| OS Support | Linux BSP – Petalinux 2022.2 Baremetal BSP – Vivado 2020.1 |
| General Features |
|
Notes:#Optional
*PL GTH Transceivers are not supported in ZU3 & ZU2 MPSoC
*Under Progress
iWave offers rugged, aesthetically designed aluminum and metal sheet enclosures for the SBC, serving a dual purpose as both a heatsink and protective casing, while ensuring full access to all major ports.
FAQs
An MPSoC SoM provides a proven and reliable design with optimized signal integrity, DDR tuning, and power sequencing. It reduces development cost and risk while helping accelerate time to market.
Yes. MPSoC SOMs are designed to scale across different performance levels, allowing developers to choose devices within the Zynq UltraScale+ MPSoC family (from ZU1 to ZU19) based on their application needs. This makes it easier to upgrade or adapt designs without major hardware changes.
For long-term use, SoMs from iWave are supported throughout their lifecycle, ensuring availability, reliability, and ongoing support. This helps avoid supply chain issues and keeps production stable.
- Heterogeneous Compute in One Chip
- Real-Time High Performance on the Same Platform
- High-Speed Connectivity & Deterministic I/O
- Lower System Cost & Power Consumption
- Flexibility & Future-Proofing Through Programmable Logic
- Scalable for Multiple Use Cases
Yes. With scalable MIPI CSI-2 support, MPSoC SOMs can handle multiple cameras, making them suitable for vision and imaging systems.
MPSoC SOMs support a wide range of high-speed interfaces, including:
- PCIe, USB, and Ethernet
- QSPI, eMMC, SRAM, and EEPROM
- LVDS for high-speed data transfer
- MIPI CSI-2 for camera and vision applications
