PCIe SDR Framework on RFSoC

  • Direct RF Sampling Architecture: Eliminates the need for external RF front-end components, supporting DC to 2.3 GHz tuning for simplified design and improved signal performance.
  • Massive MIMO Support (Up to 16×16): Enables advanced applications such as 5G, beamforming, and phased array systems.
  • Ultra-Wideband Performance: Delivers up to 2 GHz bandwidth with high-speed ADC (up to 5.9 GSPS) and DAC (up to 10 GSPS).
  • High-Throughput Data Pipeline: PCIe Gen4 x8 delivers up to 128 Gbps throughput for real-time, low-latency data processing.
  • Deterministic Multi-Channel Synchronization: Multi-Tile Synchronization (MTS) with SYSREF ensures precise phase alignment across channels.
  • Flexible & Scalable SDR Platform: Supports dynamic reconfiguration, GNU Radio, Linux and Windows OS, GPU acceleration, and open SDR ecosystems.
CONTACT SALES

Documents

Documents

FeaturesDetails

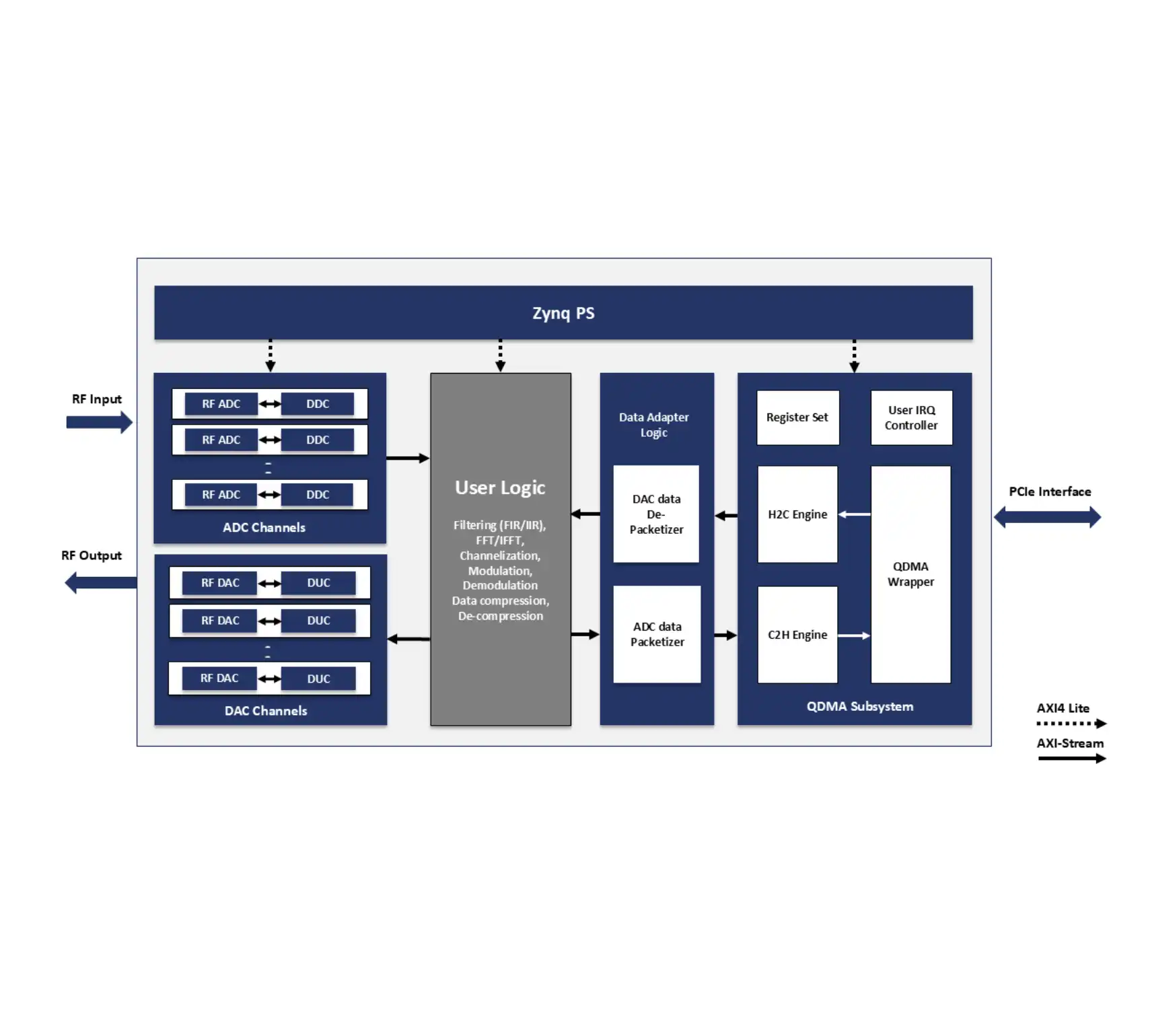

SDR Based on RFSoC
  • FPGA Chipset: AMD RFSOC
  • Channels: Up to 16 × 16 MIMO
  • Tuning Range: DC – up to 2.3 GHz Direct sampling
  • Instantaneous Bandwidth: Up to 2 GHz
  • ADC sampling rate: Up to 5.9 GSPS, 14 bits
  • DAC sampling rate: Up to 10 GSPS, 14 bits
  • PCIe Bandwidth: Up to 128Gbps with Gen 4, x8 lane
  • Form Factor: Full-Height Half-Length PCIe
  • Multi-tile synchronization (MTS) with SYSREF inputs
  • Configurable number of channels
  • Dynamic tuning of the decimation and interpolation
  • Burst mode or continuous modes data streaming
  • Frequencies, channels, and signal chains configuration through host drivers

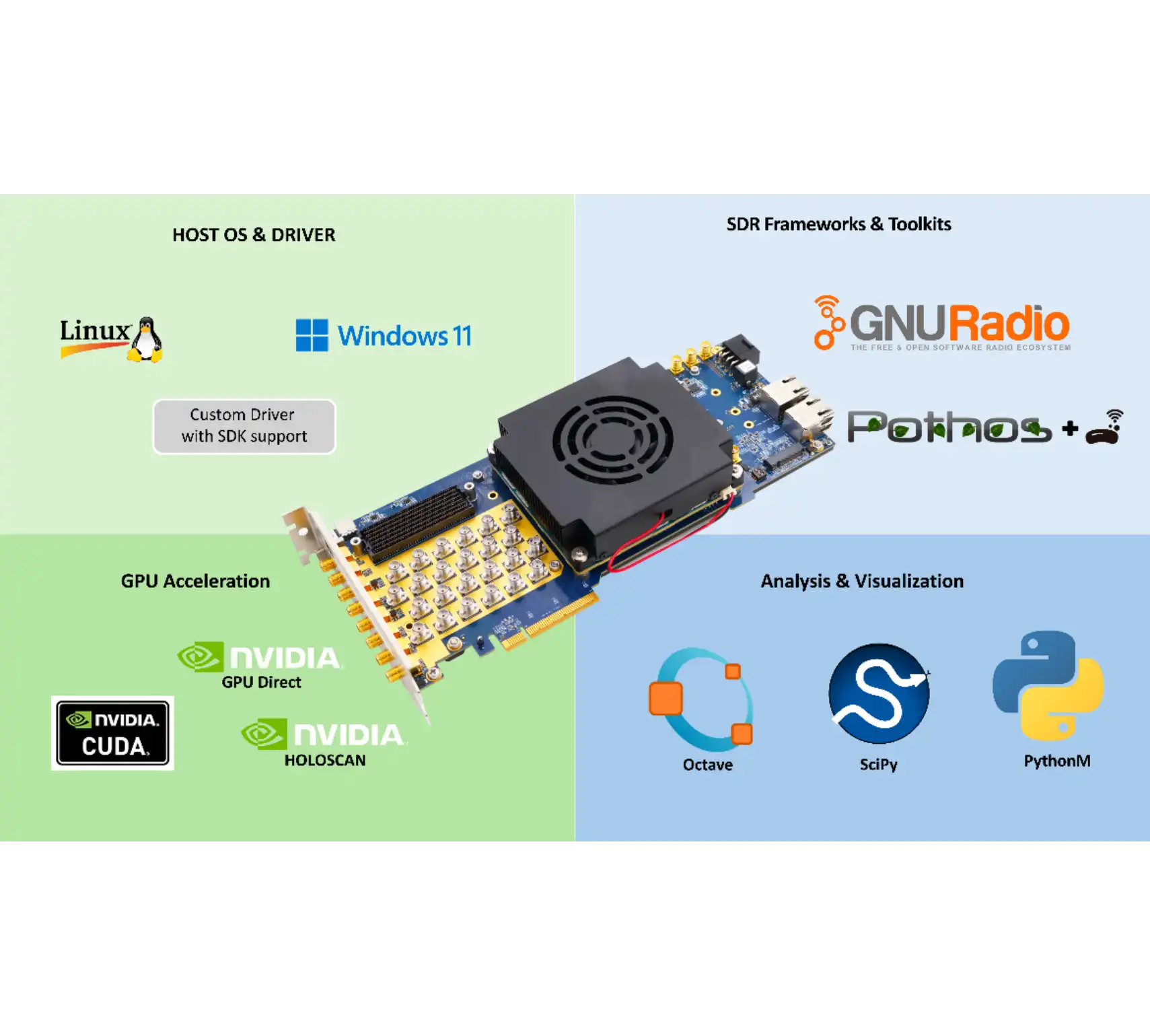

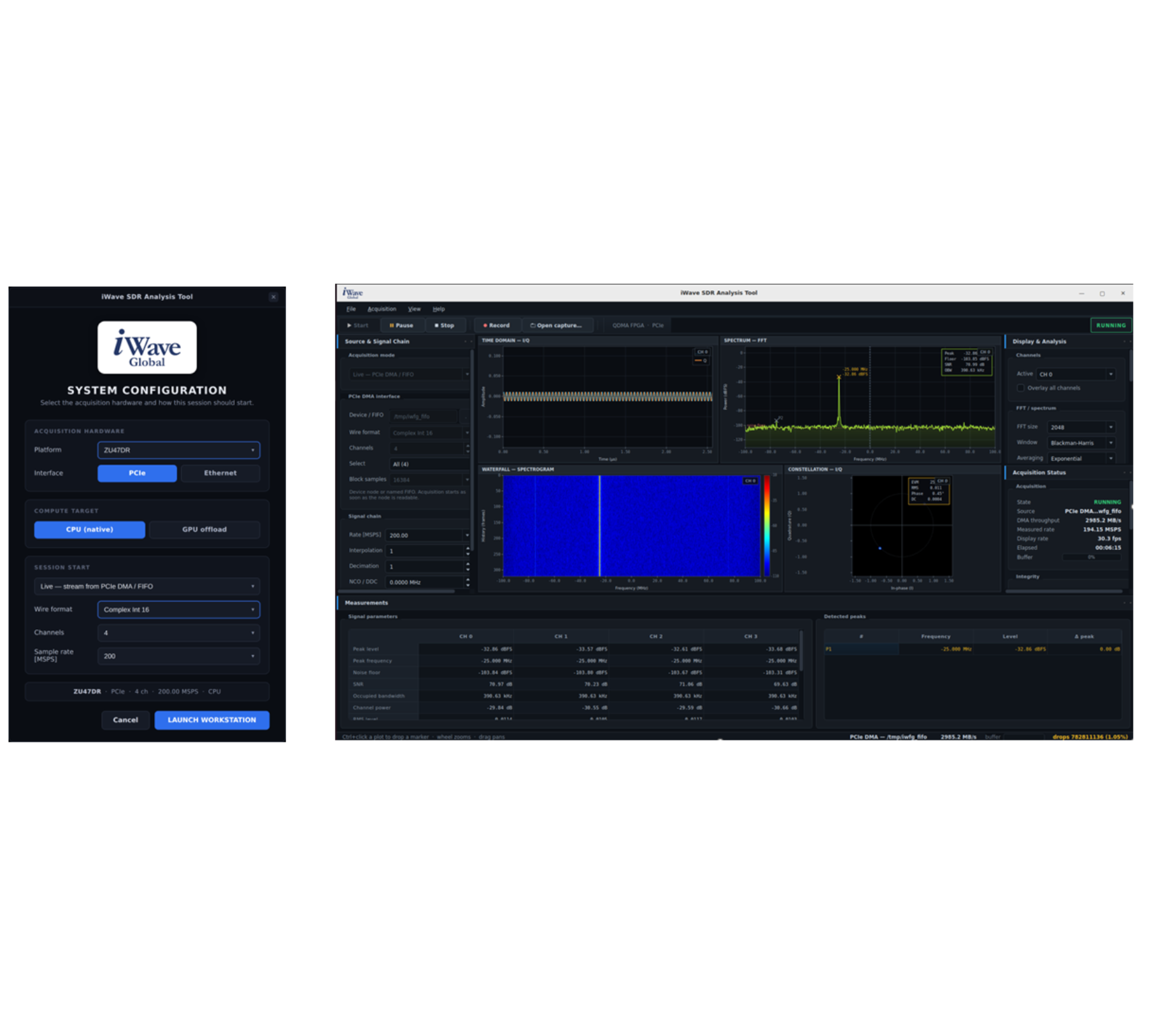

Software Stack
  • Robust Linux and Windows*** host OS support
  • SDR Frameworks and Toolkits like GNU Radio and Pothos
  • GPU Acceleration for Real-Time Processing
  • Analysis and Visualization using GNU radio, Octave, SciPY, Python etc.

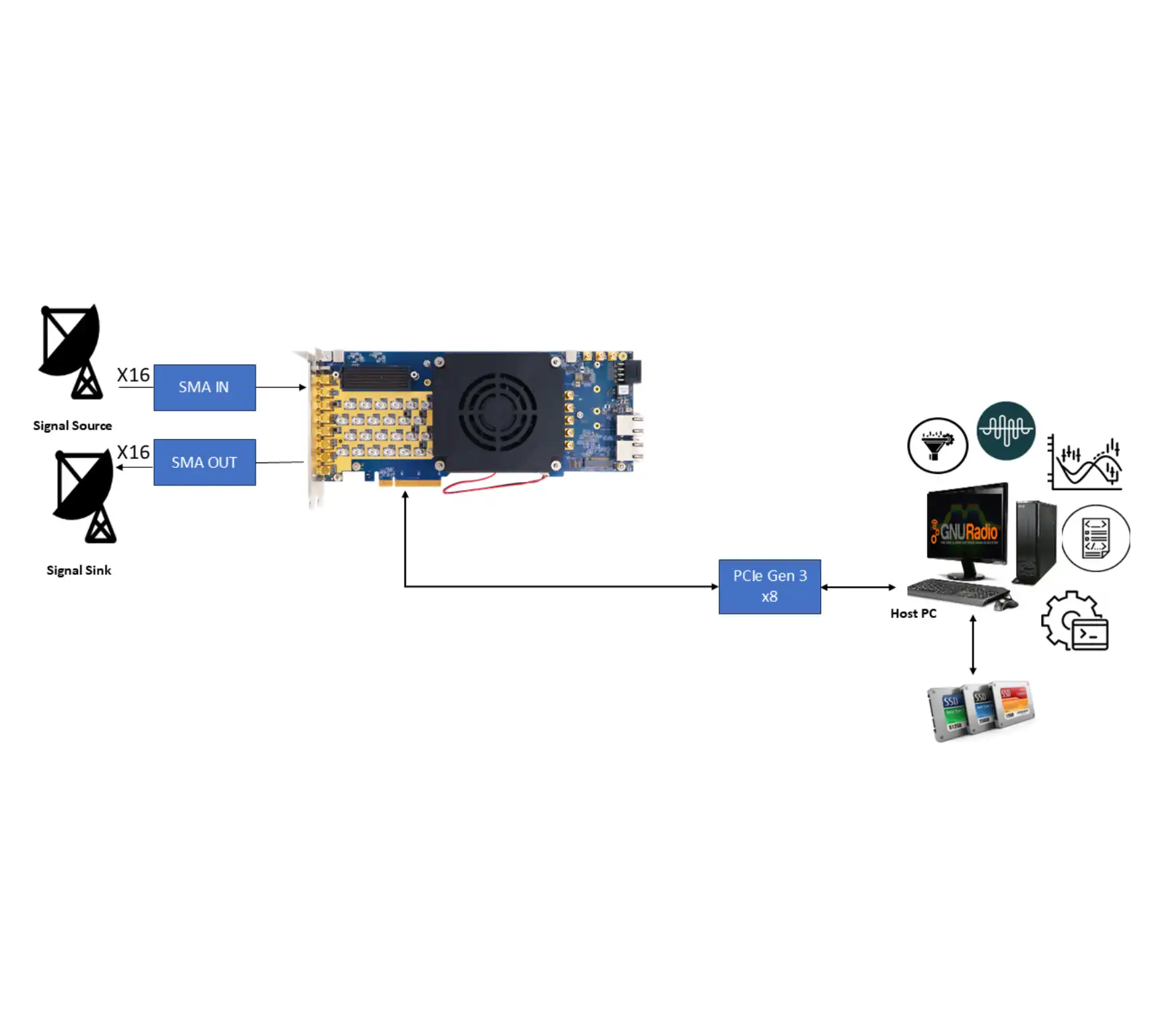

Host Interface
  • Full-Height Half-Length PCIe form factor, suitable for integration into Host PC systems.
  • Linux OS (above 20.04), 16GB RAM minimum
  • CPU 8 Core Minimum.
