The electric vehicle (EV) revolution is reshaping the automotive landscape. As software becomes deeply embedded in vehicle architecture, it is increasingly critical to maintain and update these systems throughout the vehicle’s lifecycle. Over-the-air (OTA) update mechanisms and robust telematics gateways are key enablers of this shift, allowing automakers and fleet operators to seamlessly deliver updates and monitor vehicle health without physical recall.
The Role of OTA in EVs
Modern EVs are driven by complex software stacks—ranging from battery management and powertrain control to infotainment and user interface systems. OTA updates allow automakers to deploy both Software Over-The-Air (SOTA) and Firmware Over-The-Air (FOTA) updates wirelessly:
- SOTA typically involves updates to user-facing software like navigation, infotainment, or UI elements.
- FOTA is more involved—it updates firmware to improve vehicle behaviour, such as enhancing battery range, revising charging logic, or updating safety-critical systems.
This continuous update capability empowers EV makers to refine performance, apply security patches, and evolve features across the fleet without bringing vehicles back to service centres.
Smart Battery Management via OTA Telemetry
Battery range and health are top concerns for EV owners. The telematics gateway enables remote collection of critical battery data—such as charge cycles, state-of-charge, and temperature—which is sent back to the cloud for analysis.
By applying AI and machine-learning models to this data, automakers can detect early signs of degradation, optimize charging behaviour, and even reconfigure vehicle parameters via OTA to maximize battery life and performance.
How OTA Updates Work in Practice
OTA updates are delivered securely over cellular or Wi-Fi networks through a cloud-based architecture. Content Delivery Networks (CDNs) host software repositories that communicate with vehicle telematics units.
iWave’s telematics gateway is built for redundancy and rollback protection: it partitions its flash memory into two kernel filesystem images (“A” and “B”), allowing safe updates. During an OTA process, the inactive partition is updated, verified, and then marked for the next reboot. If an update fails or the device reboots unexpectedly, the gateway can roll back to the previous stable partition.
Additionally, a dedicated data partition stores sensitive information such as security keys and credentials, isolating them from the update system to maintain data integrity.

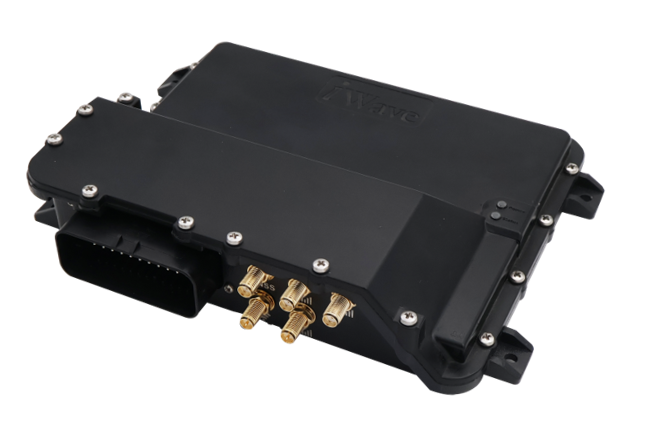

iWave’s Telematics Gateway: Hardware & Connectivity
The iWave telematics gateway is a modular, edge-computing device that acts as the secure bridge between vehicle ECUs and the cloud. Key features include:
- Processing: Powered by an i.MX 8 DXL CPU with a 64-bit ARMv8 architecture for efficient edge computing.
- Wireless Connectivity: Supports 4G/LTE (Cat 4 or Cat M1), Wi-Fi (802.11a/b/g/n/ac), and Bluetooth (BLE).
- Wired Interfaces: Includes CAN (FD/HS/LS), RS-232, RS-485, Automotive Ethernet, and analog inputs — enabling integration with various vehicle subsystems.
- Motion & Navigation Sensors: Equipped with a 3-axis gyroscope, accelerometer, magnetometer, and a high-precision GNSS module (GPS/GLONASS/Beidou/Galileo).
- Secure Execution Environment: The gateway enforces robust security mechanisms to safeguard data during OTA and runtime.
Why iWave’s Telematics Solution Matters for EVs
- Continuous Improvement – Automakers can deploy new features, enhance performance, and patch security issues throughout the lifecycle of EVs.
- Fleet Intelligence – Operators receive actionable insights on battery health, driving behavior, and energy efficiency through real-time telemetry.
- Remote Risk Mitigation – Faults and bugs can be addressed remotely, minimizing downtime and maintenance costs.
- Scalable & Modular – The gateway’s flexible architecture supports different communication and vehicle protocols, making it adaptable to a wide variety of EVs.
- Secure by Design – With redundant firmware partitions, secure storage, and rollback mechanisms, iWave’s OTA system ensures reliable and safe updates.
To deliver a robust OTA infrastructure, iWave has partnered with leading software delivery platform. This collaboration integrates OTA engine into iWave’s hardware, enabling secure and compliant updates across software-defined vehicles.
As EV adoption accelerates, the role of telematics gateways and OTA platforms will become even more critical. iWave is committed to evolving its hardware and software ecosystem to meet these demands—helping automakers build connected, innovative, and future-ready EV fleets.
Contact mktg@iwave-global.com to learn more about how iWave’s telematics and OTA solutions can power your next generation of electric vehicles.
