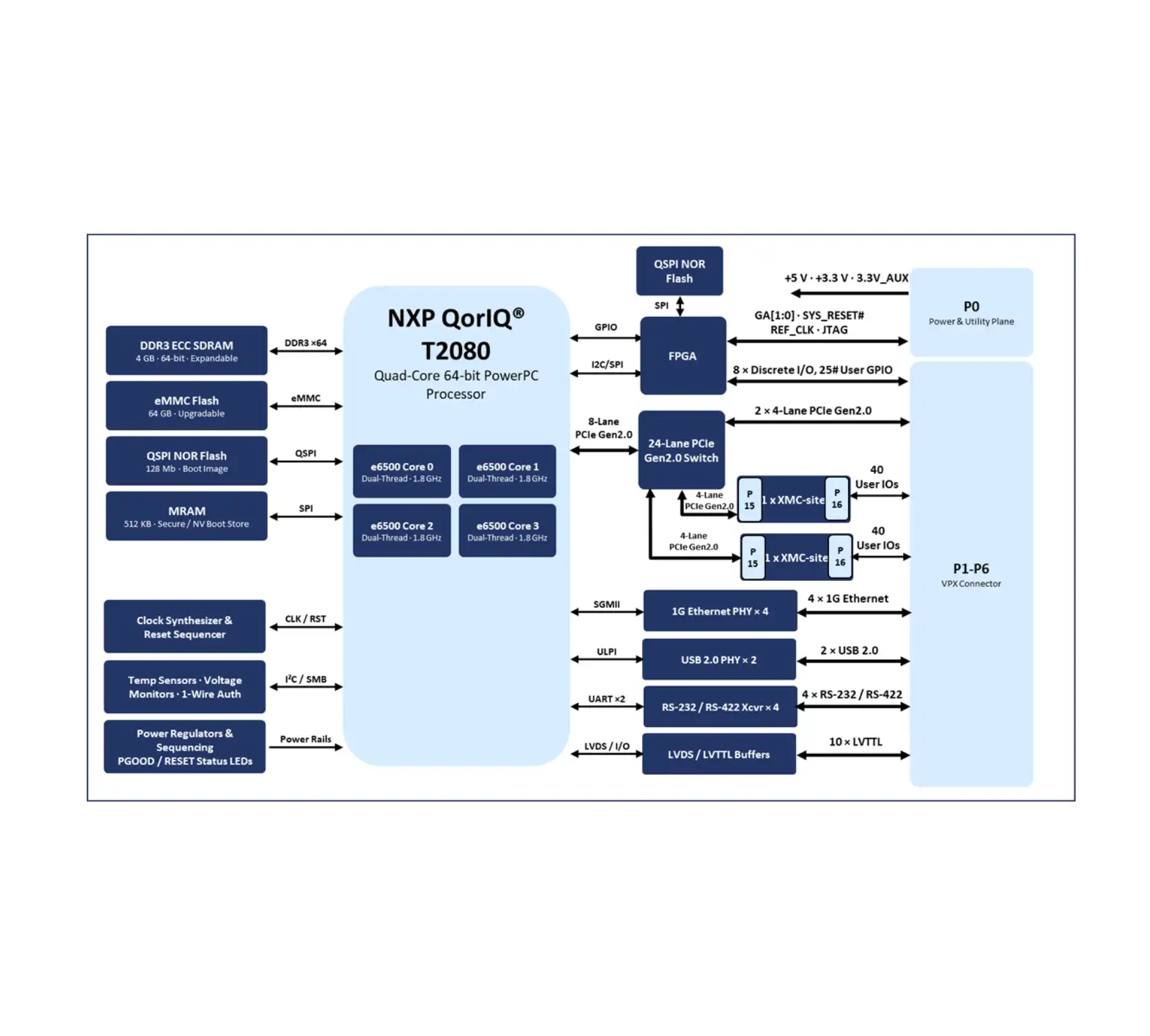

| NXP QorIQ® T-series PowerPC Processor |
- Four dual-threaded e6500 cores built on Power Architecture technology
- Up to 1.8 GHz each, 6.0 DMIPS/MHz per core
Shares a 2 MB L2 cache
- Three levels of instructions: User, supervisor, hypervisor
- Hybrid 32-bit mode to support legacy software and transition to a 64-bit architecture
- Advanced power management saving modes include state retention during power gating
|
| Memory |
RAM
- 8 GB DDR3 ECC SDRAM (Expandable)
ROM
- 64GB eMMC Flash (Upgradable)
- 128Mb QSPI flash memory (Optional)
- 512KB MRAM for secure/reliable boot and non-volatile storage.
|
| XMC (42.3) site |
Two XMC Connector: (As per Vita 42.3)
- One 4-lane PCIe Gen2.0 Interface from Processor
- Module Power support of 15W each site
- 20# LVDS/40 SE IOs from backplane on each site
|
| 6U VPX Back Panel |
- OpenVPX compliant P0–P6 backplane architecture
- 2 × PCIe Gen2 x4 switched fabric interfaces
- 4 × Gigabit Ethernet interfaces
- 4 × configurable RS-232 / RS-422 serial interfaces
- 2 × USB 2.0 ports
- 8 × Digital Discrete I/O
- 10 × LVTTL I/O and 25 × FPGA GPIO
- Utility signals including reset, reference clock, JTAG and geographic addressing
- VPX utility power (+5 V, +3.3 V and +3.3 V AUX)
|
| On Board Feature |
- System Management FPGA for board monitoring, reset sequencing, and health management
- 24-lane PCIe Gen2.0 Switch
- Reset and clock synthesizer, Temperature sensors and voltage monitoring ICs
- One-wire Authenticator and Power Good, Reset LEDs on board to monitor board health
|
| General Feature |
- Slot Pitch: 1 Inch Conduction Cooled
- Power Supply: +5VDC +/- 5% input from VPX Connector
- Operating Temperature: -40°C to +85°C
- Form Factor: 6U VPX (233.35mm X 160mm)
- Environment Specification: RoHS and REACH
- Compliant & CE*
|
| Operating System |
|
| Target Application |
- Mission Computers
- Radar Signal Processing Systems
- Electronic Warfare (EW) Systems
- Sensor Interface & Data Acquisition
- Rugged Embedded Computing
|
