Rugged Compact Mission Computer

• 4 DAC channels supporting 30 MHz to 6 GHz with sampling rates up to 9.85 GSPS (Configurable)
• 4 ADC channels supporting 30 MHz to 6 GHz with sampling rates up to 5 GSPS (Configurable)

Programming Logic (PL)

• Programming Logic (PL) with up to 930K Logic cells
• PL GTY High Speed Transceivers x 16 @ upto 28.21 Gbps

• Quad/Dual Arm Cortex-A53 @1.5GHz, Dual Cortex-R5 @600MHz
• Arm Mali-400MP2 GPU @677MHz

Programming Logic (PL)

• Up to 1143K Logic cells & 522K LUTs

• 128 GB 256-bit LPDDR5X on SOM
• 1GB LPDDR4 on FPGA
• 256GB NVMe Memory connected to SOM
• 128MB NOR flash for FPGA
• RFSoC Module
• 64bit, 8GB DDR4 RAM for PS with ECC
• 64bit, 8GB DDR4 RAM for PL
• 256MB QSPI Flash for Booting
• 32GB eMMC Flash for Storage

MPSoC Module

• PS: 64bit, 4GB DDR4 RAM with ECC (Expandable)
• PL: 64bit, 8GB DDR4 RAM (Expandable)
• 32GB eMMC (Expandable)
• 128MB QSPI (Expandable)

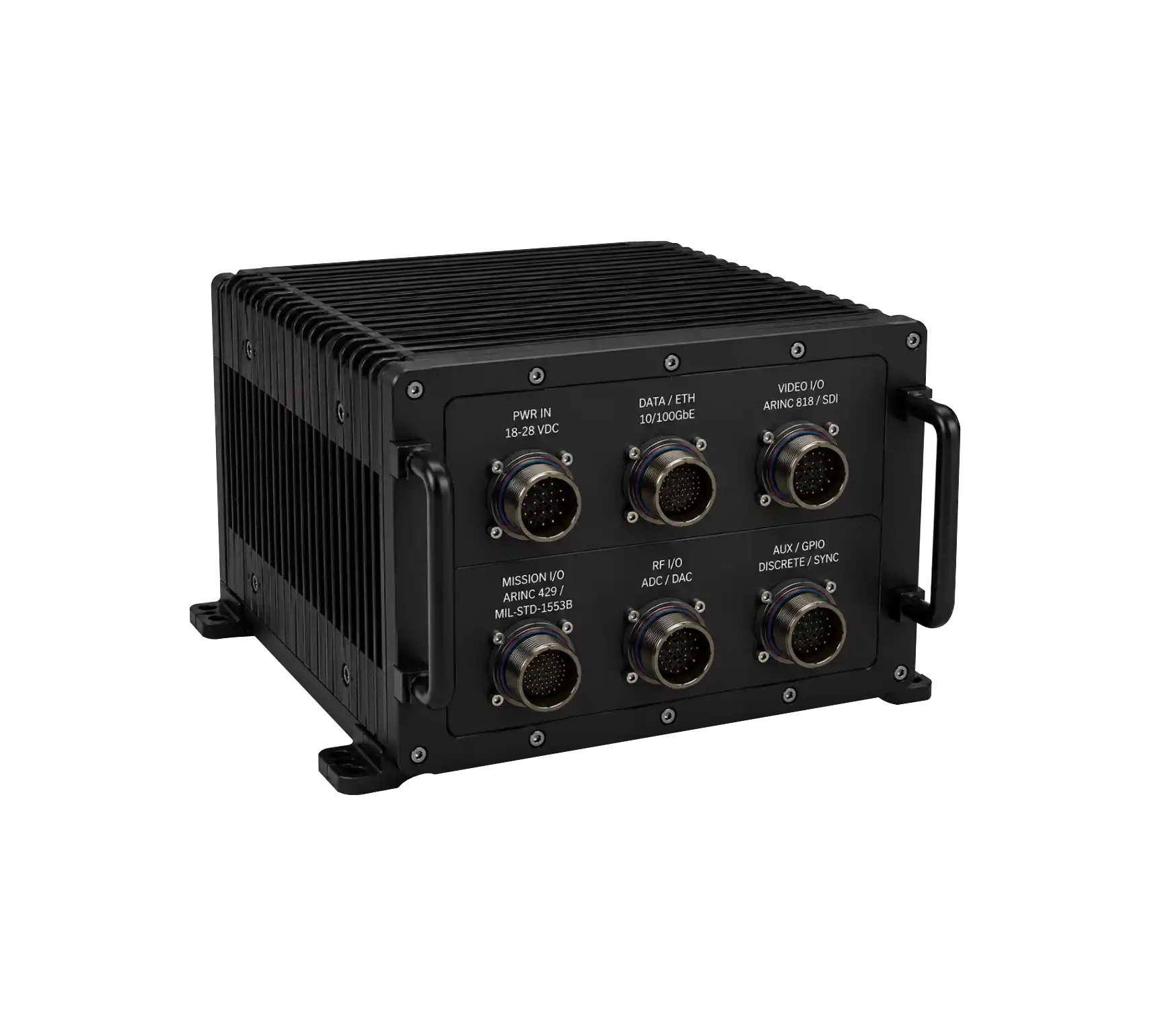

• High-Speed Ethernet: Up to 100GbE interfaces
• Gigabit Ethernet: 1GbE interfaces for control and management
• Video I/O: ARINC 818, SDI and DisplayPort
• Mission I/O: ARINC 429 and MIL-STD-1553B
• RF I/O: Multi-channel RF ADC/DAC interfaces
• PCIe: PCIe Gen4 expansion interface
• Discrete I/O: Configurable GPIO / discrete signals
• Timing & Synchronization: 10 MHz, 1PPS and trigger interfaces

• System Management FPGA for board monitoring, reset sequencing, and health management
• 24-lane PCIe Gen2.0 Switch
• Reset and clock synthesizer, Temperature sensors and voltage monitoring ICs
• One-wire Authenticator and Power Good, Reset LEDs on board to monitor board health

• Radar Signal Processing
• Electronic Warfare (EW)
• SIGINT / ELINT / COMINT
• Software Defined Radio (SDR)
• EO/IR & AI Vision
• Multi-Sensor Fusion
• C5ISR
