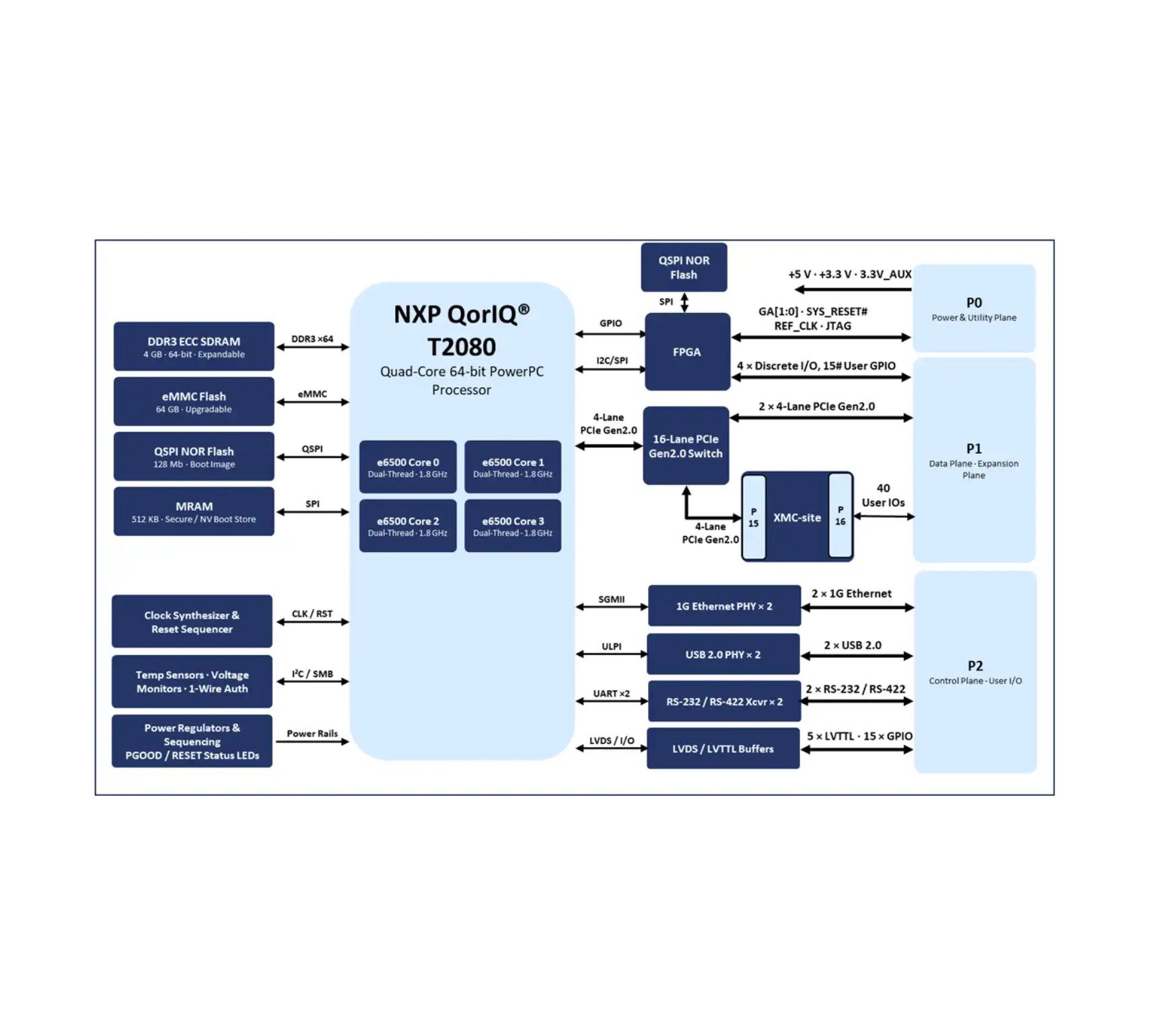

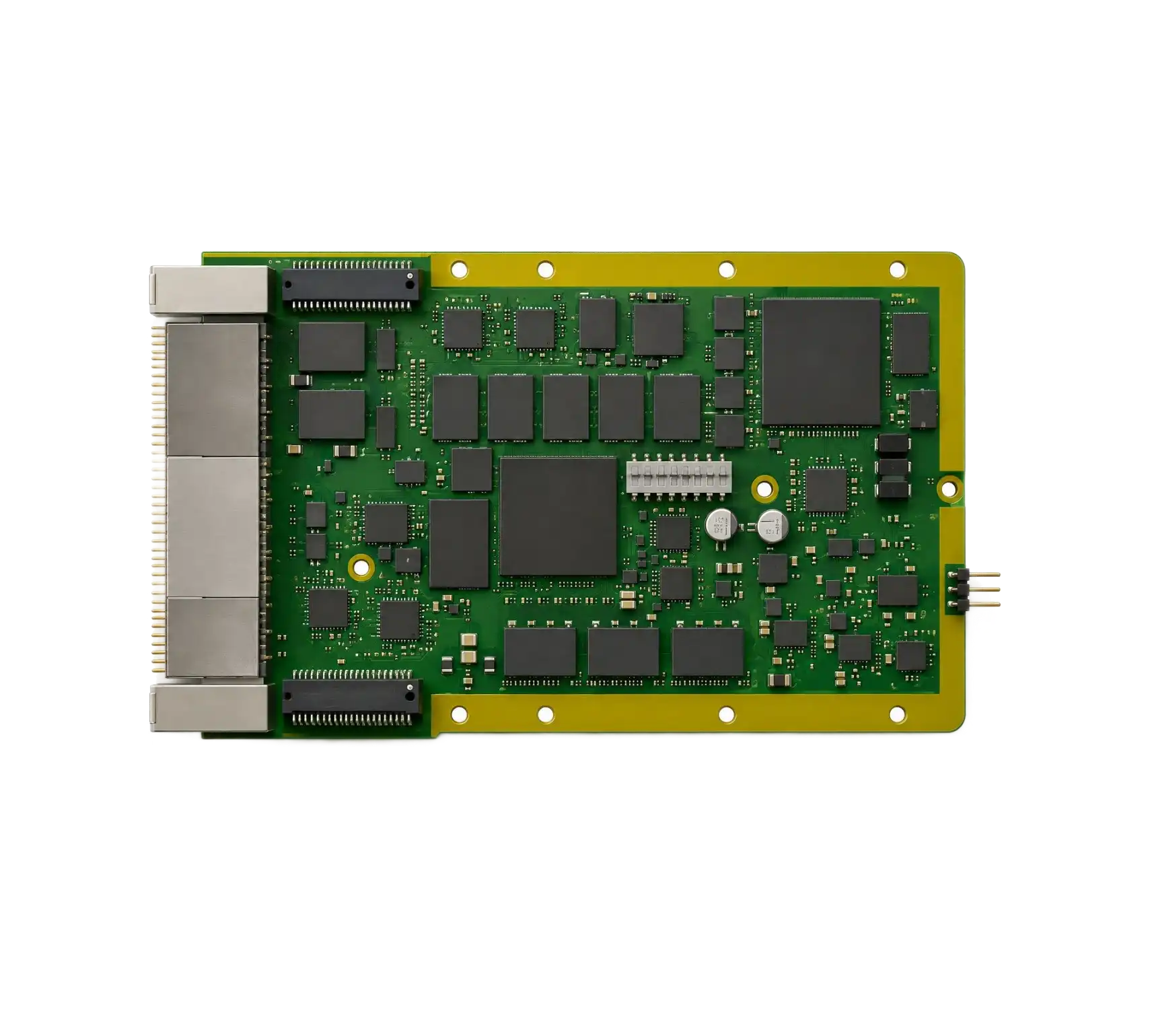

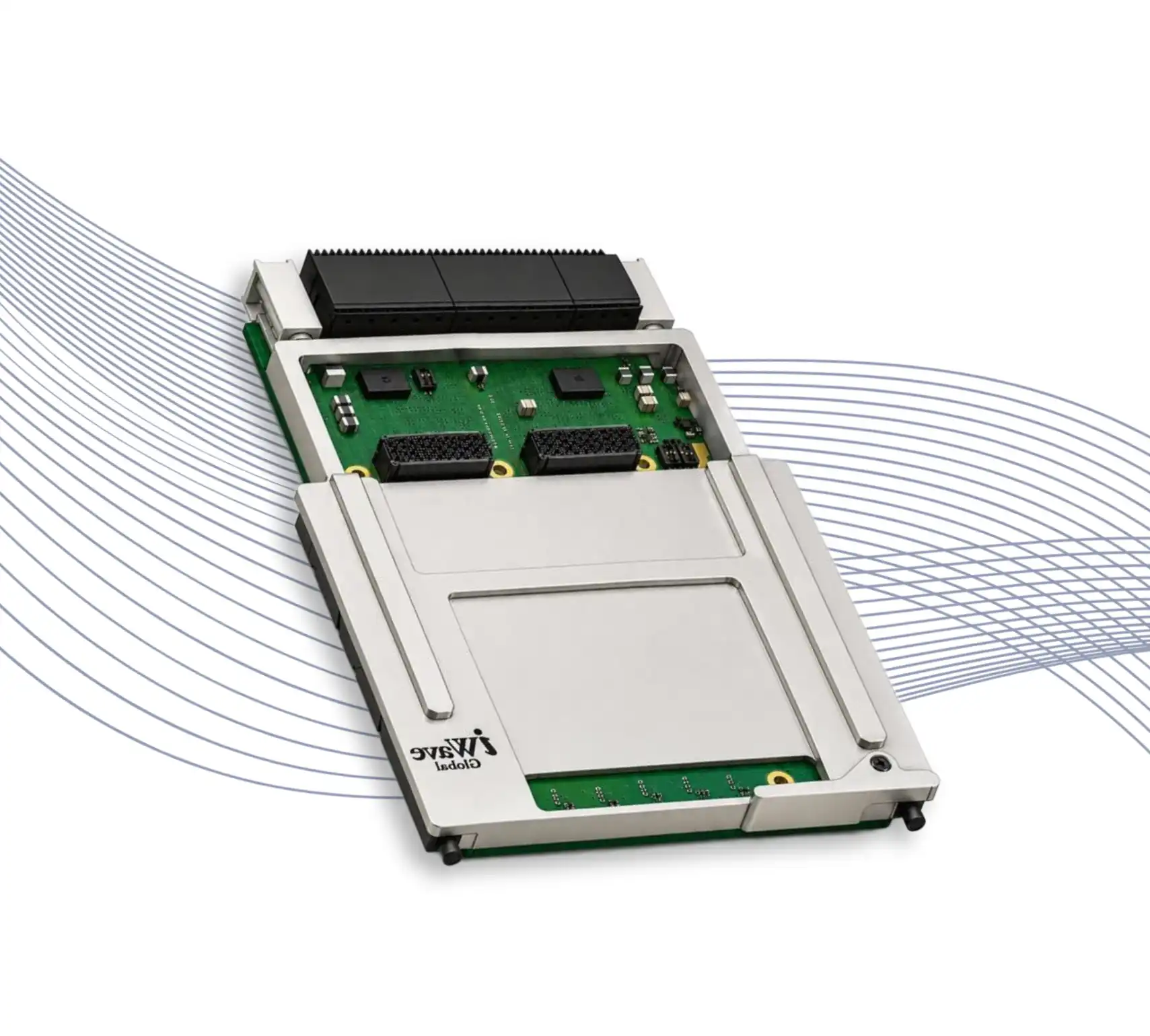

QorIQ T2080 3U VPX SBC

• Four dual-threaded e6500 cores built on Power Architecture technology
• Up to 1.8 GHz each, 6.0 DMIPS/MHz per core
• Shares a 2 MB L2 cache
• Three levels of instructions: User, supervisor, hypervisor
• Hybrid 32-bit mode to support legacy software and transition to a 64-bit architecture
• Advanced power management saving modes include state retention during power gating

• 4 GB DDR3 ECC SDRAM (Expandable)

ROM

• 64GB eMMC Flash (Upgradable)
• 128Mb QSPI flash memory (Optional)
• 512KB MRAM for secure/reliable boot and non-volatile storage.

• One 4-lane PCIe Gen2.0 Interface from Processor
• Module Power support of 15W
• 20# LVDS/40 SE IOs from backplane

• 5V, 3.3V, 3.3V_AUX DC power input
• MISC signal such as GA[1:0], SYS_RESET#, REF_CLK, JTAG Signals

P1 & P2:

• Two 4# Lane PCIe Gen2.0 Interface
• Two EIA/RS232 & EIA/RS422
• Two 1G Ethernet
• Four Digital Discrete I/Os to FPGA
• Two USB2.0
• Five LVTTL IOs and 15# GPIOs to FPGA

• System Management FPGA for board monitoring, reset sequencing, and health management
• 16-lane PCIe Gen2.0 Switch
• Reset and clock synthesizer, Temperature sensors and voltage monitoring ICs
• One-wire Authenticator and Power Good, Reset LEDs on board to monitor board health

• Slot Pitch: 1 Inch Conduction Cooled
• Power Supply: +5VDC +/- 5% input from VPX Connector
• Operating Temperature: -40°C to +85°C
• Form Factor: 3U VPX (160mm X 100mm)
• Environment Specification: RoHS and REACH
• Compliant & CE*

• Linux
• VxWorks-7

• Mission Computers
• Radar Signal Processing Systems
• Electronic Warfare (EW) Systems
• Sensor Interface & Data Acquisition
  • Rugged Embedded Computing
