Solution Highlights

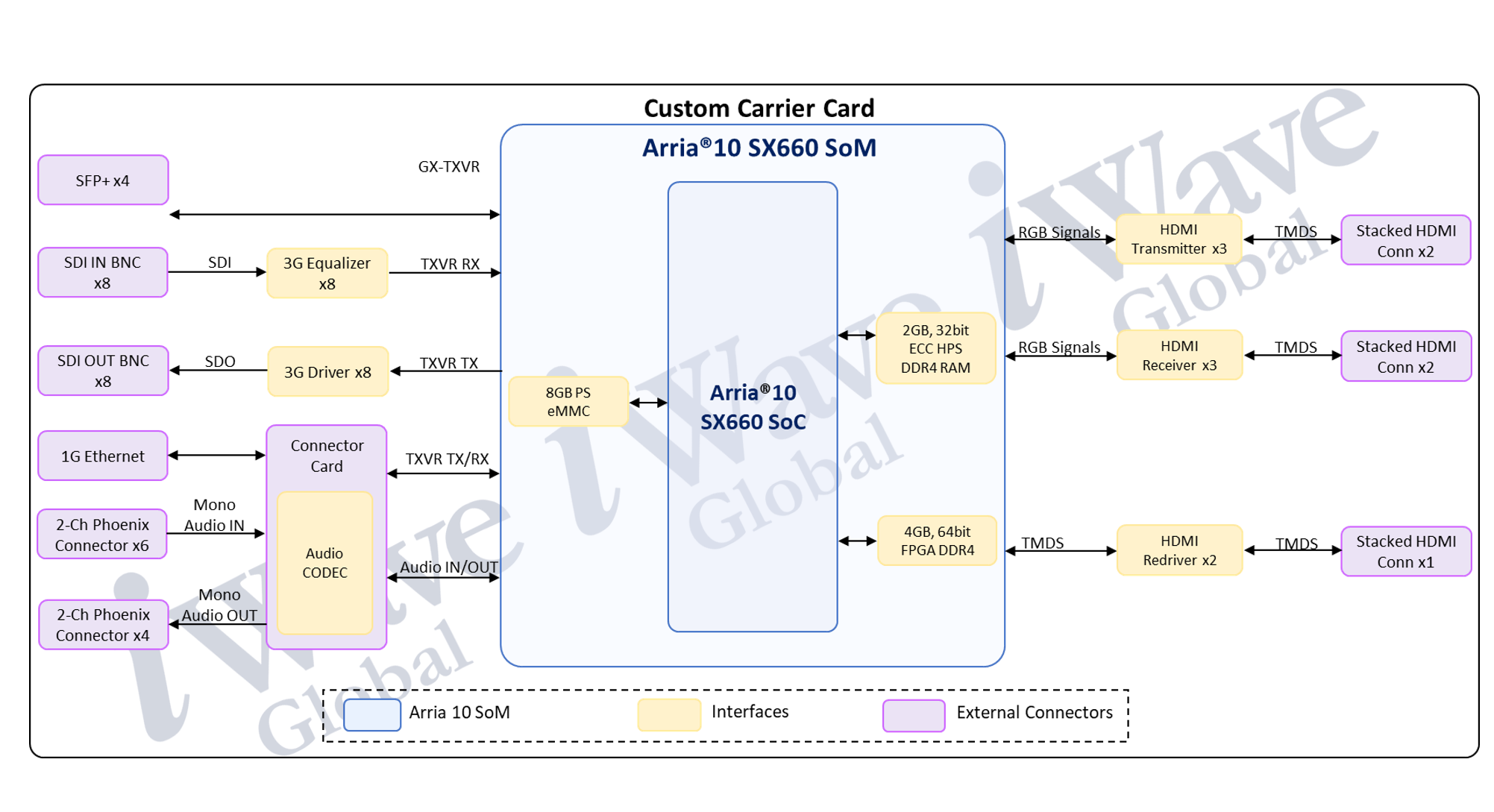

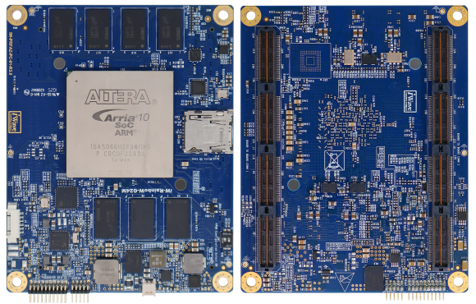

- Production Grade Arria 10 SoM (iG-G24M) and Custom Carrier Card
- SoM Features
- Compatible with SX270, SX320, SX480, SX570, SX660
- 32bit, 2GB DDR4 RAM with ECC for HPS (Upgradable up to 4GB)
- 64bit,4GB DDR4 RAM for FPGA(Upgradable up to 8GB)
- 8GB eMMC Flash(Upgradable)
- Audio integration support for SDI, HDMI and Phoenix sources.
iWave Scope of Work
Hardware Design:
Design and validation of custom carrier boards, signal integrity analysis, and production of Arria 10 SoM and custom carrier cards
Mechanical Shielding Support for radiation mitigation:
Designed and integrated mechanical shielding to reduce radiation exposure and improve system reliability in space environments
FPGA Development:
Create RTL logic for video/audio switching, routing, chroma keying, and controls, and integrate Intel IP cores
Software Implementation:
Develop software for video/audio mixing and switching, leaving background and graphic attribute handling
