4K Video Encode Decode is becoming increasingly important for surveillance, embedded vision, video conferencing, medical imaging, and other mission-critical applications that demand high-resolution video processing. Handling 4K video streams in real time requires high computational performance, memory bandwidth, and dedicated hardware acceleration to achieve low latency while maintaining power efficiency.
4K Video Encode Decode using Zynq MPSoC offers an effective platform for developing high-performance embedded video systems. The Zynq UltraScale+ MPSoC combines a multi-core processing system, programmable logic, and dedicated video processing capabilities, enabling hardware-accelerated video encoding and decoding for efficient, low-latency video applications.
4K Video Encode Decode Using Zynq MPSoC
The Zynq UltraScale+ MPSoC family combines Arm-based processing capabilities with programmable logic, allowing developers to implement flexible and application-specific video processing architectures.
Selected Zynq UltraScale+ MPSoC devices integrate the H.264/H.265 Video Codec Unit (VCU), which provides dedicated hardware acceleration for video encoding and decoding. The VCU supports H.264/AVC and H.265/HEVC standards and can perform encoding and decoding simultaneously, with supported configurations reaching up to 4K UHD at 60 fps.
This hardware acceleration reduces the processing load on the Arm processor and enables efficient handling of demanding video workloads.
How 4K Video Encode Decode Using Zynq MPSoC Works

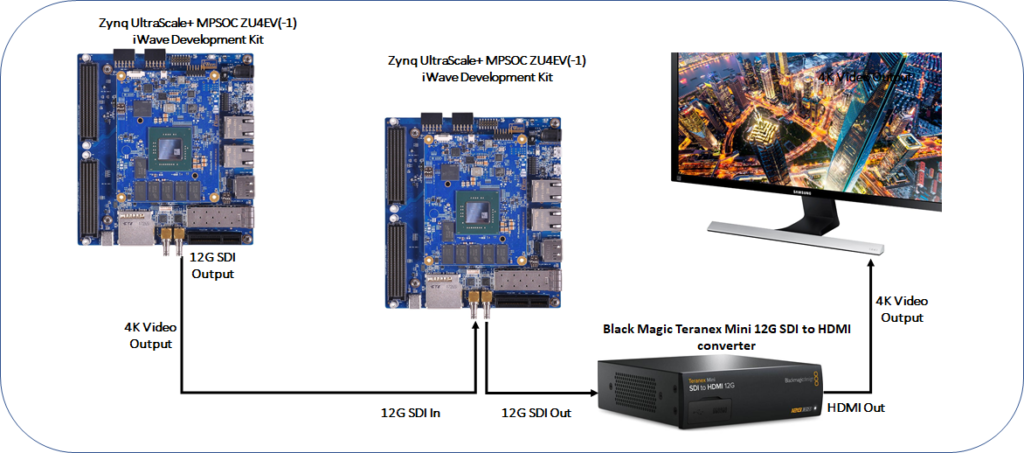

A typical video processing system consists of a video source, processing platform, encoder/decoder, memory, and display or network interface.
The Zynq UltraScale+ MPSoC can receive video from sources such as cameras and process the stream through the programmable logic and VCU. Encoded video can then be stored, transmitted over a network, or displayed after decoding.
The platform can also support transcoding, where an incoming H.264 or H.265 stream is decoded and subsequently encoded into another format or configuration. AMD’s VCU examples include camera-to-encode/decode/display, video transcoding, video recording, and video streaming use cases.
Key Benefits of 4K Video Encode Decode Using Zynq MPSoC
Hardware-Accelerated Video Processing
Dedicated video processing hardware enables computationally intensive encoding and decoding operations to be performed efficiently without relying entirely on the Arm processing cores.
4K UHD Video Processing
The VCU supports video processing up to 4K UHD resolution at 60 Hz in supported configurations, making the platform suitable for high-resolution video applications.
Simultaneous Encoding and Decoding
The VCU architecture supports simultaneous encoding and decoding, making it suitable for applications requiring real-time video conversion, processing, and transmission.
Flexible Programmable Logic
The programmable logic of the Zynq UltraScale+ MPSoC enables developers to implement custom video processing pipelines, interfaces, preprocessing functions, and hardware accelerators.
High-Performance Memory Architecture
4K video processing involves substantial memory bandwidth. The Zynq UltraScale+ architecture provides high-performance interfaces between the processing system, programmable logic, and external memory to support demanding video workloads.
Applications of 4K Video Encode Decode Using Zynq MPSoC
The combination of processing, programmable logic, and hardware video acceleration makes Zynq UltraScale+ MPSoC suitable for a wide range of embedded video applications.
Video Surveillance
4K video encoding and decoding can enable high-resolution surveillance systems for security monitoring, transportation infrastructure, industrial facilities, and other environments requiring detailed visual information.
Embedded Vision
The platform can process camera data and integrate image-processing and vision algorithms with hardware acceleration, making it suitable for intelligent vision systems.
Video Conferencing
Real-time encoding and decoding can help support high-resolution video conferencing systems where low latency and efficient video processing are essential.
Video Over IP
Video streams can be encoded before transmission and decoded at the receiving end, helping reduce bandwidth requirements while maintaining high-quality video. The VCU supports video streaming and RTP/UDP-based examples.
Medical Imaging
High-resolution video processing can be applied to medical imaging and instrumentation systems where reliable and efficient processing of visual data is required.
iWave Expertise in Zynq UltraScale+ MPSoC Solutions
iWave Systems leverages its expertise in FPGA and embedded system design to develop solutions based on Zynq UltraScale+ MPSoC platforms. Its System on Module approach enables customers to integrate high-performance processing capabilities into their products while reducing hardware development complexity and time to market.
The Zynq UltraScale+ MPSoC-based platform can be customized for application-specific requirements, including video interfaces, memory configurations, operating systems, software stacks, and hardware acceleration.
iWave can support customers throughout the development cycle, from platform selection and carrier board design to BSP development, driver integration, FPGA development, and application software.
Why Choose Zynq MPSoC for 4K Video Processing?
Developing a high-performance 4K video system requires more than just a powerful processor. It requires efficient hardware acceleration, high memory bandwidth, flexible interfaces, and the ability to customize the processing pipeline.
4K Video Encode Decode using Zynq MPSoC combines these capabilities in a single adaptive platform. Its heterogeneous processing architecture enables developers to distribute workloads between the Arm processing system and programmable logic, while dedicated video acceleration helps handle demanding H.264/H.265 workloads.
This makes Zynq UltraScale+ MPSoC a suitable platform for developing scalable and application-specific 4K video processing solutions across surveillance, embedded vision, video streaming, conferencing, and other high-performance embedded applications.
The increasing adoption of 4K video is driving the need for efficient, scalable, and hardware-accelerated video processing platforms. 4K Video Encode Decode using Zynq MPSoC offers a powerful approach by combining Arm processing, programmable logic, high-performance memory interfaces, and dedicated H.264/H.265 video acceleration.
With its flexibility and processing capabilities, Zynq UltraScale+ MPSoC can serve as a strong foundation for next-generation embedded video systems requiring high resolution, real-time performance, and application-specific processing.
For more information about iWave’s Zynq UltraScale+ MPSoC solutions, visit www.iwave-global.com or contact mktg@iwave-global.com
