Reliable, Deterministic Data Exchange for Next Gen Aircraft Systems
Modern aircraft rely on continuous data exchange between multiple avionics systems, including flight computers, navigation systems, engine controllers, and cockpit electronics. The ARINC 429 IP Core provides a reliable interface for deterministic data communication between these critical systems. As avionics architectures become more advanced, designers require communication solutions that deliver deterministic performance, reduced processing overhead, and seamless integration.
ARINC 429 has become a trusted avionics data bus standard, based on the Mark 33 Digital Transfer System specification, providing reliable communication across commercial and military aircraft platforms.
When implemented as an FPGA based IP Core, ARINC 429 enables designers to simplify system integration, reduce CPU workload, and achieve high integrity communication for mission critical aerospace applications.
iWave ARINC 429 IP Core:
iWave ARINC 429 IP Core is a high-performance FPGA based solution designed to simplify the integration of ARINC 429 communication capabilities into modern avionics systems.
Whether deployed in flight data recorders, cockpit instrumentation, or hardware in the loop testing systems, a well designed ARINC 429 IP Core delivers the deterministic performance and fault tolerance required for modern flight operations.
Key Highlights:
- Compliance: ARINC 429 Specification with ARINC 429 standard 429.17 for data bus
- Configurable N number of TX and RX Lines.
- Data words of 32 bit with a word gap of 8 bits.
- Data Rate: 12.5 Kbps Low and 100 Kbps High
- Transmission Medium: 78x shielded twisted pair cable.
- External interface: D-Sub Connectors.
- 32-Bit ARINC 429 Word Support: Supports Label, Data, Status, and Parity fields
- Host Interface: AXI4 Lite Interface for control and status register access.
- Error Detection: Built in parity checking and error flagging mechanisms for high data integrity.
- Power Efficiency: Designed for low power consumption to meet avionics system power budget constraints.
- Software Support: Bare-metal application or Peta Linux OS with associated APIs
Why Choose an FPGA Based ARINC 429 IP Core?
Traditional software based implementations require significant processor resources for protocol handling and real time communication management. An FPGA based ARINC 429 IP Core transfers these functions into dedicated hardware, improving system efficiency and performance.
The IP Core manages essential communication tasks, including ARINC 429-word transmission and reception, protocol formatting, parity generation and checking, label filtering, and data rate management.
Key Benefits:
- Reduced CPU processing workload
- Improved deterministic performance
- Enhanced communication reliability
- Lower system complexity
- Optimized performance per watt for power-constrained avionics platforms

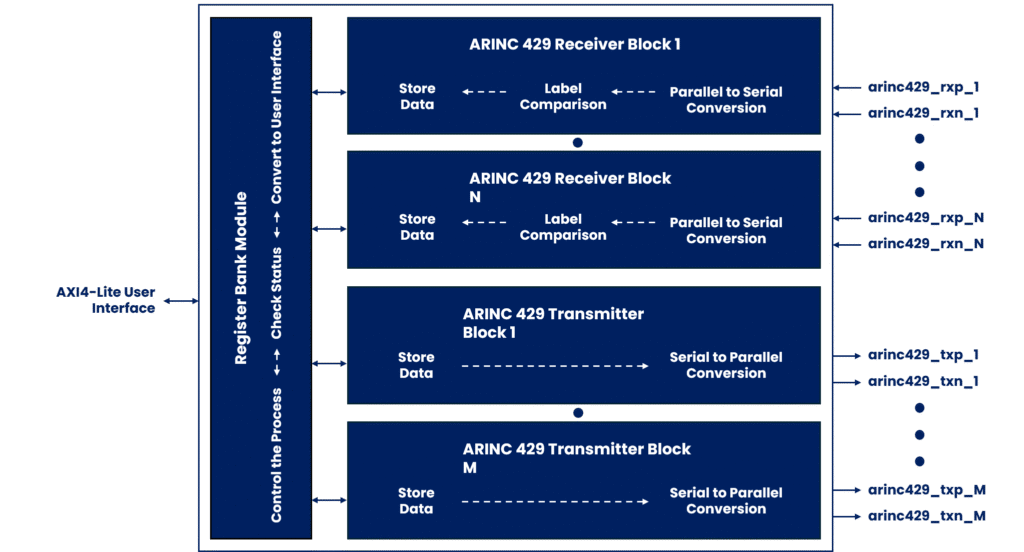

ARINC 429 IP Integration:
- The ARINC 429 IP Core can be seamlessly integrated into FPGA based avionics architectures, acting as a communication bridge between avionics subsystems and centralized processing units.
- By managing data transmission and reception directly in hardware, it ensures that flight critical information is exchanged with high integrity, low latency, and predictable timing.
- A single FPGA can support multiple ARINC 429 transmit and receive channels, helping reduce board complexity and simplify system design. The flexible FPGA architecture also allows customization of features such as label filtering, interrupt generation, and fault injection for system testing and validation.
- With support for standard interfaces such as AXI4 Lite and connectivity with PCIe, Ethernet, DDR memory, and high-speed serial interfaces, the ARINC 429 IP Core provides a scalable communication solution for modern commercial and military avionics platforms.
Target Applications:

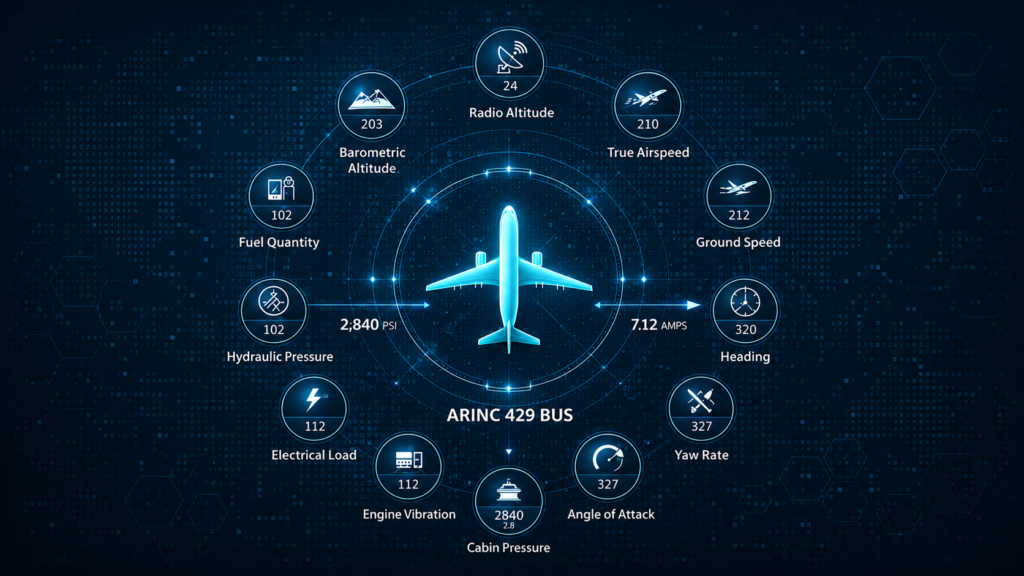

ARINC 429 enables reliable data communication across various aircraft systems, supporting mission-critical avionics applications such as:
- Flight Data Recording: Continuous collection of flight parameters for monitoring, analysis, and accident investigation.
- Real-Time Avionics Data Exchange: Reliable communication between flight management computers, navigation systems, air data computers, and engine controllers.
- Cockpit Instrumentation: Supports integration with cockpit displays, control panels, and warning systems for real-time flight information.
- Aircraft Maintenance and Health Monitoring: Enables system status monitoring and predictive maintenance through continuous data collection.
ARINC 429 IP Core Deliverables:
When licensing the ARINC 429 IP Core, iWave provides a complete set of deliverables to support seamless integration and faster system development. The deliverables include:
- ARINC 429 IP Core Netlist: Synthesized IP core files for FPGA integration into customer-specific designs.
- ARINC 429 IP Core Datasheet: Detailed technical documentation covering IP features, interfaces, configuration options, and integration guidelines.
- ARINC 429 IP Example Design: Reference design demonstrating the implementation and usage of the ARINC 429 IP Core for evaluation and system development.
With deep expertise in IP development and integration, our team supports customers with IP integration, performance tuning, resource optimization, and custom feature enhancements—ensuring successful deployment and faster time to market.
For more information, feel free to contact us at mktg@iwave-global.com.
