SLAD is a Modern commercial and military aircraft generate vast amounts of critical flight, navigation, and multi sensor video data across numerous interconnected avionics subsystems. From flight management computers and synthetic vision systems to sensor processing suites and tactical displays, reliable real-time visualization forms the backbone of safe and effective flight operations. As cockpit architectures continue to evolve toward consolidated glass cockpits and high definition video acquisition, efficient visual aggregation becomes a key enabler for pilot situational awareness, system integrity, and operational reliability. Smart Large Area Display (SLAD) solutions are widely adopted in advanced cockpits due to their ability to replace fragmented multi function display arrays with a seamless, high resolution visual interface.
What Role Does SLAD Play in Modern Avionics Systems?
- High-bandwidth digital video feeds from infrared, targeting, and optical sensor systems.
- Multi-channel flight-critical parameters from navigation units via ARINC 429 and ARINC 664 networks.
- Continuous mission data aggregation for moving maps, AESA radar, and tactical networks.
This results in substantial visual and telemetry data flows that must be processed and rendered in real time under strict safety, latency, and optical constraints. SLAD enables systems to manage diverse data streams generated by multi source avionics feeds. By providing dedicated hardware acceleration and dynamic windowing logic, it helps overcome integration challenges in high-density cockpit display units.
SLAD typically fits into the avionics visualization pipeline after sensor processing and mission compute stages, where video streams are uncompressed and telemetry integrity remains critical. It is inserted right before visual delivery to the pilot to execute layout tiling, protocol translation, backlighting control, and touch handling prior to screen rendering. This placement ensures that processing overhead and latency are minimized without impacting real-time flight controls. Overall, it acts as a bridge between multiple high speed avionics data sources and the cockpit display surface.
SLAD Applications in Avionics:
- Primary Flight Display (PFD) & Synthetic Vision: Consolidates attitude, airspeed, and altitude data alongside 3D synthetic vision terrain renderings, expanding pitch scales to prevent cross-scanning errors during low-visibility operations.
- Multi-Sensor Data Fusion & Tactical Maps: Acts as the primary surface for mission computers to fuse AESA radar, targeting pods, electronic warfare suites, and Link-16 network graphics onto a unified moving map.
- Multi-Window Layout Management: Aggregates and renders multiple independent video sources across a high-resolution canvas using tiled, split-screen, and Picture-in-Picture (PiP) configurations.
- Low-Latency Sensor Video Streaming: Ingests uncompressed HD targeting and infrared camera feeds directly through high speed fiber optic and serial interfaces with sub-frame video latency.
What Benefits Does SLAD Bring to Avionics Integration?
The Smart Large Area Display is essential in modern cockpits to simplify display integration by consolidating high-speed video connectivity, avionics data buses, standard video inputs, and software frameworks into a single platform. By performing window management, video scaling, and optical adjustments in hardware, it offloads rendering and interface tasks from central mission computers. Its hardware based video processing layer ensures ultra low latency, high contrast, and fault tolerant performance, making it ideal for aerospace applications. Additionally, seamless compliance with standards like MIL-STD-3009 ensures full Night Vision Goggle (NVG) compatibility and readable sunlight performance. Overall, it enables lower cockpit clutter, reduced single point failures, and scalable display integration in modern avionics cockpits.
Advantages of SLAD in Avionics:
- Standardized interface compliance (ARINC 818-2, ARINC 429, SMPTE) for aerospace applications.
- Reduced mission computer processing overhead through dedicated graphics and video pipelines.
- Improved cockpit situational awareness by eliminating bezel frame dividers.
- Low power consumption and optimized performance per watt within tight thermal budgets.
Why Choose SLAD for Modern Cockpit Display Systems?
- Unified cockpit visualization – combines multiple flight, sensor, and mission data sources.
- Low-latency video processing – supports real time visualization of critical sensor feeds.
- Flexible multi-window layouts – enables tiled, split screen, and PiP display configurations.
- Reduced cockpit complexity – replaces multiple smaller displays with a consolidated large area interface.
Where Does SLAD Fit in the Avionics Pipeline?
- SLAD is placed at the final stage of the avionics display pipeline, functioning as the central hub where independent video protocols, data buses, and power inputs converge into a single visual output.
- It supports multi protocol ingestion, including ARINC 818-2 over fiber/copper, SMPTE SDI, DisplayPort, HDMI/DVI, ARINC 429, and ARINC 664 Ethernet. It also manages frame synchronization, dynamic scaling, and resistive multi touch inputs.
- This hardware centric approach ensures that critical flight and sensor data are presented with high optical clarity and low latency.

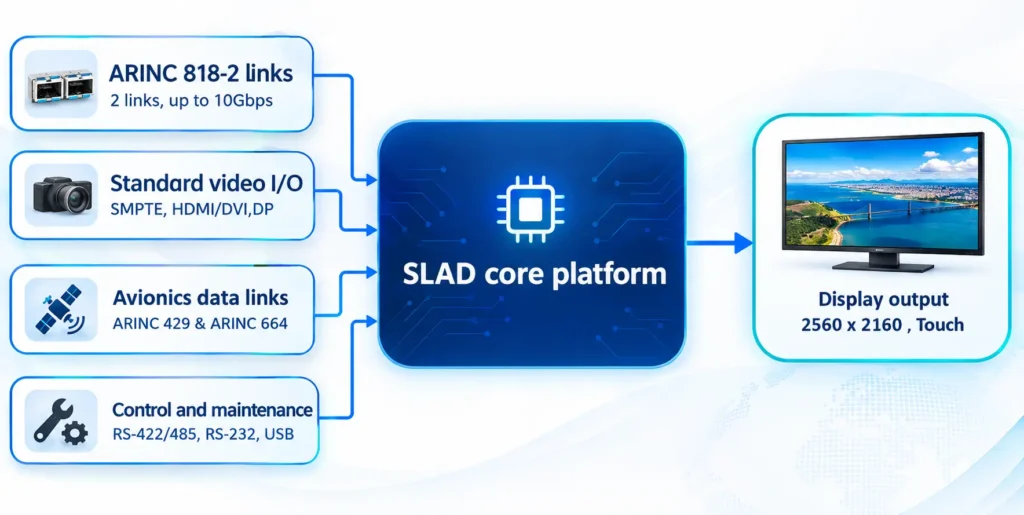

Figure: SLAD Core Platform Block Diagram

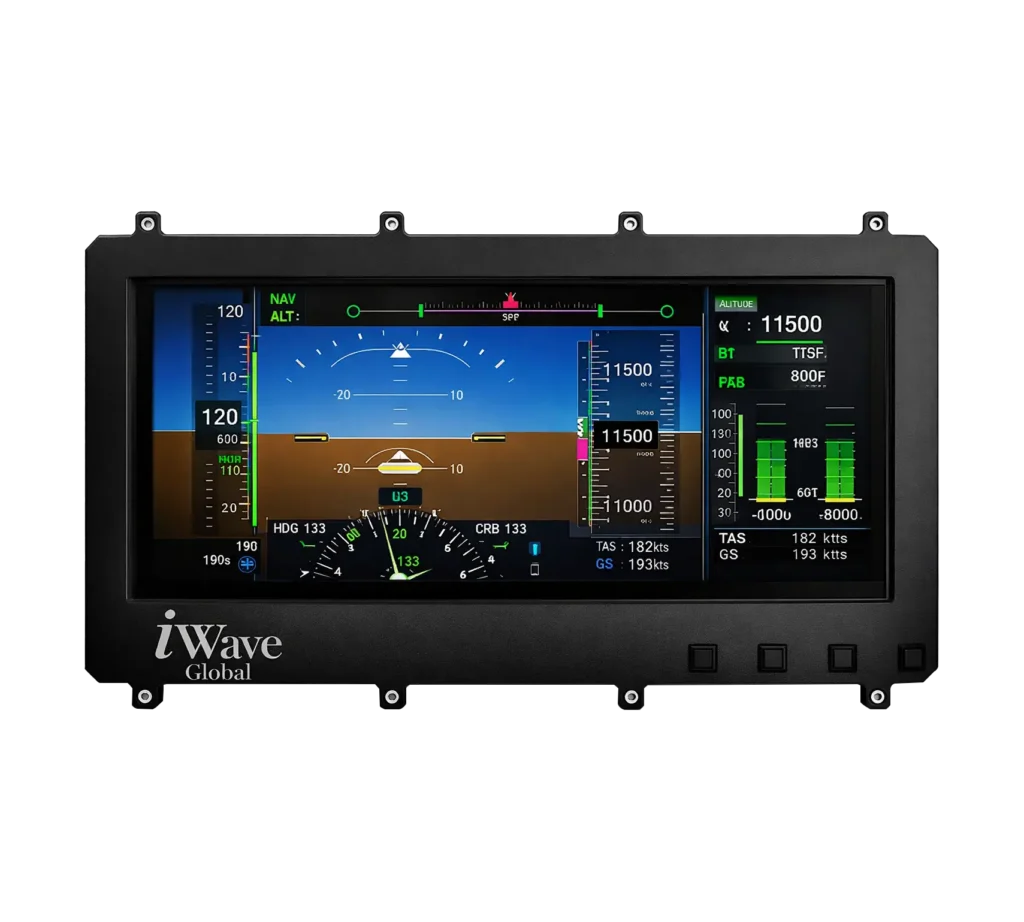

iWave Smart Large Area Display for Avionics
iWave’s Smart Large Area Display (SLAD) provides a high performance platform for consolidating avionics video, flight data, sensor feeds, and mission information into a single cockpit display. The solution supports high speed video interfaces, legacy avionics data buses, multi window visualization, and low latency processing for demanding aerospace applications.
| Category | Key specification and features |
|---|---|
| High-Speed Video | Dual ARINC 818-2 fiber-optic/copper interfaces supporting links up to 10 Gbps. |
| Auxiliary Inputs | Dual SMPTE 292/424 SDI inputs, dual HDMI/DVI inputs, and DisplayPort supporting up to 4K resolution |
| Avionics Data Buses | Integrated 8 Tx / 8 Rx ARINC 429 channels and ARINC 664 Ethernet connectivity. |
| Display Specifications | 21.5” diagonal (20” H × 8” V viewable area) color AMLCD panel, 2560 × 1024 resolution, 8-bit color depth. |
| Touch & Controls | Capacitive multi-touch matrix (glove-compatible), RS-422/485 for control, RS-232 for maintenance/debugging. |
| Optical & Compliance | MIL-STD-3009 Type II Class B/C compliant for NVG; Day, Night, NVIS, and Automatic Brightness Control. |
Large Area Displays are rapidly becoming the standard for next generation flight decks, providing the foundation for integrated cockpit displays in modern aviation. As one avionics integration principle highlights, consolidating multiple discrete indicators into a single smart display surface simplifies cockpit layouts while giving pilots immediate access to fused situational data. As avionics architectures demand higher video bandwidths and cleaner integration, dedicated SLAD platforms offer a compelling solution for aircraft manufacturers. By unifying ARINC 818-2 video channels, avionics data buses, and real time graphics rendering onto a single fault tolerant touch panel, these platforms enable higher operational reliability, simplified cockpit wiring, and optimized pilot performance all while maintaining strict adherence to optical and environmental standards. Whether deployed in fixed wing military jets, tactical helicopters, or modern flight simulators, a well-designed SLAD system delivers the visual clarity and deterministic performance essential for mission success.
To learn more about iWave embedded solutions and design services, visit www.iwave-global.com or contact us at mktg@iwave-global.com
