Capture Every Mission Critical Frame with PCIe-Based ARINC 818 Frame Grabber:
ARINC 818 Frame Grabber enables reliable, high-speed video capture for modern aerospace and defense systems. Every second, aircraft, defense platforms, and unmanned systems generate vast amounts of high-resolution video from cameras, radar, infrared sensors, and advanced cockpit displays. This real-time data supports mission-critical applications such as navigation, surveillance, target tracking, and situational awareness, where speed, accuracy, and reliability are essential.
This is where ARINC 818-2, the industry standard Avionics Digital Video Bus (ADVB) protocol, plays a key role in enabling reliable transport of uncompressed digital video across avionics systems.
To unlock the full potential of high-speed video streams, PCIe based ARINC 818-2 frame grabbers play an important role. By combining FPGA with a high-speed PCI Express (PCIe) interface, these solutions enable real-time video acquisition, protocol decoding, Direct Memory Access (DMA), recording, visualization, and analysis. The result is faster system integration, improved development efficiency, and reliable performance for Next Gen aerospace and defense applications.
ARINC 818-2: The Trusted Standard for Aerospace Video:
ARINC 818-2 is the latest revision of the ARINC 818 standard, developed for transmitting high speed, uncompressed digital video in commercial and military aircraft. It provides high bandwidth, low latency, and deterministic performance required for mission critical applications, including cockpit displays, cameras, radar systems, infrared sensors, and surveillance platforms.
Built on a Fibre Channel based physical layer, ARINC 818-2 supports data rates from 1.0625 Gbps to 10 Gbps and uses an Interface Control Document (ICD) to define video resolution, pixel format, frame timing, and synchronization. This ensures reliable and consistent communication between connected devices.
As ARINC 818-2 continues to be adopted across modern avionics platforms, native hardware support has become essential for capturing, processing, and analyzing high-speed video streams without compromising performance or introducing additional latency
Why PCIe Matters in ARINC 818-2 Video Acquisition:
Capturing ARINC 818-2 video is only part of the process. The captured data must also be transferred quickly and reliably to the host system for display, recording, or further processing. PCI Express (PCIe) has become the preferred host interface because it provides the speed, bandwidth, and efficiency needed for real-time video applications.
Key benefits of PCIe include:
- High Bandwidth: Supports high-speed transfer of multiple ARINC 818-2 video streams.
- Low Latency: Enables fast and reliable real-time video capture and processing.
- Direct Memory Access (DMA): Transfers video data directly to system memory while reducing CPU usage.
- Easy System Integration: Compatible with COTS servers, rugged mission computers, and embedded systems.
By combining PCIe with FPGA-based ARINC 818-2 processing, Frame Grabbers can efficiently decode, capture, and transfer video streams to the host system. This architecture enables engineers to build reliable, high-performance video acquisition solutions for demanding aerospace and defense applications.
PCIe-Based ARINC 818-2 Frame Grabber Architecture:
A PCIe-based ARINC 818-2 frame grabber is designed to capture, process, and transfer high speed video efficiently. The architecture typically consists of three key functional blocks that work together to ensure reliable real-time video acquisition and data transfer.
1. ARINC 818-2 Physical and Protocol Layer:
An SFP cage (optical or 75-ohm Copper) provides the physical ARINC 818-2 connection. The FPGA implements the Fibre Channel based serial transceiver, frame synchronization, CRC/error checking, and ADVB packet decoding needed to recover raw video data and header information from the incoming bitstream, in line with iWave product description of frame grabber boards that capture video and header data across the PCIe bus.
2. Video Processing and Format Conversion:
Once frames are recovered, on board logic can convert between ARINC 818-2 and standard display formats. Frame grabbers and converter products in this category typically support bidirectional conversion between ARINC 818-2 and HDMI, allowing captured video to be viewed directly on a commercial monitor while the same stream is simultaneously made available to the host PC.
3. PCIe Host Interface and DMA Engine:
A PCIe hard IP core (commonly Gen2/Gen3, x4 or x8 depending on the design) connects the FPGA fabric to the host. A DMA engine streams captured video and metadata into host memory with minimal CPU involvement, and a software development kit typically exposes APIs, sample applications, and driver support so integrators can build acquisition, recording, or analysis software on top of the hardware quickly.
ARINC 818-2 Frame Grabber Key Highlights:
- Handles multiple resolutions and refresh rates up to UHD @30FPS or 2K @60FPS.
- PCIe Gen 3 x8 lane with a total maximum theoretical bandwidth of 64Gbps.
- Bidirectional ARINC 818-2 ↔ HDMI conversion; host PC or HDMI source can drive the ARINC 818-2 output
- ARINC 818 to HDMI and HDMI to ARINC 818 Conversion supported.
- 1x SFP connector supporting ARINC 818-2 optical or 75-ohm copper transmission
- Full-Height Half-Length PCIe form factor, suitable for integration into Host PC systems.
- Supports video node detection for applications like VLC media, OBS studios and more.
- Linux compatible operation; integrates with common video tooling and supports video node detection for applications such as VLC and OBS Studio
Key Applications:
PCIe based ARINC 818-2 frame grabbers are widely used across aerospace and defense applications that require reliable, real time video capture and processing. Common applications include:
- Cockpit and Display Systems: Capture and display video from cameras, sensors, and avionics displays.
- Avionics Testing and Validation: Verify ARINC 818-2 video streams during system development and qualification.
- Mission Recording: Capture and store high-resolution video for mission review and analysis.
- Simulation and Training: Support real-time video capture and playback in simulation environments.
- Video Format Conversion: Convert ARINC 818-2 video to standard interfaces such as HDMI for monitoring and maintenance.
How to Choose the Right ARINC 818-2 Frame Grabber:
Choosing the right ARINC 818-2 frame grabber is key to building a reliable and high -performance avionics video system. The ideal solution should not only support today’s application requirements but also provide the flexibility and reliability needed for future system upgrades. When evaluating a frame grabber, consider the following
- Link Speed and ICD Compatibility – Ensure the solution supports the required ARINC 818-2 link speeds, video resolutions, and Interface Control Document (ICD) configurations for your application.
- Rugged and Reliable Design – Choose hardware built to withstand harsh aerospace environments, with support for extended temperature operation, vibration, and shock resistance.
- Comprehensive Software Support – A complete software package, including drivers, SDKs, APIs, and sample applications, helps simplify development and accelerate system integration.
- Long Term Product Availability – Select a trusted vendor that offers long product lifecycles, lifecycle management, and ongoing technical support to ensure reliability throughout the life of your aerospace program.
By choosing a proven solution such as iWave’s ARINC 818 Frame Grabber, engineers can simplify development, reduce integration complexity, and confidently build high-performance, mission critical avionics systems. iWave’s ARINC 818 Frame Grabber is designed to meet the demanding requirements of modern avionics systems by delivering high-speed video capture, low-latency performance, and a robust software ecosystem

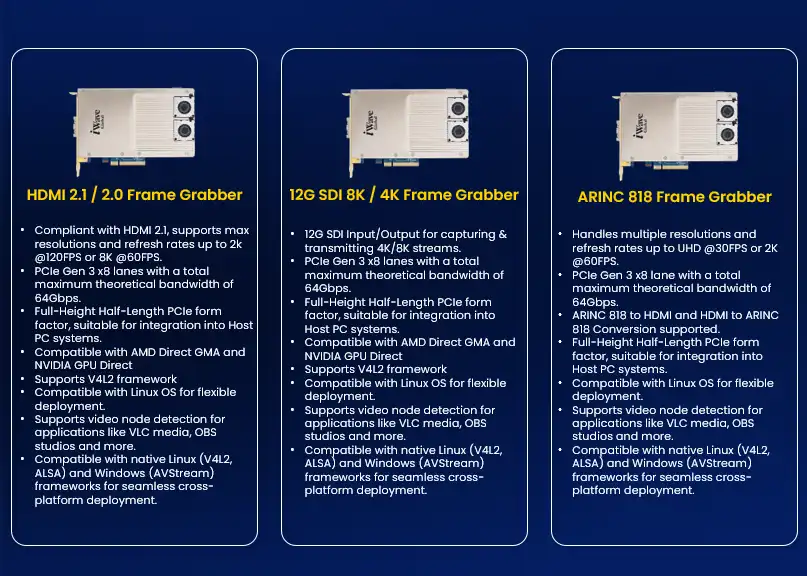

Complete Portfolio of iWave Frame Grabbers:
As aerospace and defense systems continue to evolve, the demand for high-speed, reliable video acquisition continues to grow. PCIe based ARINC 818-2 Frame Grabbers bridge the gap between avionics video systems and commercial computing platforms, enabling seamless video capture, processing, recording, and analysis with low latency and high reliability.
By combining FPGA based ARINC 818-2 protocol processing with a high performance PCIe interface, these solutions simplify system integration while delivering the performance required for mission-critical applications. Features such as real-time video acquisition, efficient DMA transfer, flexible video conversion, and comprehensive software support help engineers accelerate development and reduce integration complexity.
As ARINC 818-2 becomes the preferred standard for next-generation avionics video systems, selecting the right frame grabber is essential for building scalable, reliable, and future-ready aerospace and defense platforms. Solutions from providers such as iWave Global offer the performance, flexibility, and long-term support needed to meet the evolving demands of modern avionics application
For more information or inquiries, reach out to mktg@iwave-global.com
