Solution Highlights
- Multi-channel SDR built with ZU4EV + AD9361 + Nvidia Jetson Nano

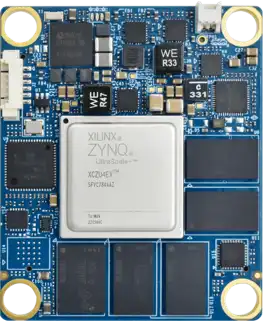

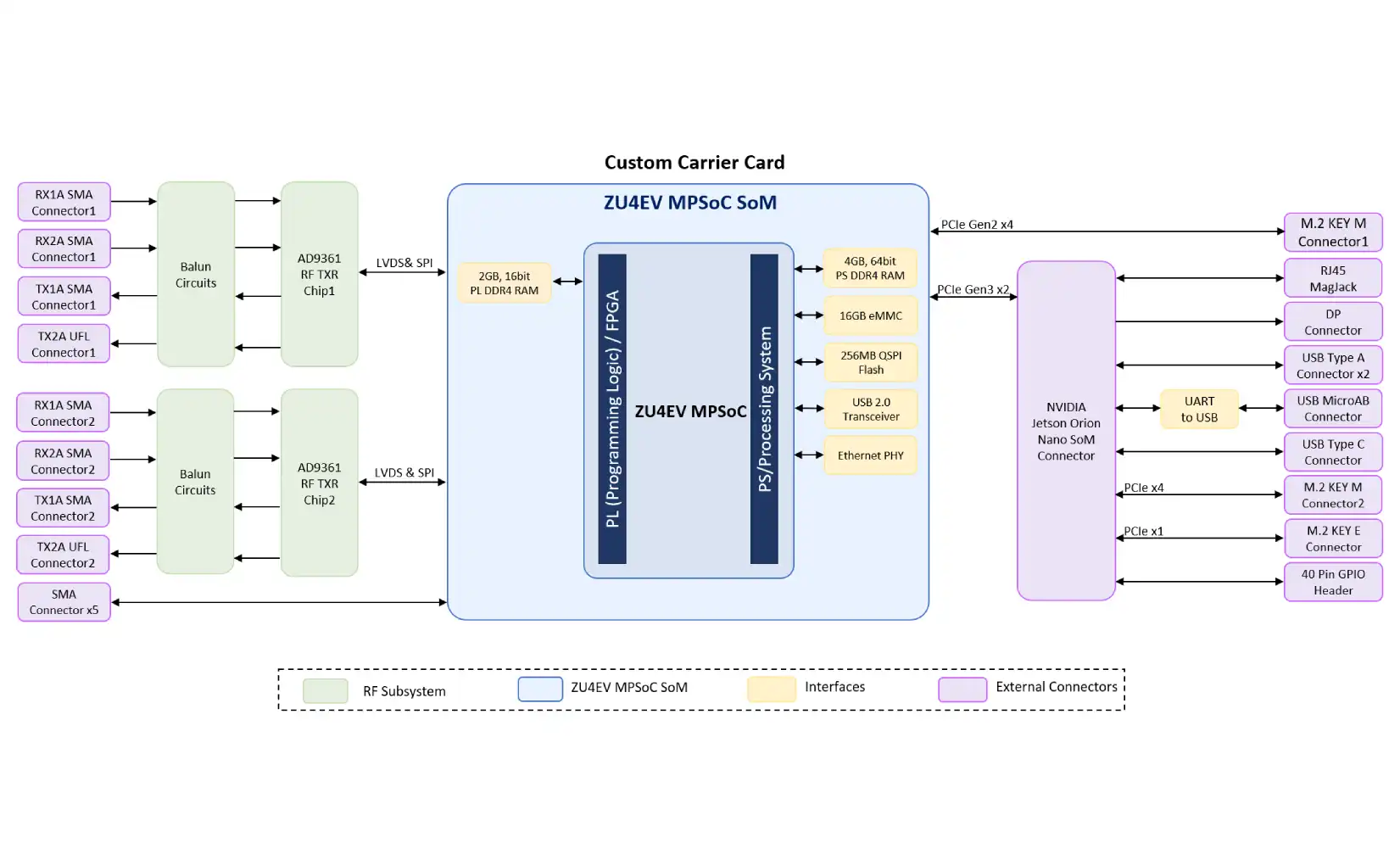

- Custom Carrier Card Design to integrate Dual AD9361 RF transceiver, ZU4EV MPSoC SoM and NVIDIA Jetson Nano SoM
- 4 RF ADC and 2 RF DAC Channels for RF Data Capture.
- Ultra-wideband performance with a frequency range of 400 MHz to 8 GHz with up to 800 MHz of instantaneous bandwidth.
- Replaced China COO components such as 16GB eMMC with different manufacturer to align with ‘Indian Government’ directives
iWave Scope of Work
Custom Carrier Design:
Developed a high-performance 8T8R SDR custom carrier card with dual AD9361 ADC/DAC chips (integrated RF transceiver chip) within 16 Weeks
FPGA, Software, BSP and System Bring-Up:
Created the ATP, performed FMCOMMS5 bring-up on a ZU4EV Devkit, and built the FPGA design. Device Tree configuration, driver porting for the new board, and Yocto customization.
Phase Sync & Validation:
Implemented phase sync code and conducted functional validation for RF using Python applications, alongside production software creation and support.
Production:
Supported the customer with production of SoM and custom carrier card within a short duration of 20 Weeks.
