Solution Highlights

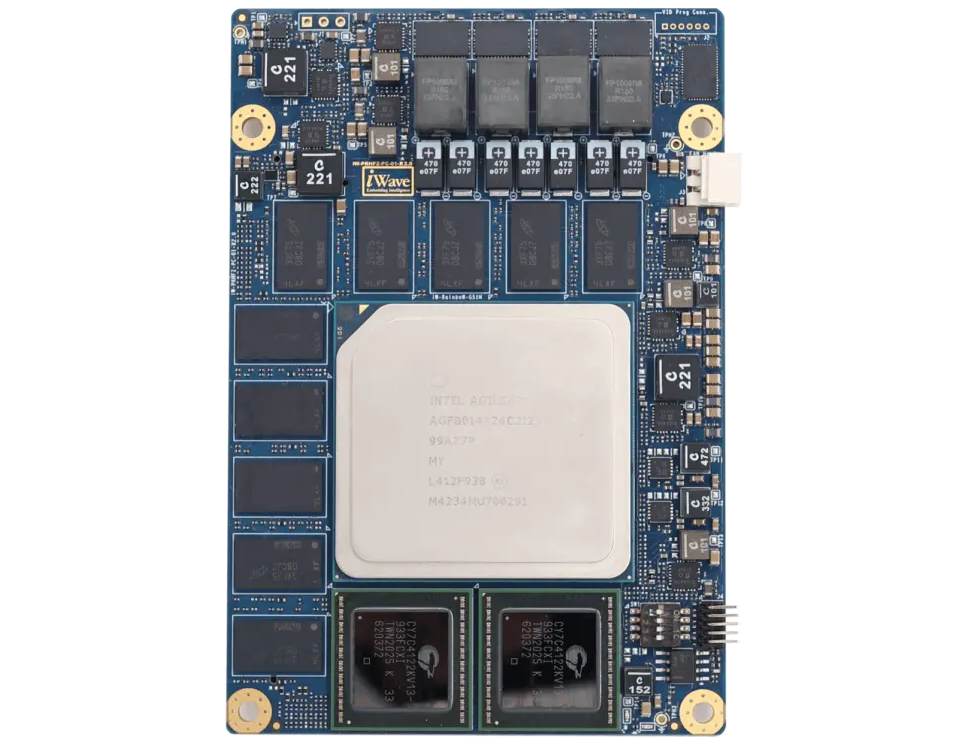

- FPGA: iG-G51M® Agilex 7 (R24C) SoC FPGA (AGF014, 2.7M logic elements)
- Optical Connectivity: 24 SFP28 ports via stacked 2×6 connectors supporting upto 25Gbps/10Gbps.
- Expansion Interfaces: M.2 PCIe connector, an SFF-8612 connector, RGMII/SGMII Ethernet
- Clock & Management: Si5518G clock jitter attenuator
- 12 x FGT transceivers up to 58Gbps
- 4 x FGT transceivers up to 32Gbps
- 16 x FGT transceivers up to 17.2Gbps
- On SoM 8GB DDR4 SDRAM (64bit + 8bit) with ECC for HPS (Expandable)
- On SoM 8GB 8GB DDR4 SDRAM (64bit + 8bit) with ECC for FPGA (Expandable)
- On SoM 32GB eMMC Flash ( Expandable)
iWave Scope of Work
Design and Manufacturing of Custom Carrier Board and SoM:

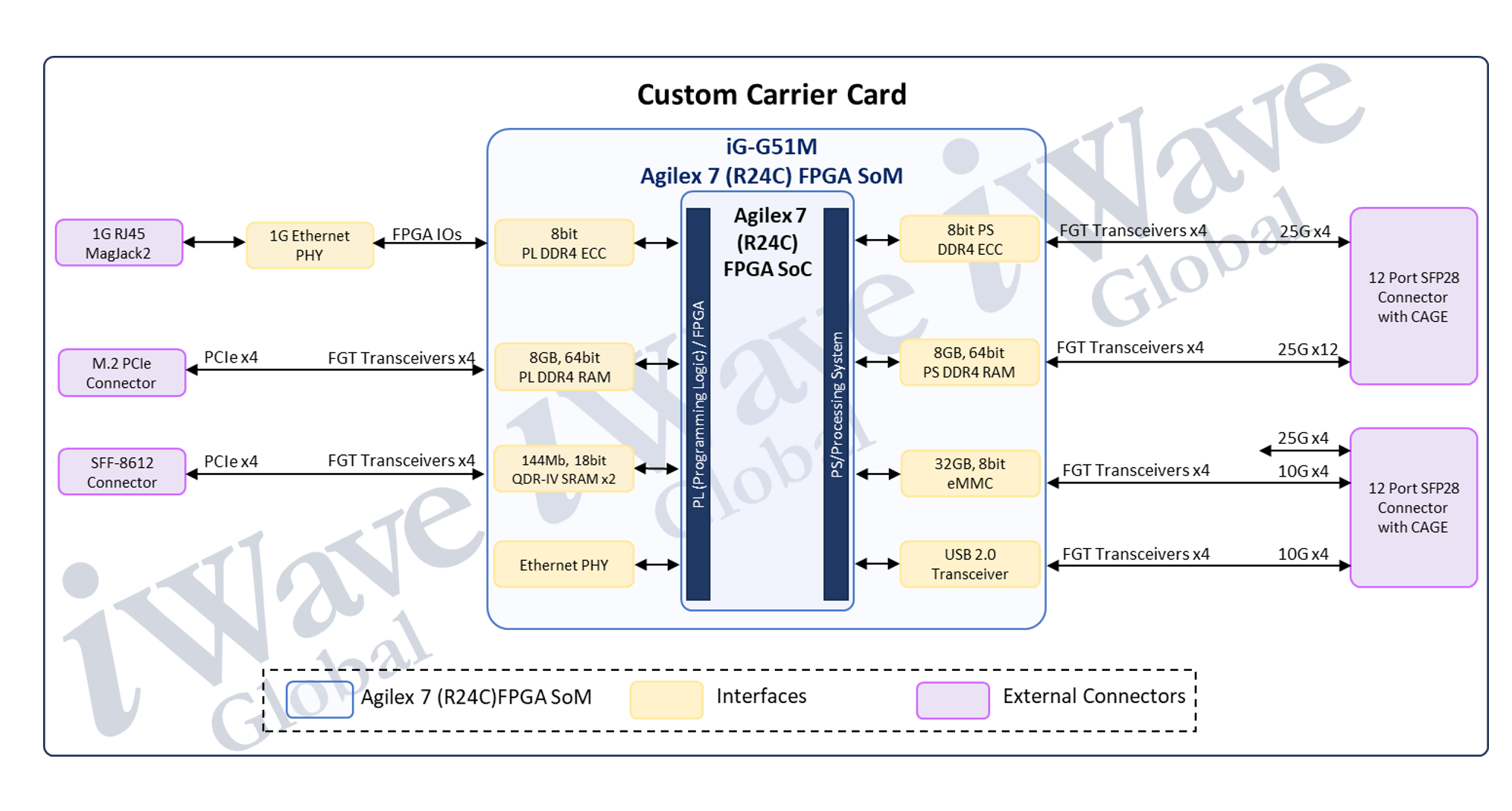

Design and validate custom carrier board with three high-speed board-to-board connectors tailored to mate with the Agilex 7 SOM.
High-Speed Transceiver Routing:
Route signals for 24 SFP28 optical ports across the FPGA’s 12A and 13A transceiver banks.
Peripherals & Debug Setup:
Integrate RJ45 Ethernet, USB Type-C for Debug (via FT4232H), JTAG headers and power connectors
Management Bus Implementation:
Configure I2C switches, IO expanders and LED drivers for SFP28 control and status monitoring.
