Solution Highlights
- Compatible with Zynq UltraScale+ ZU7/5/4 CG/EG/EV Devices
- Up to 504K Logic Cells & 230K LUTs
- 4GB DDR4 with ECC for PS, 1GB DDR4 for PL
- 8GB eMMC Flash
- 4 PS GTR Transceivers & 16 GTH Transceivers
- 2 x 240pin High Speed Connectors with 142 user IOs
iWave Scope of Work
Custom Carrier Card:

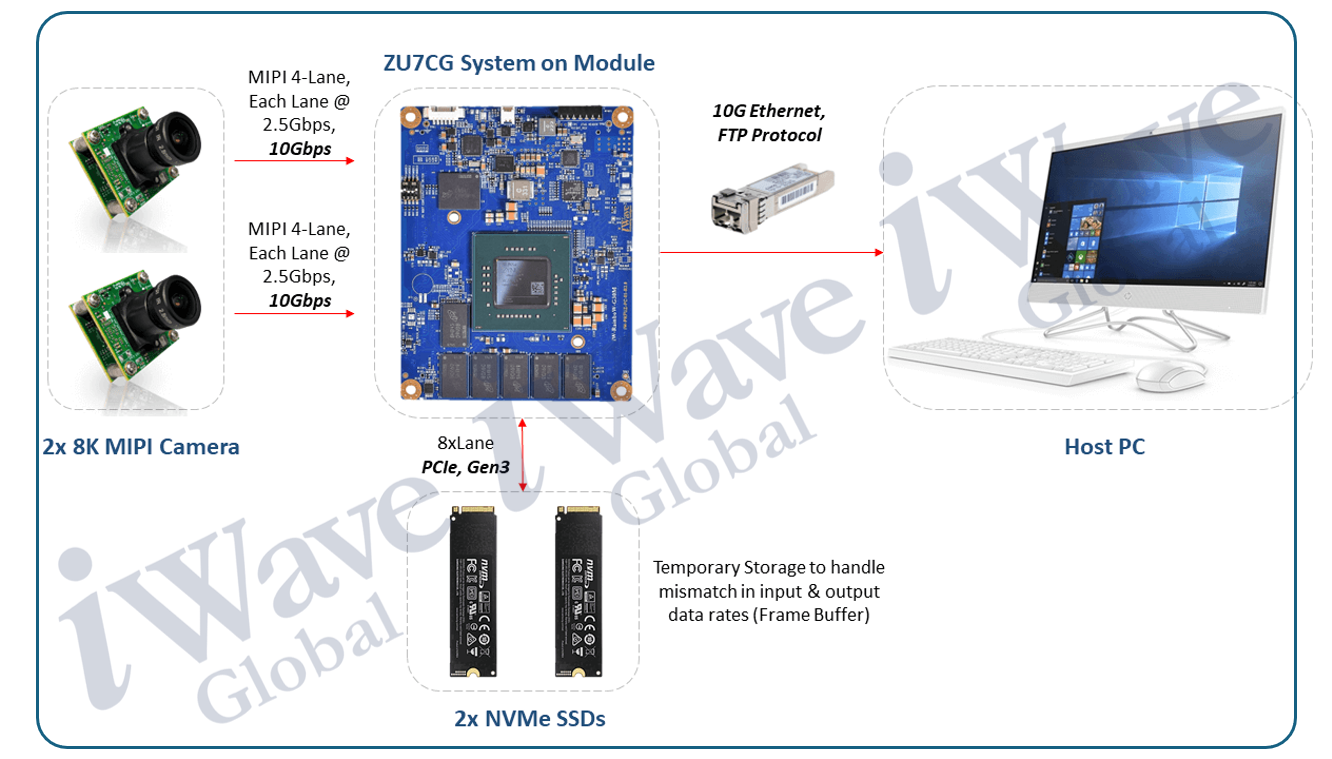

iWave designed a custom carrier card around ZU7EG Zynq UltraScale+ MPSoC having MIPI Camera interface, NVMe SSDs, 10G Ethernet interface with reduced design cycle
Seamless Data Transmission:
Enabled 10G Ethernet data transfer to the host PC via FTP for efficient image delivery and analysis.
High-Speed Image Capture & Processing application:
iWave integrated the software to capture high-resolution raw images from MIPI cameras at 10Gbps link speeds, ensuring real-time performance.
NVMe SSD Integration:
Integrated NVMe SSDs as local buffers to handle data rate mismatches, ensuring smooth storage and retrieval of large image files.
BSP Support:
Petalinux development and lifecycle support
