Solution Highlights

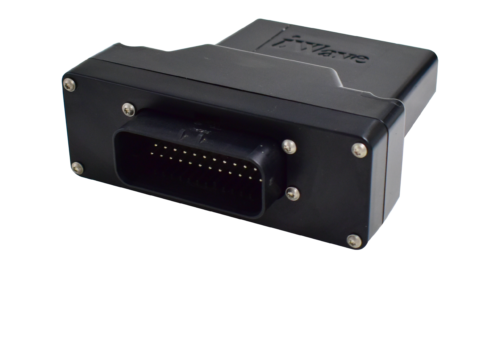

- Event Data Recorder Solution with UNECE R169 Compliance
- CE Certified, and qualified to high vibration and shock impact standards
- High-Speed CAN monitoring with secure time stamped logging
- IMU Sensors to determine speed, acceleration, orientation (roll, pitch, yaw), and collision angles
- Configurable Pre-Event and Post-Event recording

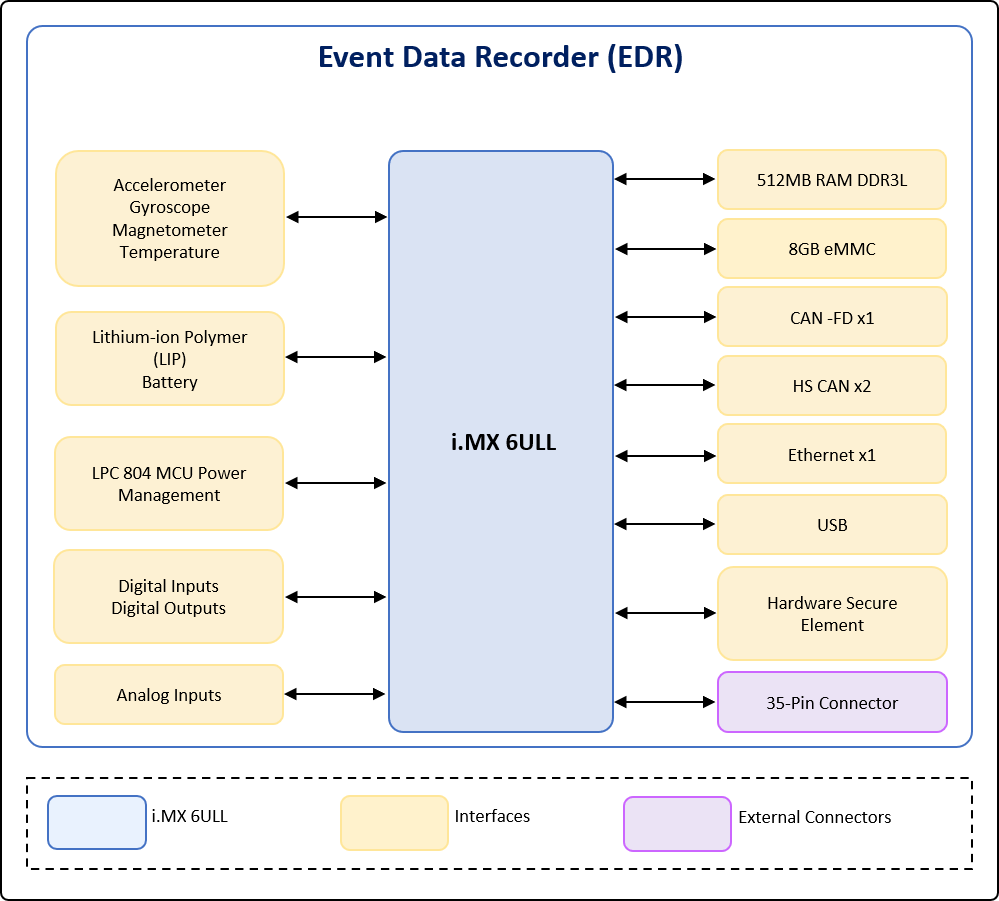

- Powerful processor core with 512MB DDR3 RAM and 8GB eMMC Flash
iWave Scope of Work
Rugged Hardware Design and Production
Develop an IP67 rugged, non-RF telematics device with an IMU and triple CAN interfaces, validated via ARAI mechanical shock testing for UNECE R100 compliance
Sensor APIs & Orientation
Provide APIs for high-frequency IMU sampling, calibrated motion data, and axis remapping for flexible mounting and UNECE R169 trigger detection
CAN Data Retrieval
Enable flexible retrieval of stored event data through any of the three available CAN interfaces
Qualification and Certification
Qualified the solution to the harsh vibration, shock and environmental requirements as per the standard, with CE and E-Mark Certification
