Solution Highlights
- ZU49DR (-1 Speed) System on Module
- Also supports ZU39/29DR and ZU48/47/43/28/27/25DR RFSoC Variants
- 8GB DDR4 RAM for PS with ECC, 8GB DDR4 RAM for PL
- 16 x ADC up to 2.5Gsps, 16 x DAC up to 9.85Gsps
- 16 x PL GTY High Speed Transceivers at up to 28.21Gbps
- 4 x PS GTR High Speed Transceivers at up to 6Gbps
- Up to 188 PL IOs
iWave Scope of Work
ZU49DR RFSoC SoM Production:
Delivered a production ready RFSoC SoM optimized for high-performance RF

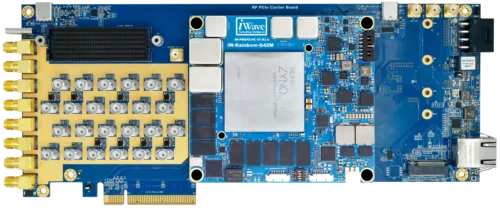

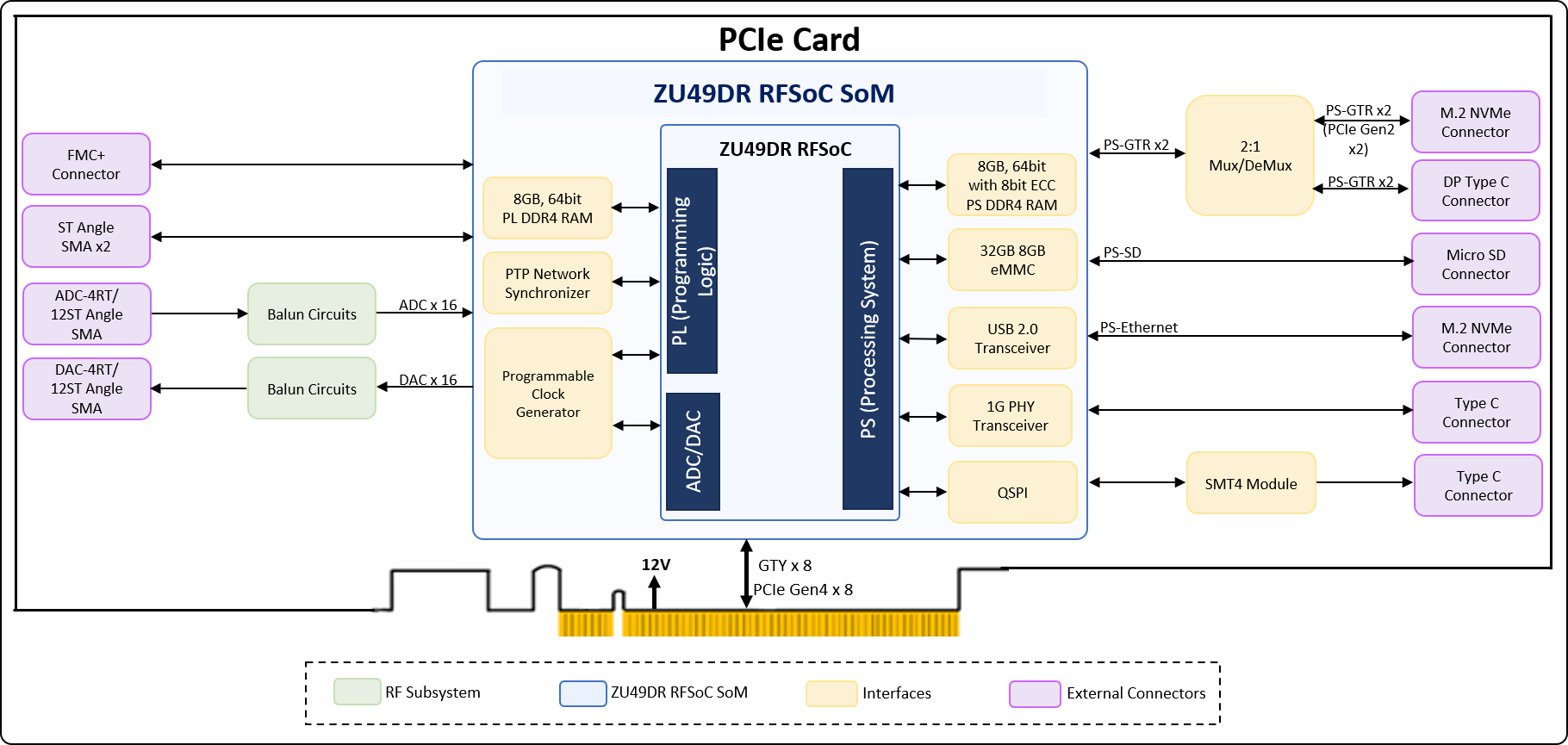

PCIe ADC-DAC Card in Industrial Grade and Production Version:
Production PCIe card with high-speed RF interfaces, enabling direct connectivity with photonic hardware
Software & BSP Support:
Delivered comprehensive BSP, drivers, and long-term software maintenance
ODM Engagement:
Supported the customer in tailoring thermal, mechanical, and RF performance
Ready to Build Your Next-Gen Solutions with iWave
